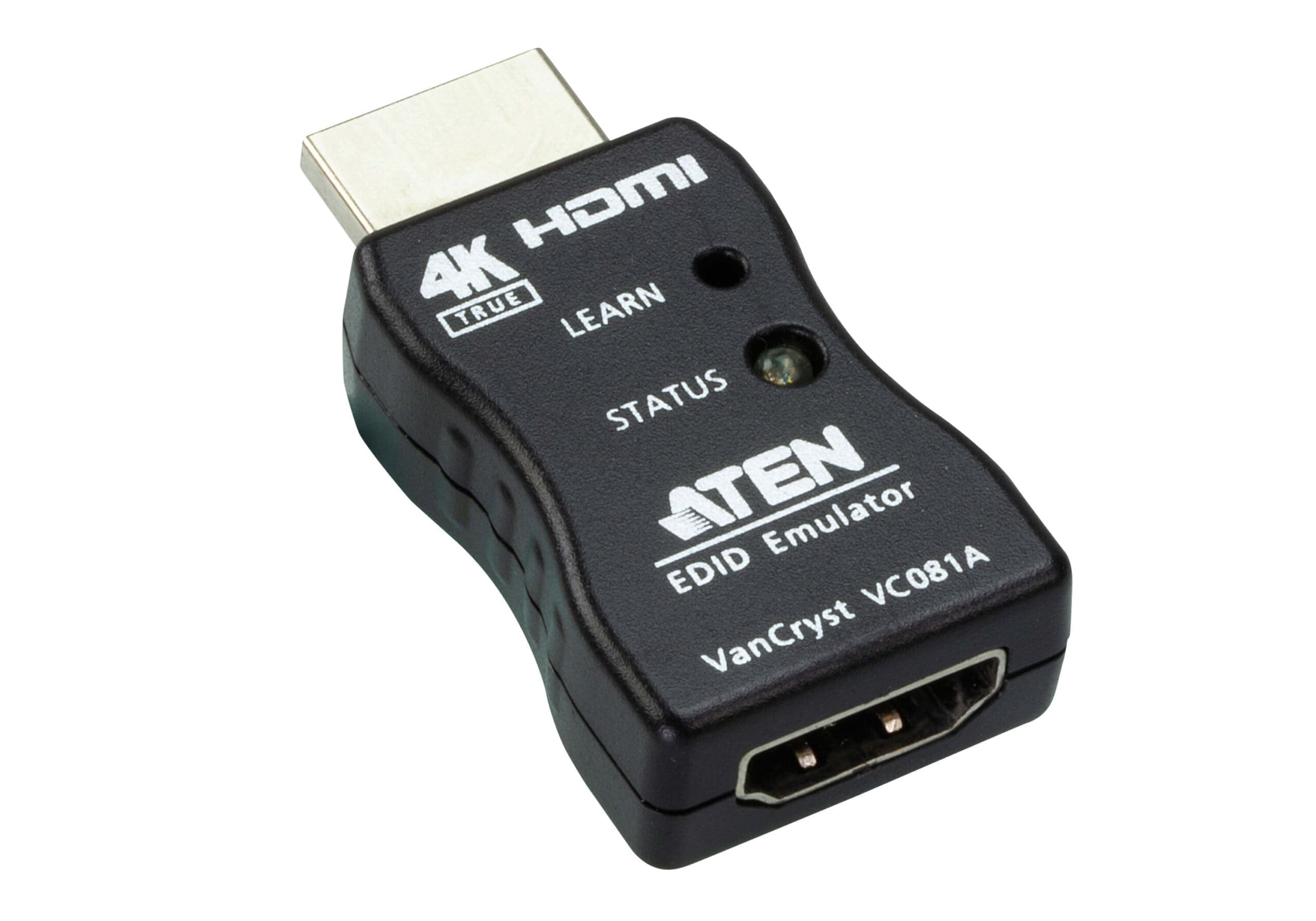

ATEN True 4K HDMI EDID Emulator Adapter

Part No:
VC081A
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Be quick, last one left in stock!
1 in stock.

True 4K HDMI EDID Emulator Adapter

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VC081A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

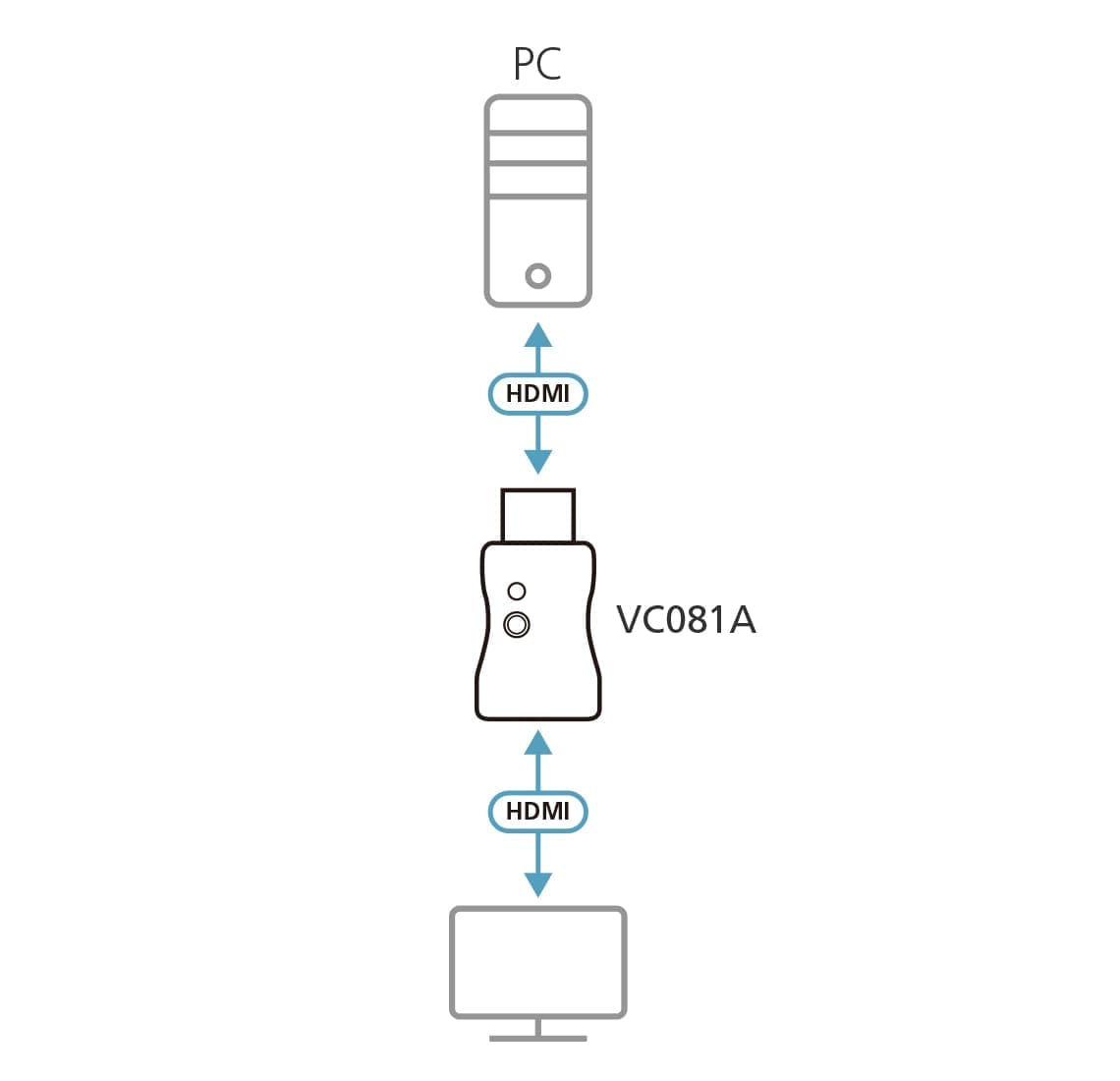

As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.

This new member contains a unique “Learn Button Switch” to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.

Feature Feature Value
Maximum video resolution 3840 x 2160 pixels
Consumer Electronics Control (CEC) support Yes
Product colour Black
Housing material Plastic
LED indicators Yes
Video port type HDMI
Number of video inputs 1
Number of video outputs 1
HDCP Yes
Products per master (outer) case 20 pc(s)
Master (outer) case gross weight 1.64 kg
Master (outer) case length 260 mm
Master (outer) case width 245 mm
Master (outer) case height 285 mm
Master (outer) case net weight 160 g
Quick start guide Yes
Width 44 mm
Depth 24 mm
Height 11.8 mm
Weight 8 g
Package width 42 mm
Package depth 124 mm
Package height 129 mm
Package weight 82 g

Additional information

Maximum video resolution

3840 x 2160 pixels
Product colour

Black
LED indicators

Yes
Number of video inputs

1
HDCP

Yes
Master (outer) case width

245 mm
Width

44 mm
Height

11.8 mm
Package width

42 mm
Package height

129 mm
Housing material

Plastic
Video port type

HDMI
Number of video outputs

1
Master (outer) case length

260 mm
Master (outer) case height

285 mm
Quick start guide

Yes
Depth

24 mm
Weight

8 g
Package depth

124 mm
Package weight

82 g

Brand

Aten
