Description

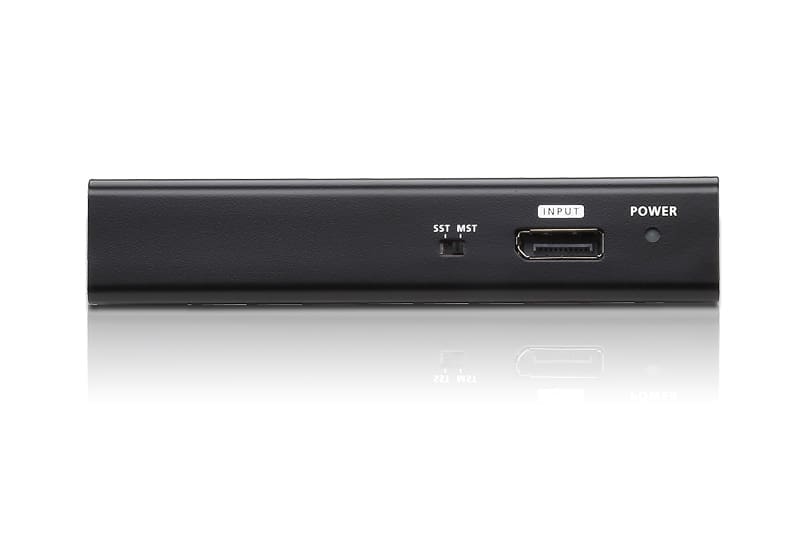

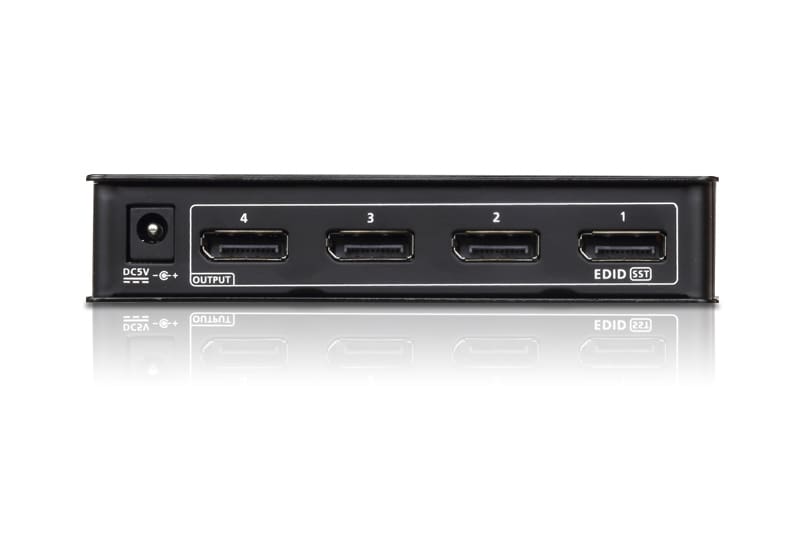

The VS194 4-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS194 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.
1x VS194 4-port True 4K DisplayPort Splitter
1x 0AD6-1005-26EG Power Adapter
1x User Instructions

Feature Feature Value
Video ports quantity 4
Video port type DisplayPort
Video out 4x DisplayPort
DC-in jack Yes
Maximum resolution 4096 x 2160 pixels
Product colour Black
Housing material Metal
HD type 4K Ultra HD
HDCP version 1.3
HDCP Yes
LED indicators Yes
Power consumption (typical) 3.36 W
Width 80 mm
Depth 125 mm
Height 25 mm
Weight 420 g
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 600 g
Manual Yes
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Storage relative humidity (H-H) 0 – 80%
Master (outer) case net weight 8.4 kg
Harmonized System (HS) code 85176990
Master (outer) case width 315 mm
Master (outer) case length 490 mm
Master (outer) case height 338 mm
Master (outer) case gross weight 13.2 kg
Products per master (outer) case 20 pc(s)

Additional information

Video ports quantity

4
Video out

4x DisplayPort
Maximum resolution

4096 x 2160 pixels
Housing material

Metal
HDCP version

1.3
LED indicators

Yes
Width

80 mm
Height

25 mm
Package width

59 mm
Package height

160 mm
Manual

Yes
Storage temperature (T-T)

-20 – 60 °C
Master (outer) case width

315 mm
Master (outer) case height

338 mm
Video port type

DisplayPort
DC-in jack

Yes
Product colour

Black
HD type

4K Ultra HD
HDCP

Yes
Power consumption (typical)

3.36 W
Depth

125 mm
Weight

420 g
Package depth

239 mm
Package weight

600 g
Operating temperature (T-T)

0 – 40 °C
Harmonized System (HS) code

85176990
Master (outer) case length

490 mm

Brand

Aten
