Description

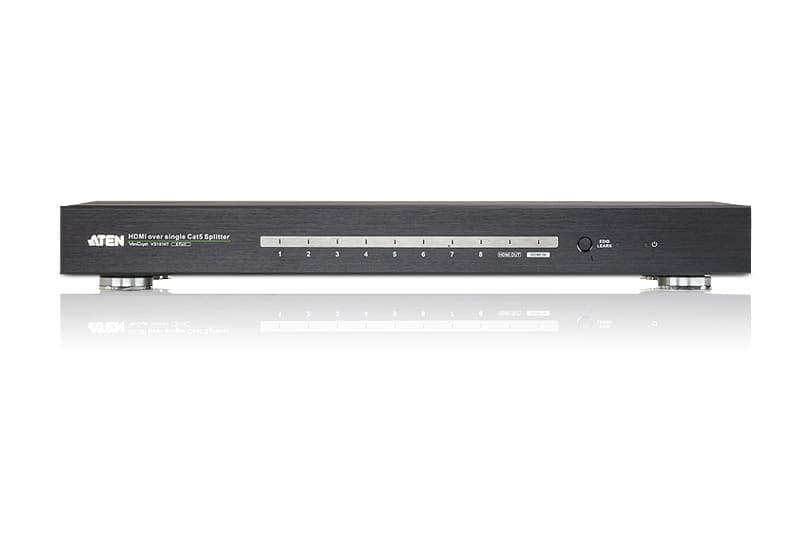

The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Compatible with ATEN HDBaseT/HDBaseT-Lite Receiver Unit.
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
– In-store or tradeshow digital signage
– Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
– Sporting events
– Theater and lecture overview rooms
– Classroom and company training facilities
| Feature |
Feature Value |
| Video ports quantity |
2 |
| Video port type |
HDMI |
| Video out |
HDMI |
| Ethernet LAN (RJ-45) ports |
8 |
| Serial ports quantity |
1 |
| Consumer Electronics Control (CEC) support |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Black |
| Housing material |
Metal |
| HD type |
4K Ultra HD |
| 3D |
Yes |
| Maximum operating distance |
100 m |
| Maximum refresh rate |
60 Hz |
| Bandwidth |
340 MHz |
| Rack mounting |
Yes |
| HDCP |
Yes |
| Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
| Cable types supported |
Cat5, Cat5e, Cat6 |
| AC input voltage |
110/220 V |
| Power consumption (typical) |
31.7 W |
| Width |
261.1 mm |
| Depth |
437.2 mm |
| Height |
44 mm |
| Weight |
3.9 kg |
| Quantity per pack |
1 pc(s) |
| Package width |
338 mm |
| Package depth |
515 mm |
| Package height |
155 mm |
| Package weight |
5.26 kg |
| Manual |
Yes |
| Cables included |
AC |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Master (outer) case net weight |
3.9 kg |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case width |
338 mm |
| Master (outer) case length |
515 mm |
| Master (outer) case height |
155 mm |
| Master (outer) case gross weight |
5.26 kg |
| Products per master (outer) case |
1 pc(s) |
