ATEN 8-Port VGA Video Splitter (300 MHz)

Part No:
VS98A
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Be quick, last one left in stock!
1 in stock.

VS98A-AT-E

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VS98A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

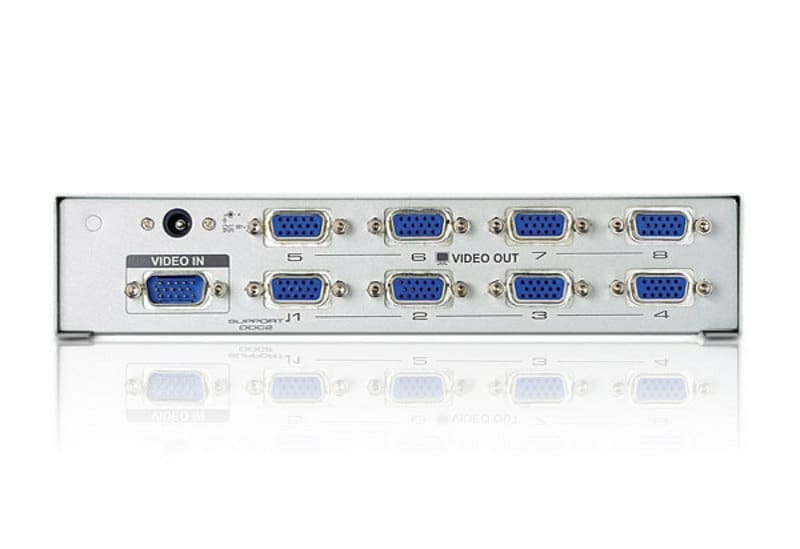

The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

Feature Feature Value
Video ports quantity 9
Video port type VGA
Video out 8x VGA
DC-in jack Yes
Maximum resolution 1920 x 1440 pixels
Product colour Silver
Housing material Metal
Maximum operating distance 30 m
Maximum refresh rate 60 Hz
Bandwidth 300 MHz
LED indicators Power
AC input voltage 9 V
Power consumption (typical) 5 W
Width 75.1 mm
Depth 200 mm
Height 44 mm
Weight 750 g
Quantity per pack 1 pc(s)
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 910 g
Manual Yes
AC adapter included Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Master (outer) case net weight 15 kg
Harmonized System (HS) code 85176990
Master (outer) case width 315 mm
Master (outer) case length 490 mm
Master (outer) case height 338 mm
Master (outer) case gross weight 19.4 kg
Products per master (outer) case 20 pc(s)

Additional information

Video ports quantity

9
Video out

8x VGA
Maximum resolution

1920 x 1440 pixels
Housing material

Metal
Maximum refresh rate

60 Hz
LED indicators

Power
Power consumption (typical)

5 W
Depth

200 mm
Weight

750 g
Package width

59 mm
Package height

160 mm
Manual

Yes
Operating temperature (T-T)

0 – 50 °C
Harmonized System (HS) code

85176990
Master (outer) case length

490 mm
Video port type

VGA
DC-in jack

Yes
Product colour

Silver
Maximum operating distance

30 m
Bandwidth

300 MHz
AC input voltage

9 V
Width

75.1 mm
Height

44 mm
Quantity per pack

1 pc(s)
Package depth

239 mm
Package weight

910 g
AC adapter included

Yes
Storage temperature (T-T)

-20 – 60 °C
Master (outer) case width

315 mm
Master (outer) case height

338 mm

Brand

Aten
