Description
Features
– Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
– Fully compliant with DVI-Digital and DVI-Analog.
– Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
– Speaker enabled for audio enjoyment.
– Cascadable to 3 levels – provides up to 64 video signals.
– Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
– Installs in minutes.
– Maintains highest single link video resolution (up to 1920 x 1200).
– DDC, DDC2, DDC2B Compatible (Port 1 only).
– HDCP Compliant.
– OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Package Contents

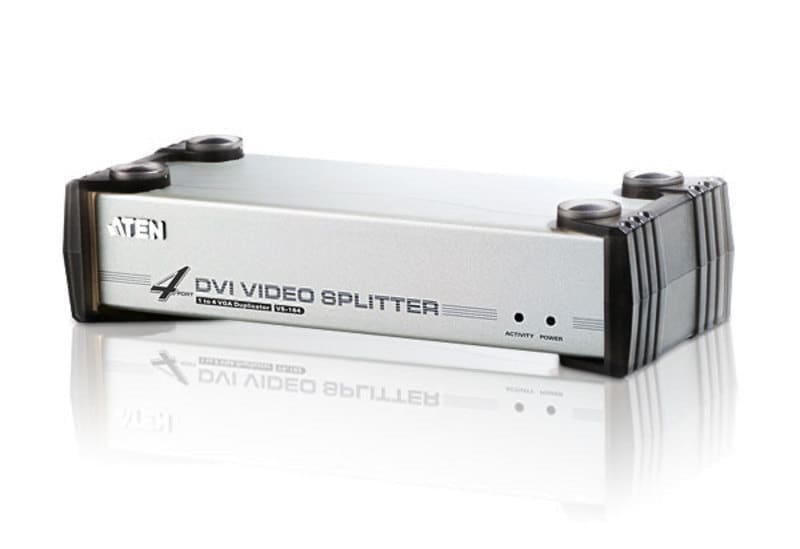

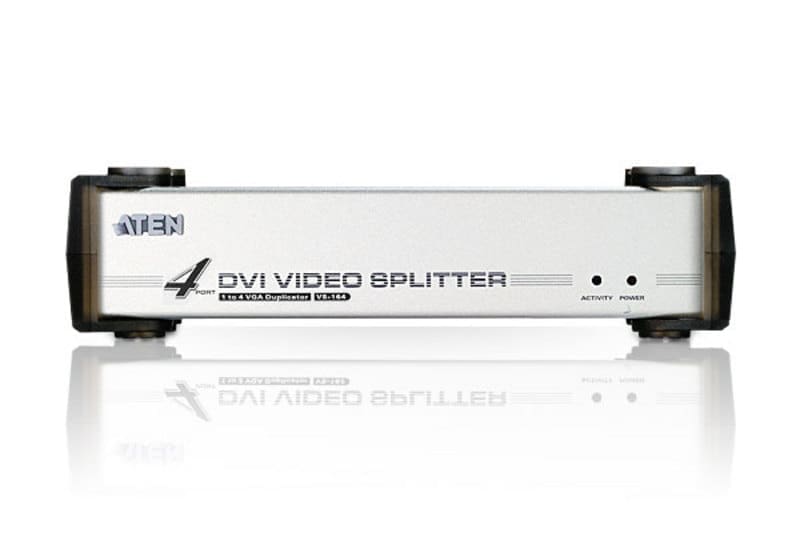

– 1x 4-Port DVI Video Splitter
– 1x 0AD6-1605-24EG Power Adapter
– 1x User Instructions
| Feature |
Feature Value |
| Video ports quantity |
5 |
| Video port type |
DVI |

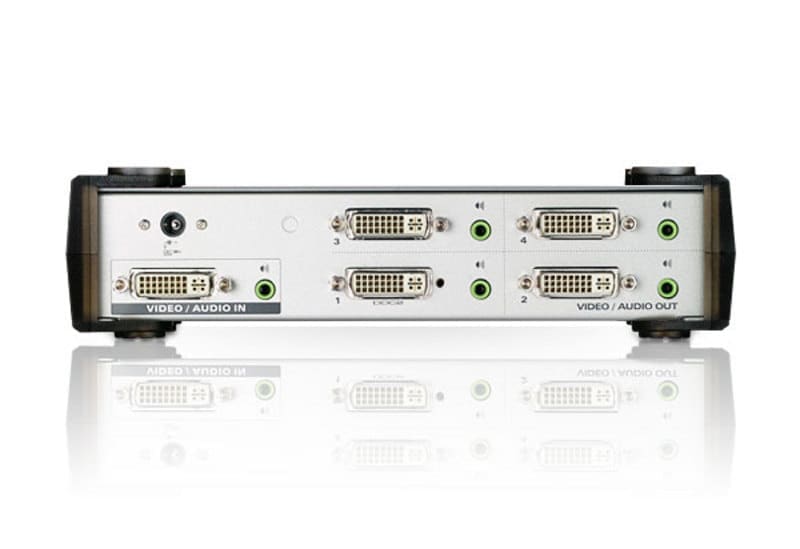

| Video out |
4x DVI-I |
| Video in |
1 x DVI-I Female |
| Audio ports quantity |
5 |
| Connector(s) |
4 |
| DC-in jack |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Product colour |
Black, Silver |
| Housing material |
Metal |
| Full HD |
Yes |
| Maximum operating distance |
5 m |
| Bandwidth |
255 MHz |
| Rack mounting |
Yes |
| HDCP |
Yes |
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |
| Power LED |
Yes |
| LED indicators |
Link, Power |
| Mac compatibility |
Yes |
| Ethernet LAN |
No |
| Output voltage |
5.3 V |
| Power consumption (typical) |
4 W |
| USB powered |
No |
| Dimensions (WxDxH) |
210 x 88 x 55 mm |
| Weight |
720 g |
| Package type |
Box |
| Cables included |
DC |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Audio input |
1 |
| Audio output |
4 |
| Resolution |
1920 x 120 pixels |
| Connector type |
DVI-I Female |
| Number of connectors |
4 |
| Maximum cable length |
5 m |
| Cascadable |
Yes |
| Maximum video resolution |
1920 x 1200 pixels |
| Exterior material |
Plastic |
| Harmonized System (HS) code |
85176990 |
