ATEN VS1828KIT-AT-G video splitter HDMI 2x HDMI
Lock Added: N/A
8 Port 4K HDMI Cat6 Splitter + Rx
Non-Returnable*
Related products
Description

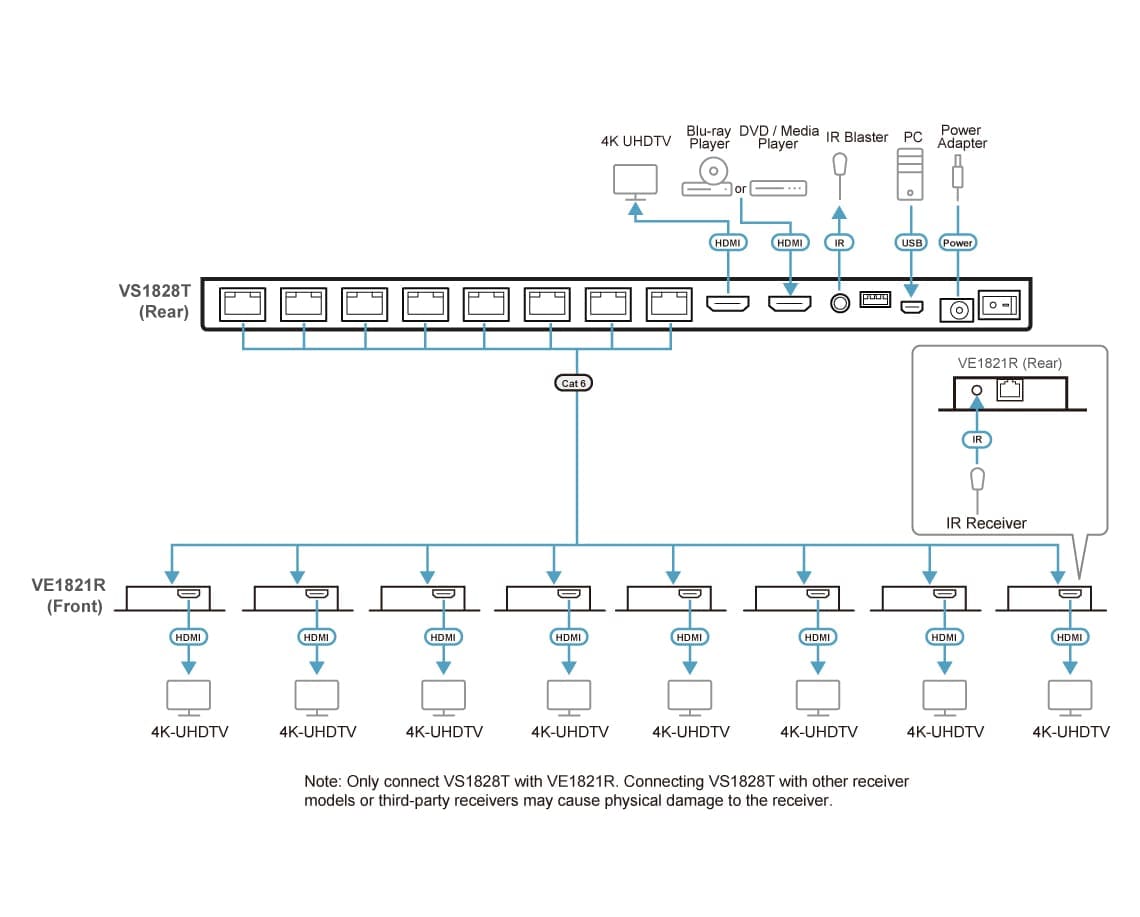

The VS1828KIT is a kit that includes 1 splitter and 8 receivers, distributing an HDMI source at up to 4K @ 30 Hz (4:4:4) to 8 displays up to 40m away via a single Cat 6 cable. The system also supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio. Only one power adapter for the splitter is needed as a result of the receivers being powered by the splitter thanks to the Power over Cable (PoC) functionality, which also helps avoid cluttered cable installation. An HDMI local output port is built on the splitter for content monitoring or cascading purposes. Moreover, the splitter contains a user-adjustable EDID switch, enabling users to configure the output video resolutions and audio capabilities for seamless integration across the system. The receiver’s ultra lightweight, palm-sized enclosure ensures flexible installation including mounting and placement in tight spaces.
The kit comes with 1 IR blaster cable for the splitter and 8 IR receiver cables for receivers, allowing users to remotely control the source device from the receiver side. With plug-and-play operation, no software is required, enabling easy, immediate installation. The VS1828KIT delivers excellent AV transmission quality and installation flexibility within different installation scenarios, from meeting facilities, retail settings, showrooms, entertainment systems, and more.
| Feature | Feature Value |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| Ethernet LAN (RJ-45) ports | 10 |
| Audio ports quantity | 3 |
| DC-in jack | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Housing material | Metal |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum operating distance | 3 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 340 MHz |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Yes |
| Data transfer rate | 10.2 Gbit/s |
| HDCP | Yes |
| Power consumption (typical) | 19.2 W |
| Quantity per pack | 9 pc(s) |
| Package width | 360 mm |
| Package depth | 236 mm |
| Package height | 143 mm |
| Package weight | 2.3 kg |
| Cables included | IR |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Master (outer) case net weight | 6.15 kg |
| Harmonized System (HS) code | 85437090 |
| Master (outer) case width | 402 mm |
| Master (outer) case length | 477 mm |
| Master (outer) case height | 287 mm |
| Master (outer) case gross weight | 7.5 kg |
| Country of origin | China |
Additional information
| Video ports quantity | 3 |
|---|---|
| Video out | 2x HDMI |
| Audio ports quantity | 3 |
| Maximum resolution | 4096 x 2160 pixels |
| Housing material | Metal |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4 |
| Data transfer rate | 10.2 Gbit/s |
| Power consumption (typical) | 19.2 W |
| Package width | 360 mm |
| Package height | 143 mm |
| Cables included | IR |
| Storage temperature (T-T) | -20 – 60 °C |
| Master (outer) case width | 402 mm |
| Master (outer) case height | 287 mm |
| Country of origin | China |
| Video port type | HDMI |
| Ethernet LAN (RJ-45) ports | 10 |
| DC-in jack | Yes |
| Product colour | Black |
| HD type | 4K Ultra HD |
| Maximum operating distance | 3 m |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Quantity per pack | 9 pc(s) |
| Package depth | 236 mm |
| Package weight | 2.3 kg |
| Operating temperature (T-T) | 0 – 40 °C |
| Harmonized System (HS) code | 85437090 |
| Master (outer) case length | 477 mm |
