Description
LG UHD Signage Provides Information Effectively

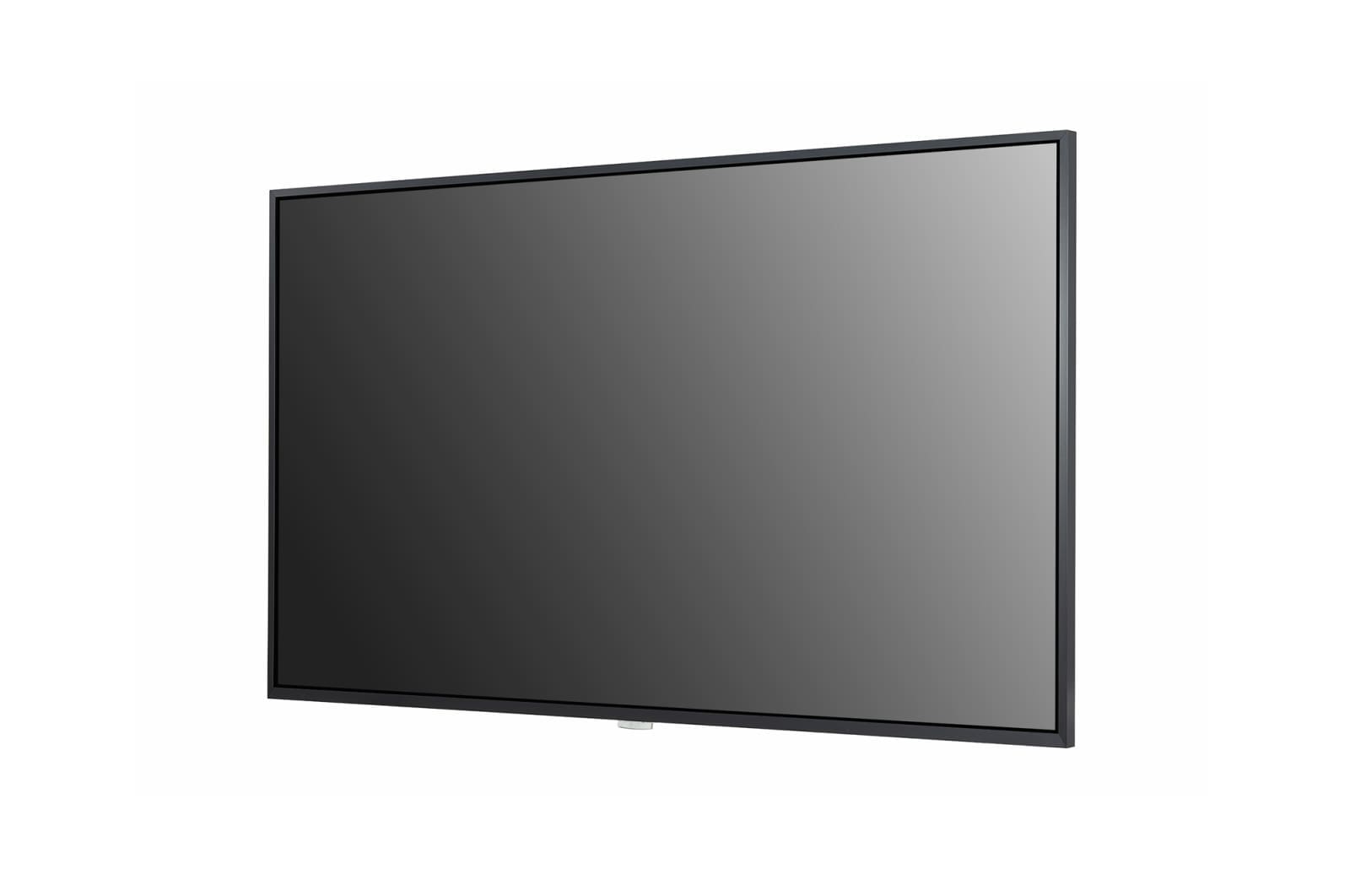

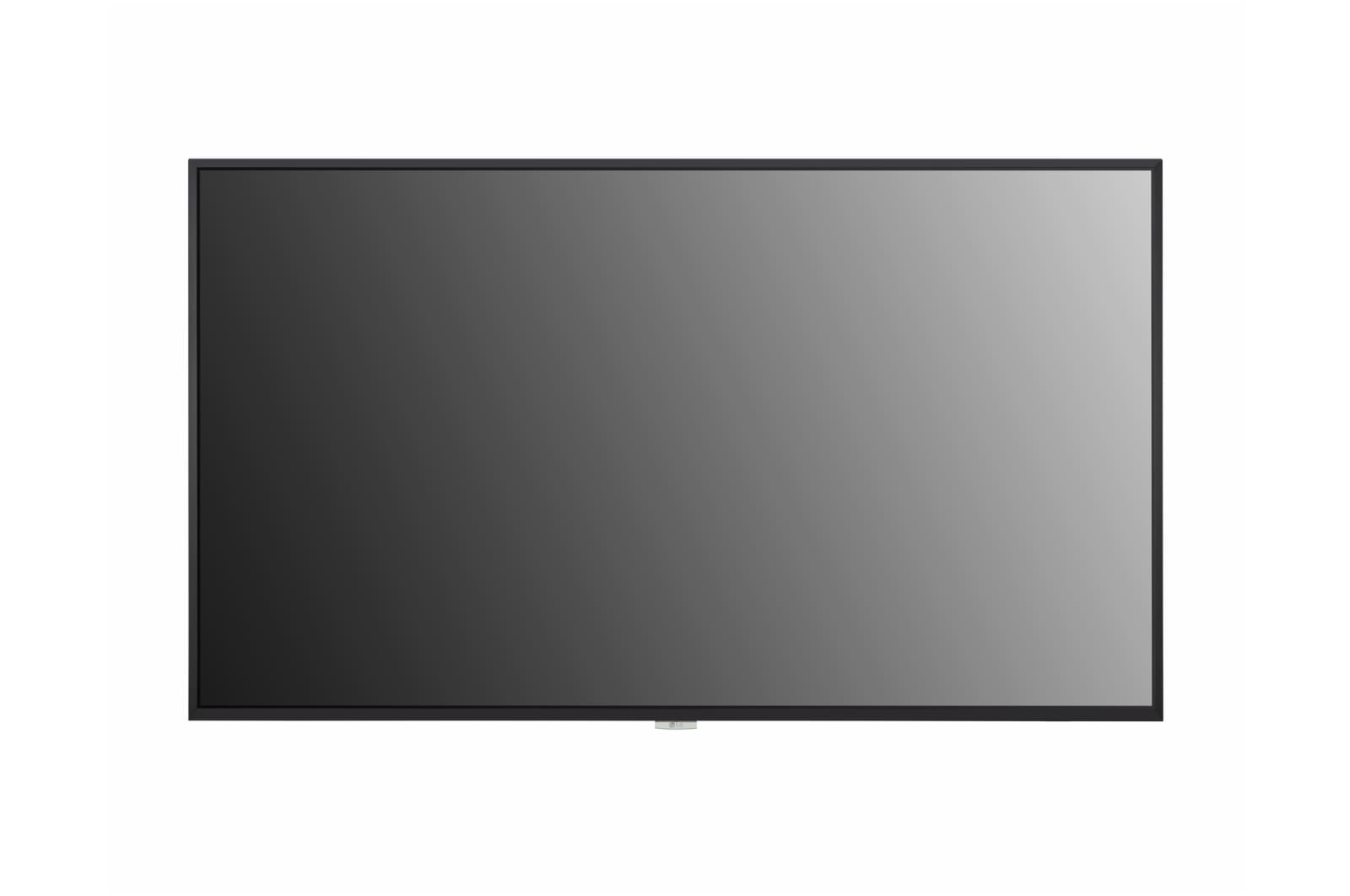

The UH7F series is a UHD signage that has been optimized for various indoor environments. It features superior UHD quality, slim design, external dust protection, and various convenience for users.
ULTRA HD Resolution
UHD resolution is 4 times higher than FHD, which makes the color and details of the contents more vivid and realistic. In addition, the IPS Panel allows for wider viewing angles and provides clearer content with no distortion.
High Efficiency Video Coding
The UH7F series supports High Efficiency Video Coding (HEVC) which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.

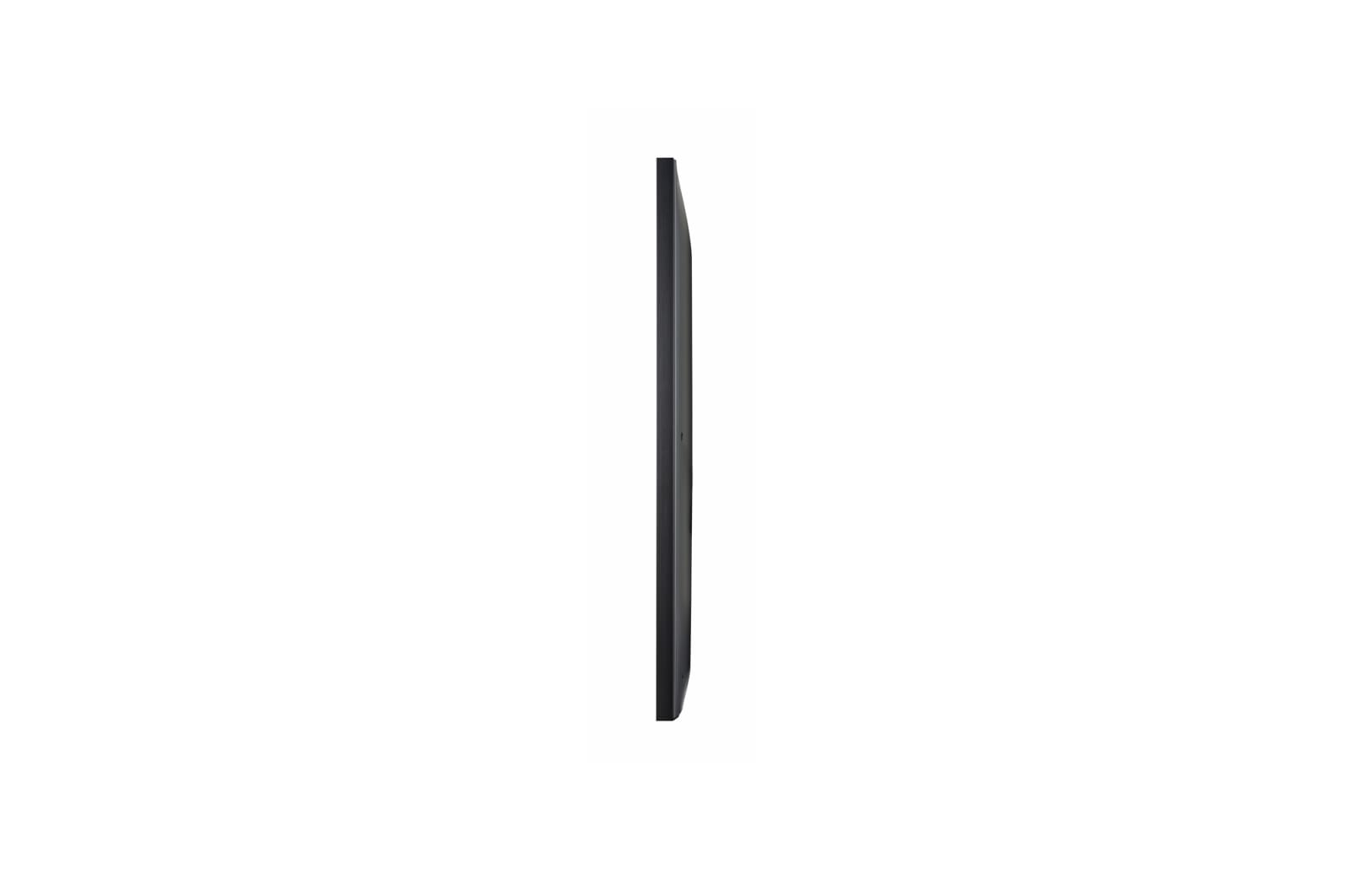

Narrow Bezel & Slim Depth
The UH7F series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Detachable Logo and Built-in Speaker
The UH7F series contents will be enriched with sound effects from built-in speakers. The LG logo on this display series is transparent and removable, giving flexibility for installation.
IP5x Certified Design
The UH7F series is IP5x Dust-Proof Certified which ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
30° Tilting Installation
When a display is installed at high places, it is usually tilted for the user’s comfort viewing. In consideration of this, the UH7F series supports the installation with 30 degrees of tilt*.
* Tilt installation of up to 30 degrees facedown is supported.(in conditions within 30°C temperature, 50% humidity)
Auto Screen Rotation
The UH7F series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn’t required. The direction of the on-screen display and background contents will be set when you turn on a display for the first time.
Fine Adjustment
The UH7F series is equipped with a “horizontal sensor” which shows users the degree of tilt the display has, allowing for precise installation.
Remote Monitoring
With remote monitoring, the UH7F series can email notification to the user when there is a problem, such as tilting from external impact. The user is able to operate the product in a safer manner and get information quickly when a problem arises.
Simple Accessibility
Unlike previous models where various buttons have to be pressed for control, the UH7F series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.
Compatibility with AV Control System
The UH7F series displays have been certified Crestron Connected® for high compatibility with professional AV controls. This helps to achieve seamless integration and automated control, boosting business management efficiency.
Compatibility with Video Conference System
For the optimal visual meeting, the UH7F series has certified its compatibility with Cisco System. They offer powerful, integrated control for a smarter video conference, making meeting set up easier and faster.
| Feature |
Feature Value |
| Display diagonal |
139.7 cm (55″) |
| Display technology |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
700 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1100:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
139 cm |
| Panel life |
50000 h |
| HDMI ports quantity |
3 |
| DVI port |
Yes |
| DisplayPorts quantity |
2 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| HDMI version |
2.0 |
| HDMI input ports quantity |
3 |
| DVI-D ports quantity |
1 |
| VGA (D-Sub) input ports |
0 |
| DisplayPorts in |
1 |
| DisplayPorts out |
1 |
| USB ports quantity |
1 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of speaker outputs |
1 |
| RS-232C |
Yes |
| Built-in speaker(s) |
Yes |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.44 cm |
| Bezel width (side) |
9.9 mm |
| Bezel width (top) |
9.9 mm |
| Purpose |
Universal |
| Picture-in-Picture |
Yes |
| On Screen Display (OSD) |
Yes |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X |
| Power consumption (typical) |
109 W |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
135 kWh |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Energy efficiency scale |
A to G |
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Internal memory |
8 GB |
| Operating system installed |
WebOS |
| Width |
1234.4 mm |
| Depth |
39.9 mm |
| Height |
720.9 mm |
| Weight |
19 kg |
| Package width |
1360 mm |
| Package depth |
175 mm |
| Package height |
835 mm |
| Package weight |
24.2 kg |
| Remote control included |
Yes |
| Cables included |
AC, HDMI, RS-232 |
| Tilt adjustment |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 80% |
| Sustainability certificates |
ENERGY STAR |
| Manual |
Yes |
| Tilt angle range |
0 – 30° |
