Description
Clear Color Expression of UHD Content

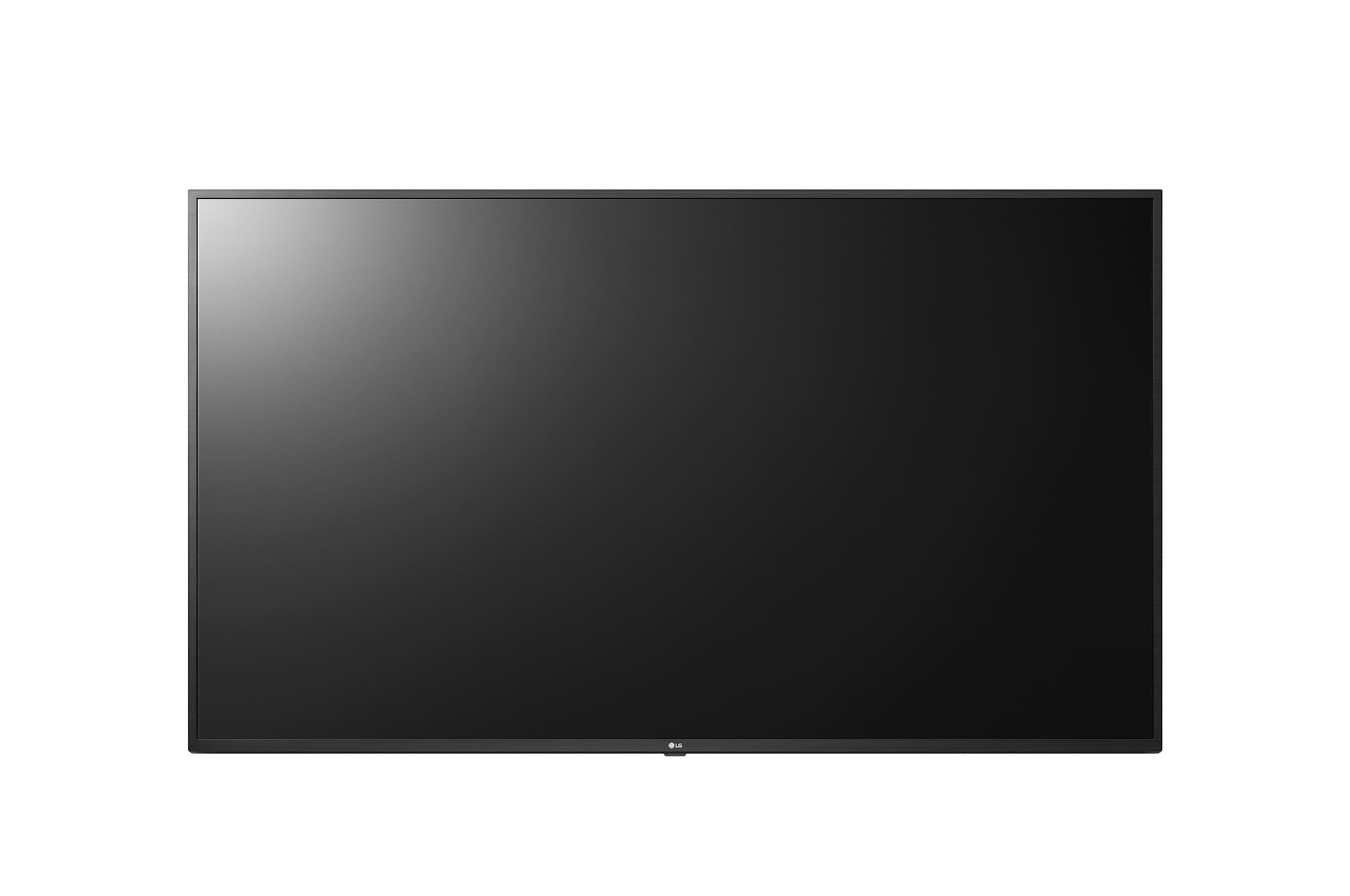

An Ultra HD large display, the UL3G Series will improve business productivity in any location. All content is delivered in vivid colors and with fine details, giving audiences a clearer viewing experience.
SUPERB PICTURE QUALITY
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.
SUPERB PICTURE QUALITY
High Efficiency Video Coding
The UL3G Series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.
* HEVC : High Efficiency Video Coding
SMART SIGNAGE PLATFORM
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
SMART SIGNAGE PLATFORM
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.
Smart Signage Platform
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Smart Signage Platform
Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Smart Signage Platform
Wireless Solution
The UL3G Series operates as a virtual router which can be a wireless access point for mobile devices.
OPERATIONAL EFFICIENCY
Compatibility with AV Control System
The UL3G Series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
OPERATIONAL EFFICIENCY
Compatibility with Conferencing System
The certification of compatibility between the UL3G Series and Cisco System that offers powerful and integrated control* for video conference is in progress. It will promote the optimal visual meeting by eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
* Using an HDMI cable connection
OPERATIONAL EFFICIENCY
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UL3G Series displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
OPERATIONAL EFFICIENCY
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
| Feature |
Feature Value |
| Display diagonal |
139.7 cm (55″) |
| Display technology |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
400 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.78 million colours |
| HDMI ports quantity |
3 |
| DVI port |
No |
| DisplayPorts quantity |
0 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| HDMI version |
1.4 |
| HDMI input ports quantity |
3 |
| VGA (D-Sub) input ports |
0 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232C |
Yes |
| Built-in speaker(s) |
Yes |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
2.23 cm |
| Bezel width (side) |
1.55 cm |
| Bezel width (top) |
1.55 cm |
| Purpose |
Universal |
| Operating hours (hours/days) |
16/7 |
| HDCP |
Yes |
| Power consumption (typical) |
105 W |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
135 kWh |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Heat dissipation |
529 BTU/h |
| Energy efficiency scale |
A to G |
| Computer system |
Yes |
| Internal memory |
8 GB |
| Operating system installed |
WebOS |
| Width |
1244 mm |
| Depth |
87.1 mm |
| Height |
726 mm |
| Weight |
14.3 kg |
| Width (with stand) |
1244 mm |
| Depth (with stand) |
231 mm |
| Height (with stand) |
786 mm |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 80% |
| Certification |
CB / UL
FCC “A” / CE / KC
ErP |
| Harmonized System (HS) code |
85285210 |
