Description

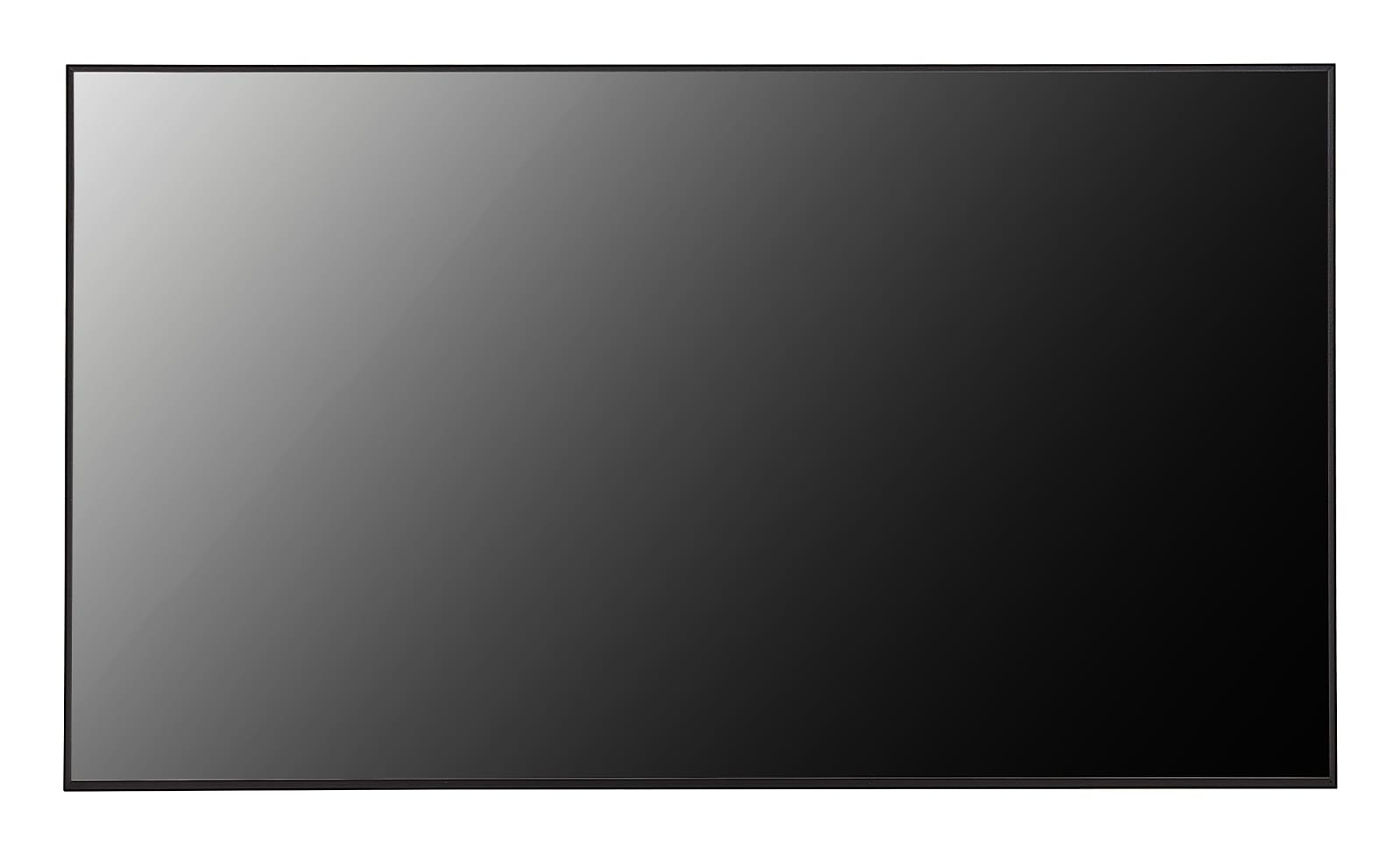

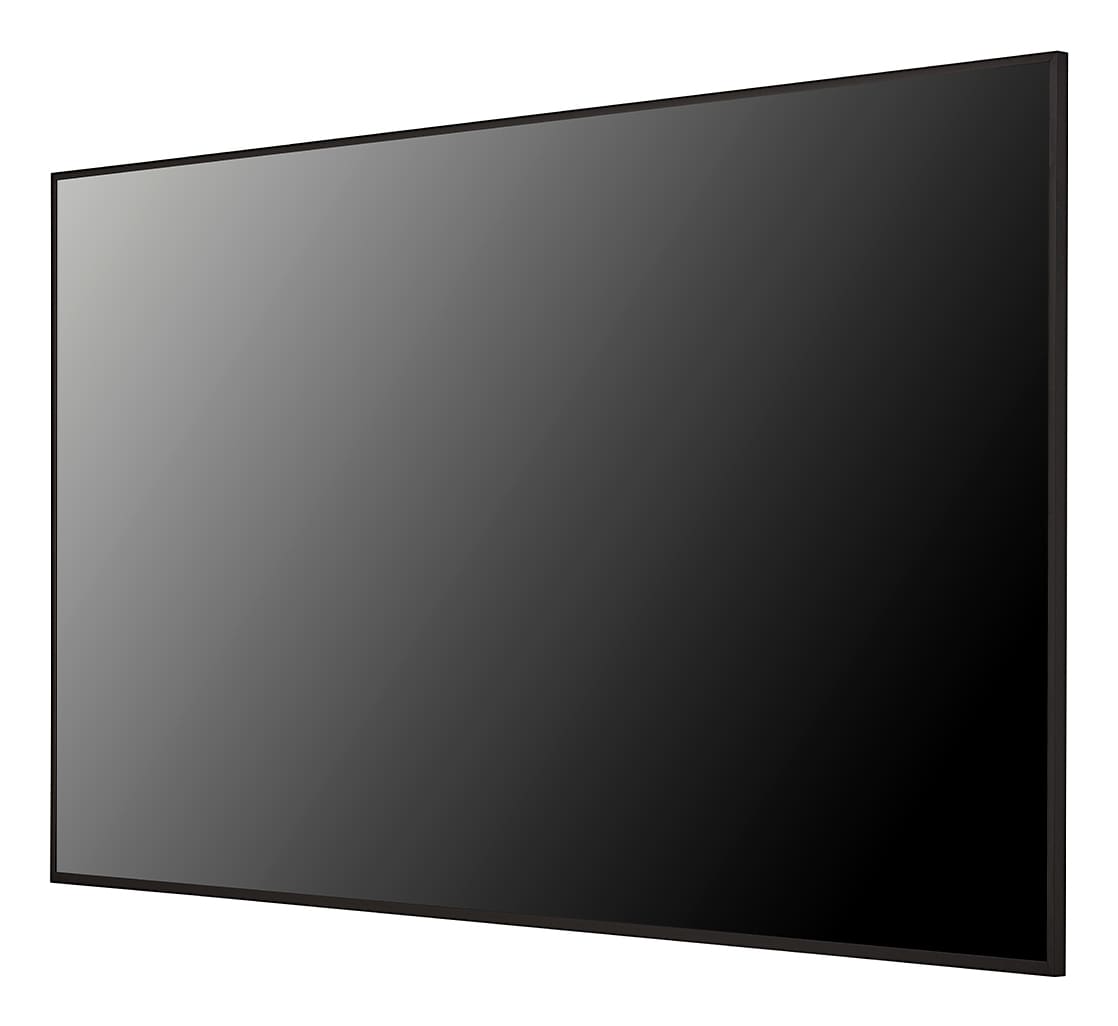

UHD Signage Display with
LG webOS Platform and Advanced Security
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security Features
The UH5N-M provides security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
| Feature |
Feature Value |
| Display diagonal |
165.1 cm (65″) |
| Display technology |
LCD |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Panel type |
IPS |
| LED backlight |
Yes |
| LED backlighting type |
Edge-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1100:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colours |
| Panel life |
50000 h |
| Colour depth |
10 bit |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |
| Colour gamut |
95% |
| HDMI ports quantity |
4 |
| DVI port |
No |
| DisplayPorts quantity |
1 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| HDMI input ports quantity |
3 |
| HDMI output ports quantity |
1 |
| USB ports quantity |
1 |
| USB version |
2.0 |
| USB connector type |
USB Type-A |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232C |
Yes |
| Remote (IR) input |
1 |
| Built-in speaker(s) |
Yes |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.29 cm |
| Bezel width (side) |
8.9 mm |
| Bezel width (top) |
8.9 mm |
| Purpose |
Universal |
| Picture-in-Picture |
Yes |
| On Screen Display (OSD) |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| Automatic brightness control |
Yes |
| International Protection (IP) code |
IP5X |
| HDCP version |
1.4/2.2/2.3 |
| Power consumption (typical) |
130 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
205 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Heat dissipation |
444 BTU/h |
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Internal memory |
16 GB |
| Operating system installed |
WebOS |
| Operating system version |
6.0 |
| Display width |
1450.3 mm |
| Display depth |
29.7 mm |
| Display height |
830.3 mm |
| Display weight |
24.2 kg |
| Package width |
1600 mm |
| Package depth |
172 mm |
| Package height |
970 mm |
| Package weight |
30.4 kg |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, Phone |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 80% |
| Heat dissipation (max) |
699 BTU/h |
| Audio output |
1 |
| Power consumption (PowerSave) |
91 W |
| Plug and Play |
Yes |
| Real Time Clock (RTC) |
Yes |
