Description

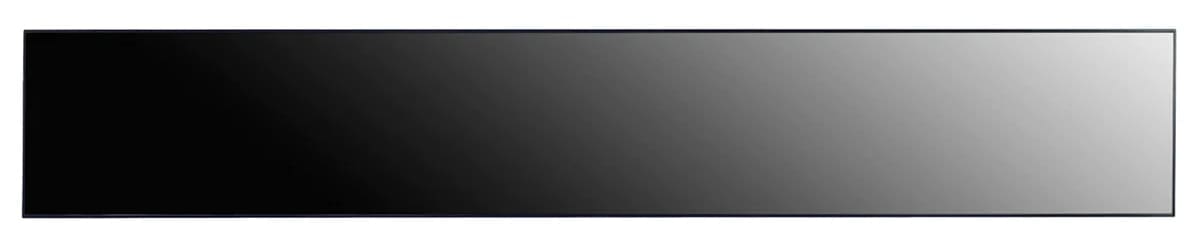

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86-inch Ultra Stretch Signage 86BH5F is the ideal digital display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring virtually any unused and leftover space to life where conventional digital signage would not fit.
58:9 Extended Wide Format
The unique bar-type 58:9 wide screen provides much more flexibility in playing content than a conventional display with 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multiple content on one display by dividing it in up to four parts. It is very useful and convenient for delivering various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene with up to 15×15 configuration. This is the best choice if you want to use a large screen, or provide high visual impact to your customers in a different way.
IP5X Certified Design
The IP5X Dustproof Certification ensures that the product is protected from dust, virtually eliminating the risk of performance degradation.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, the LG webOS Signage platform enhances user convenience with an intuitive GUI.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with Signage365Care
Easier and faster maintenance is available with Signage365Care,* our optional cloud service solution for remotely monitoring and managing the operating status of signage displays installed in client workplaces. It provides fault diagnosis and remote-control service, ensuring the stable operation of a client’s business.
| Feature |
Feature Value |
| Display diagonal |
2.18 m (86″) |
| Display technology |
IPS |
| Display resolution |
3840 x 600 pixels |
| Display brightness |
500 cd/m² |
| Native aspect ratio |
58:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1100:1 |
| Contrast ratio (dynamic) |
500000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel life |
50000 h |
| HDMI ports quantity |
3 |
| DVI port |
Yes |
| DisplayPorts quantity |
2 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| DVI-D ports quantity |
1 |
| DisplayPorts in |
1 |
| DisplayPorts out |
1 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Audio (L/R) in |
1 |
| RS-232 interface |
Yes |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 200 mm |
| Bezel width (bottom) |
5.9 mm |
| Bezel width (side) |
4.4 mm |
| Bezel width (top) |
5.9 mm |
| Purpose |
Retail |
| Power consumption (typical) |
100 W |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
143 kWh |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Energy efficiency scale |
A to G |
| Width |
2158.3 mm |
| Depth |
81.7 mm |
| Height |
348.5 mm |
| Weight |
20.5 kg |
| Package width |
2290 mm |
| Package depth |
228 mm |
| Package height |
599 mm |
| Package weight |
38.2 kg |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
DisplayPort |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Storage relative humidity (H-H) |
5 – 85% |
| Certification |
CB, NRTL, FCC Class “A”, CE, KC, ErP |
| Harmonized System (HS) code |
85285210 |
