Description
When imaging precision cannot be compromised

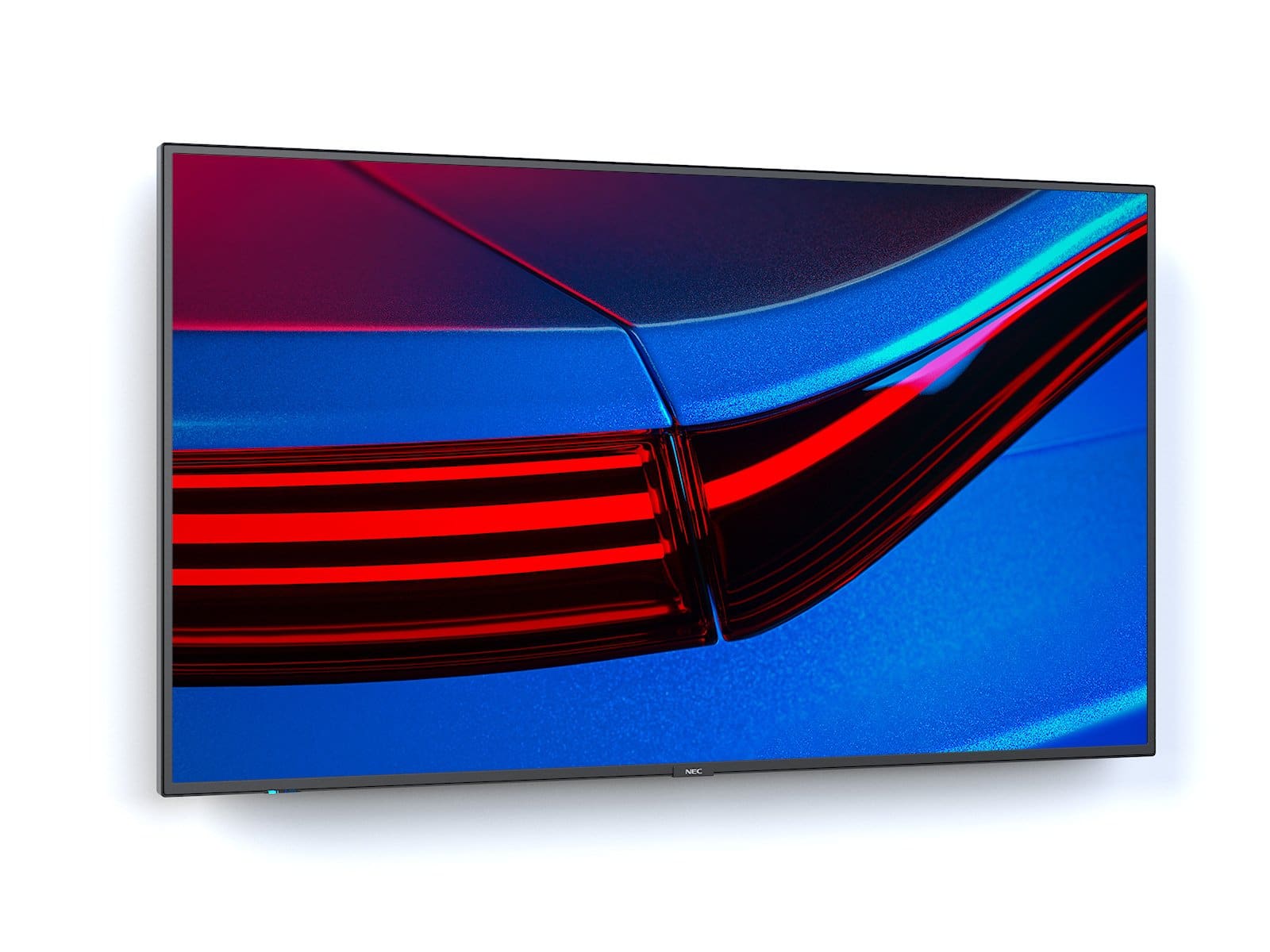

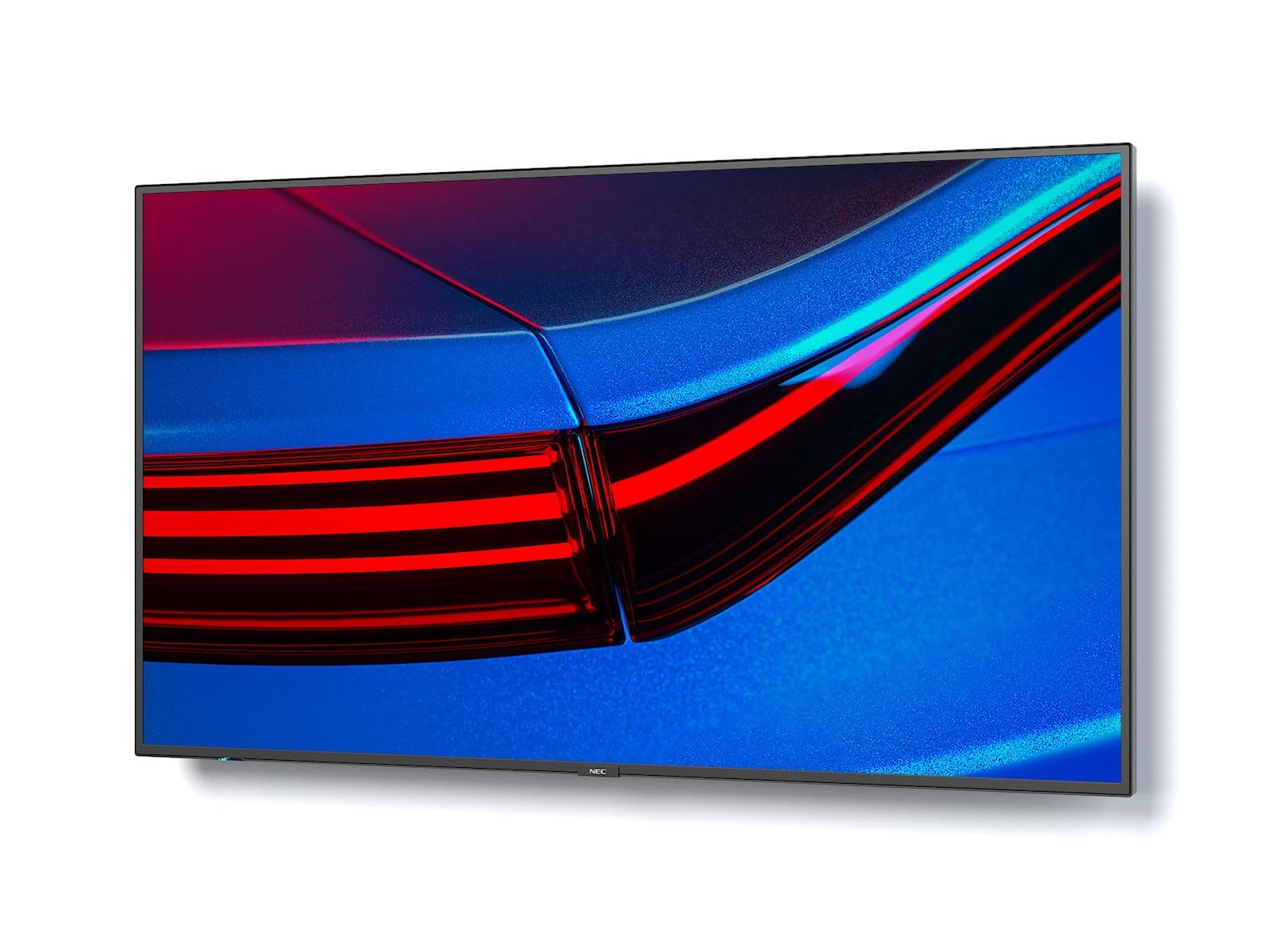

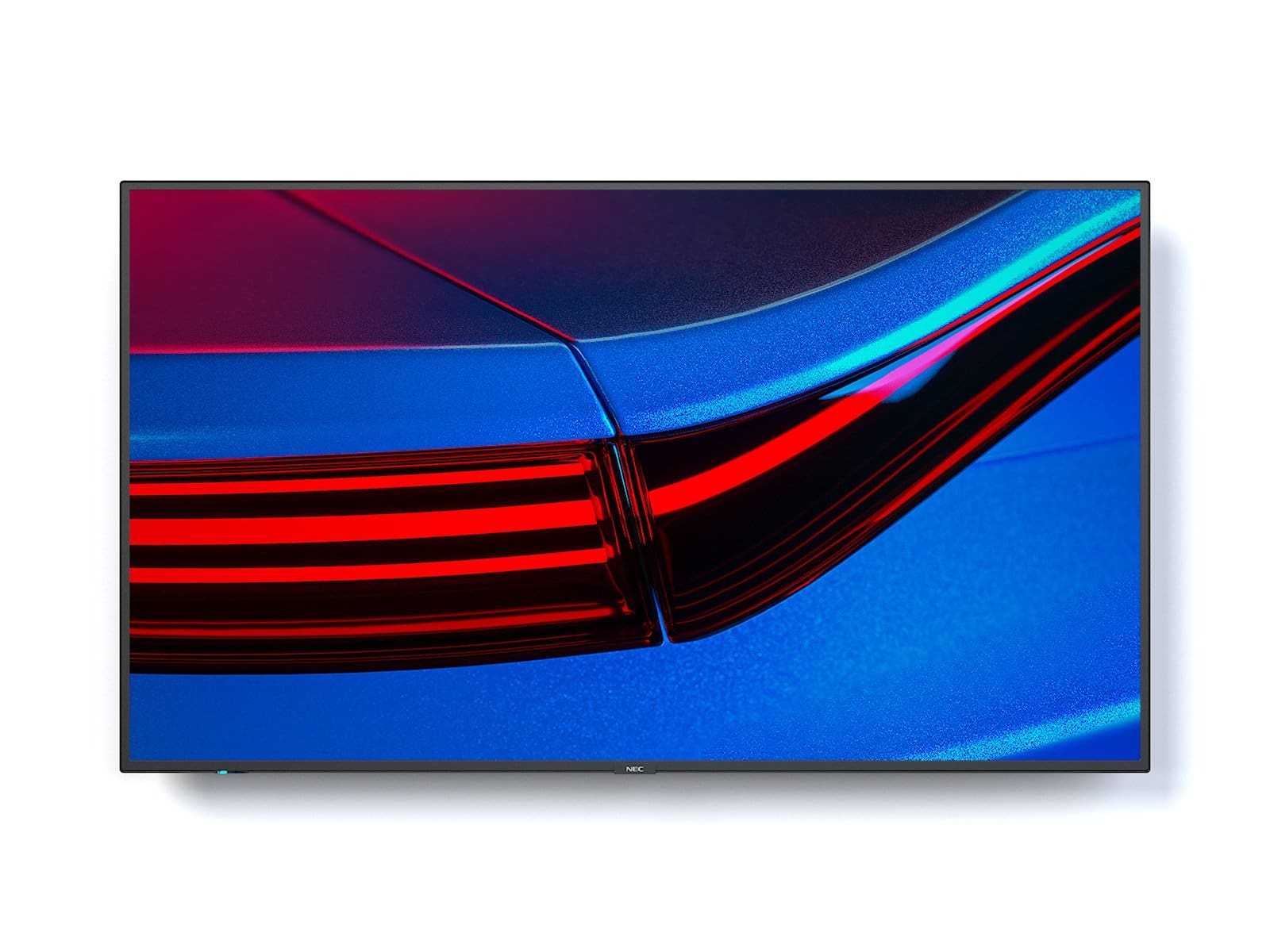

When imaging precision and 24/7 operational reliability cannot be compromised, the 5th generation of NEC MultiSync P series presents best-in-class performance with an advanced feature set for mission-critical applications
Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated NEC SpectraView engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring NEC Open Modular Intelligence (OMI) slot-in technology, choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel Smart Display Modules (Intel SDM) for tailor-made signage solutions.
For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the NEC P Series is trusted for safety and long-life, fit-for-purpose performance.
| Feature |
Feature Value |
| Display diagonal |
109.2 cm (43″) |
| Display technology |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
700 cd/m² |
| HD type |
4K Ultra HD |
| LED backlighting type |
Edge-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.073 billion colours |
| Display diagonal (metric) |
108 cm |
| Horizontal scan range |
15 – 135 kHz |
| Vertical scan range |
23 – 76 Hz |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
2 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| USB ports quantity |
3 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
100 Mbit/s |
| Audio (L/R) out |
1 |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.56 cm |
| Bezel width (side) |
1.1 cm |
| Bezel width (top) |
1.1 cm |
| Purpose |
Universal |
| Picture-in-Picture |
Yes |
| Ambient light sensor |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| International Protection (IP) code |
IP5X, IP2X |
| Power consumption (typical) |
90 W |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
87 kWh |
| Energy consumption (HDR) per 1000 hours |
87 kWh |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Display width |
968.2 mm |
| Display depth |
67.1 mm |
| Display height |
561 mm |
| Display weight |
18.5 kg |
| Package width |
1120 mm |
| Package depth |
203 mm |
| Package height |
700 mm |
| Package weight |
23 kg |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, HDMI |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Storage relative humidity (H-H) |
10 – 90% |
| Harmonized System (HS) code |
85285210 |
