Description
Functionality you need, at the price you want

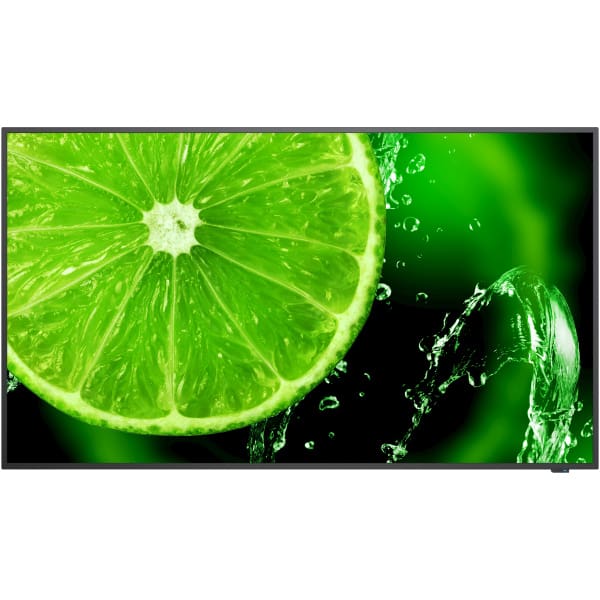

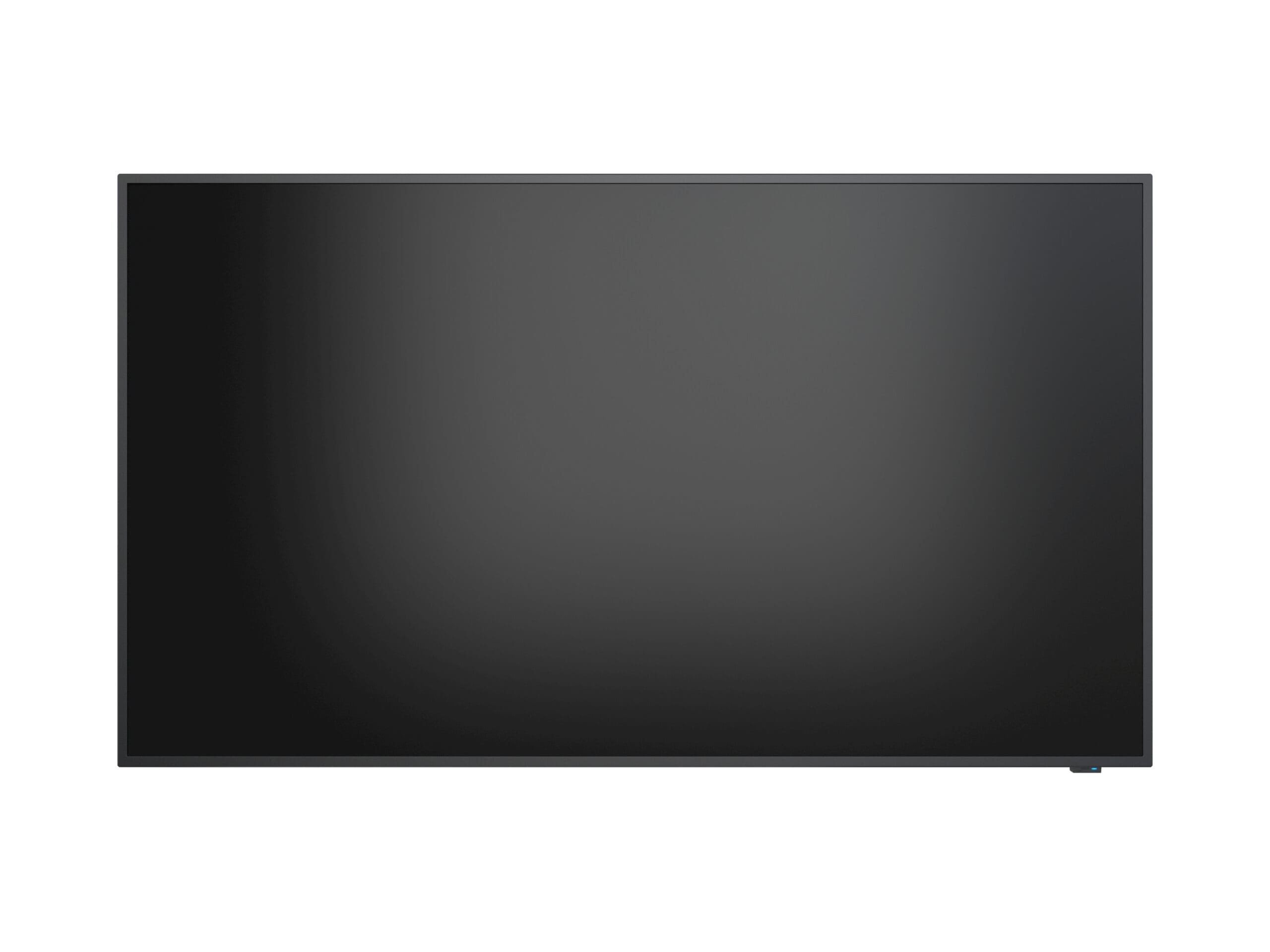

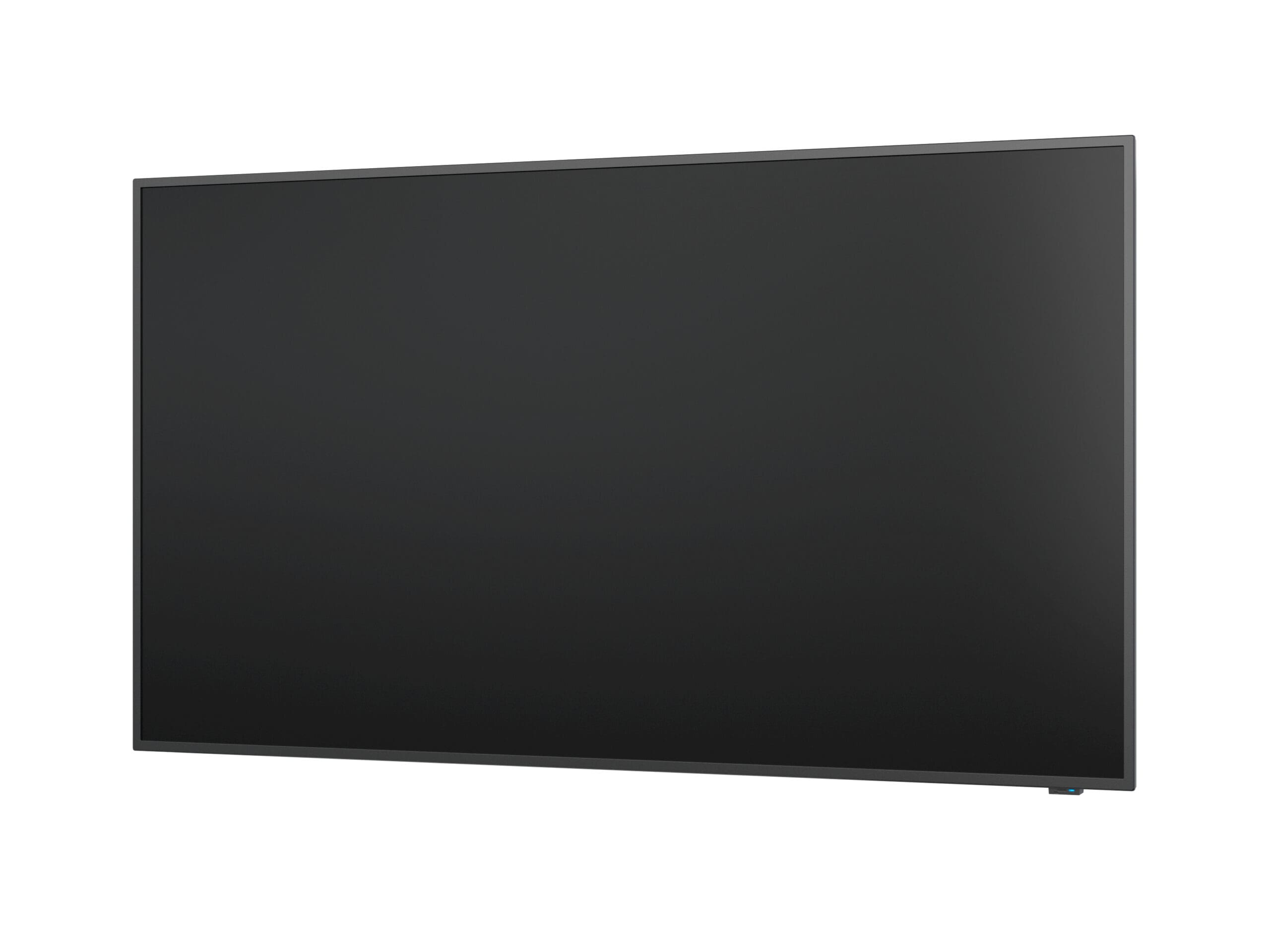

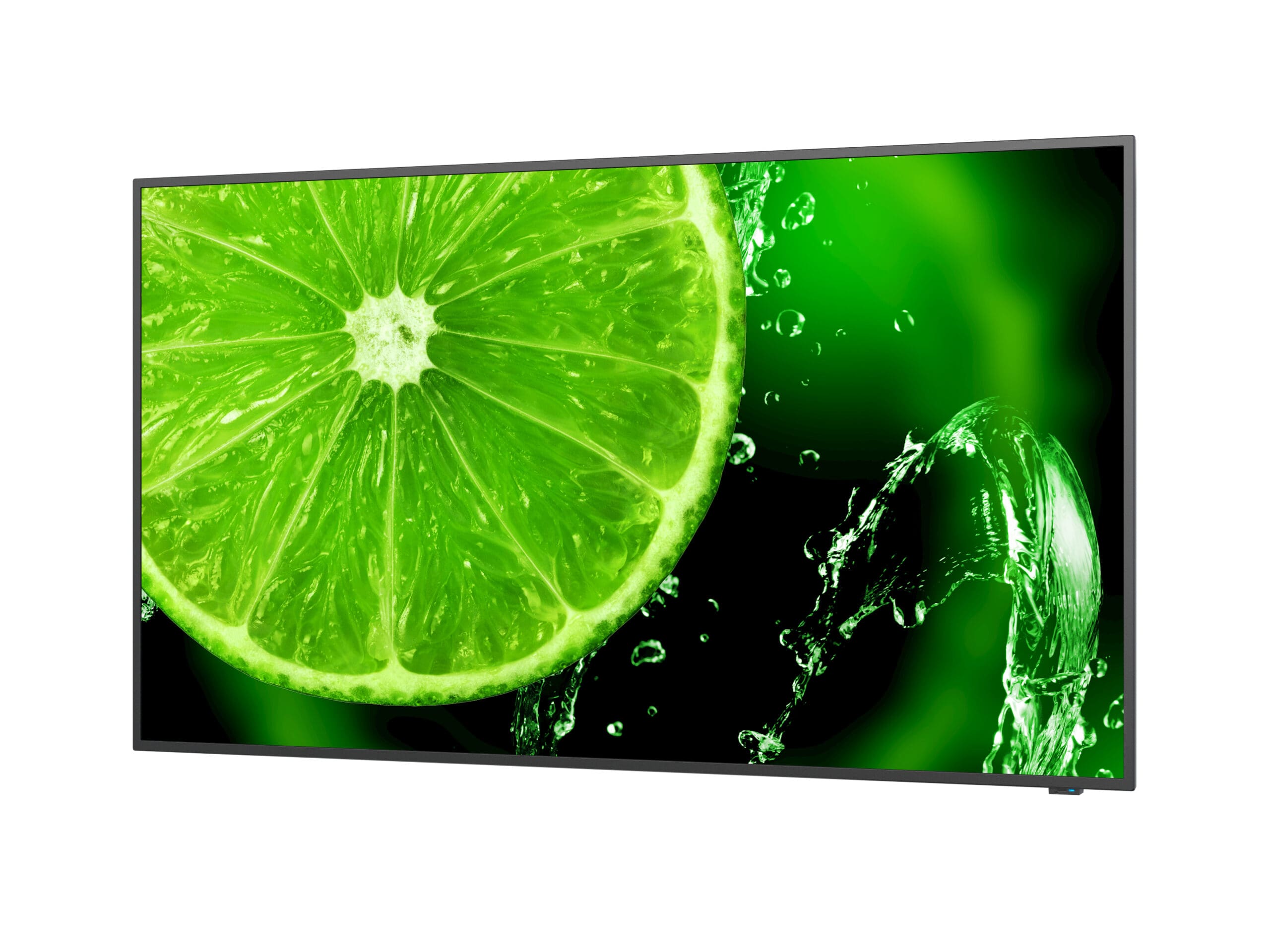

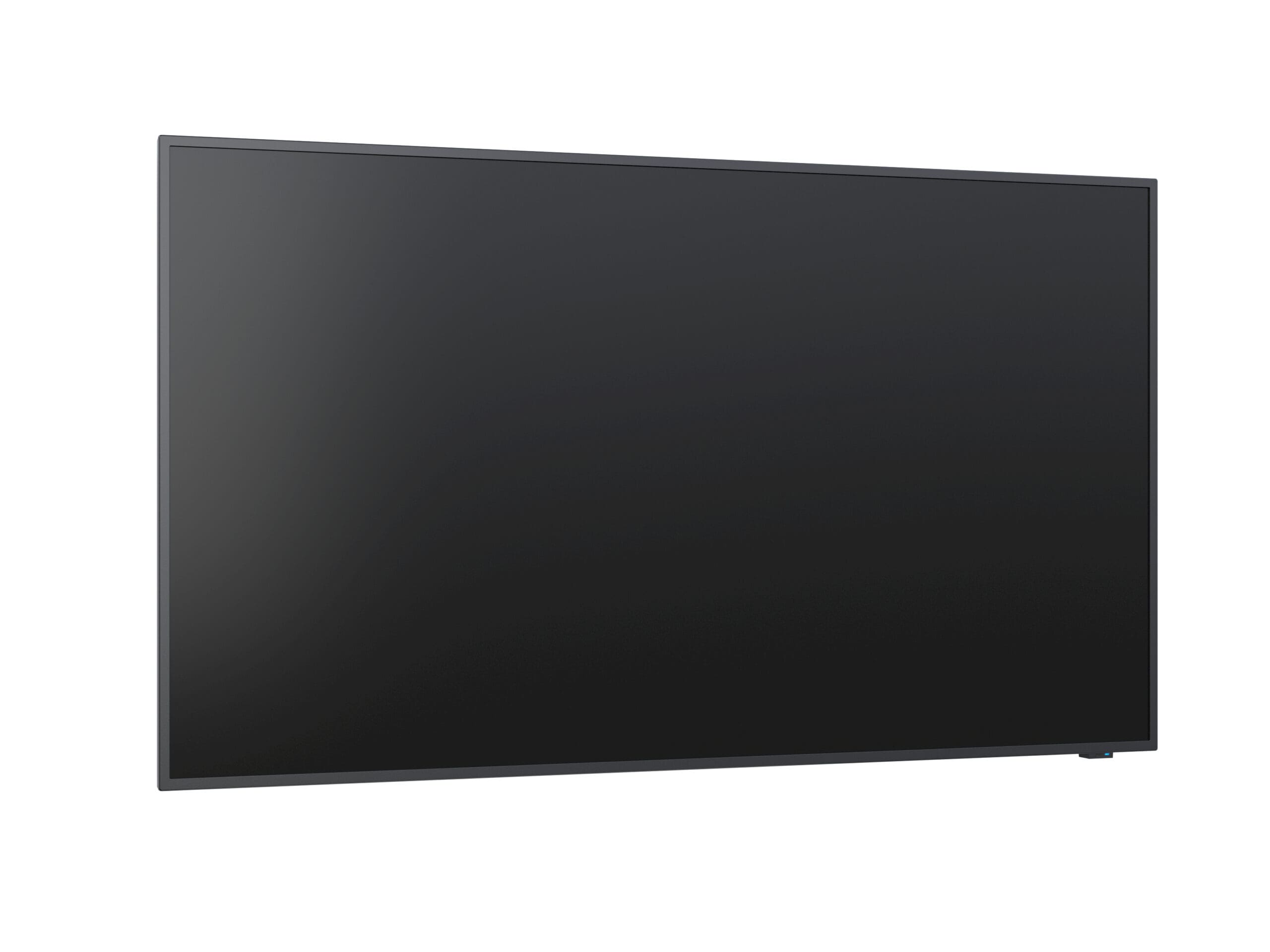

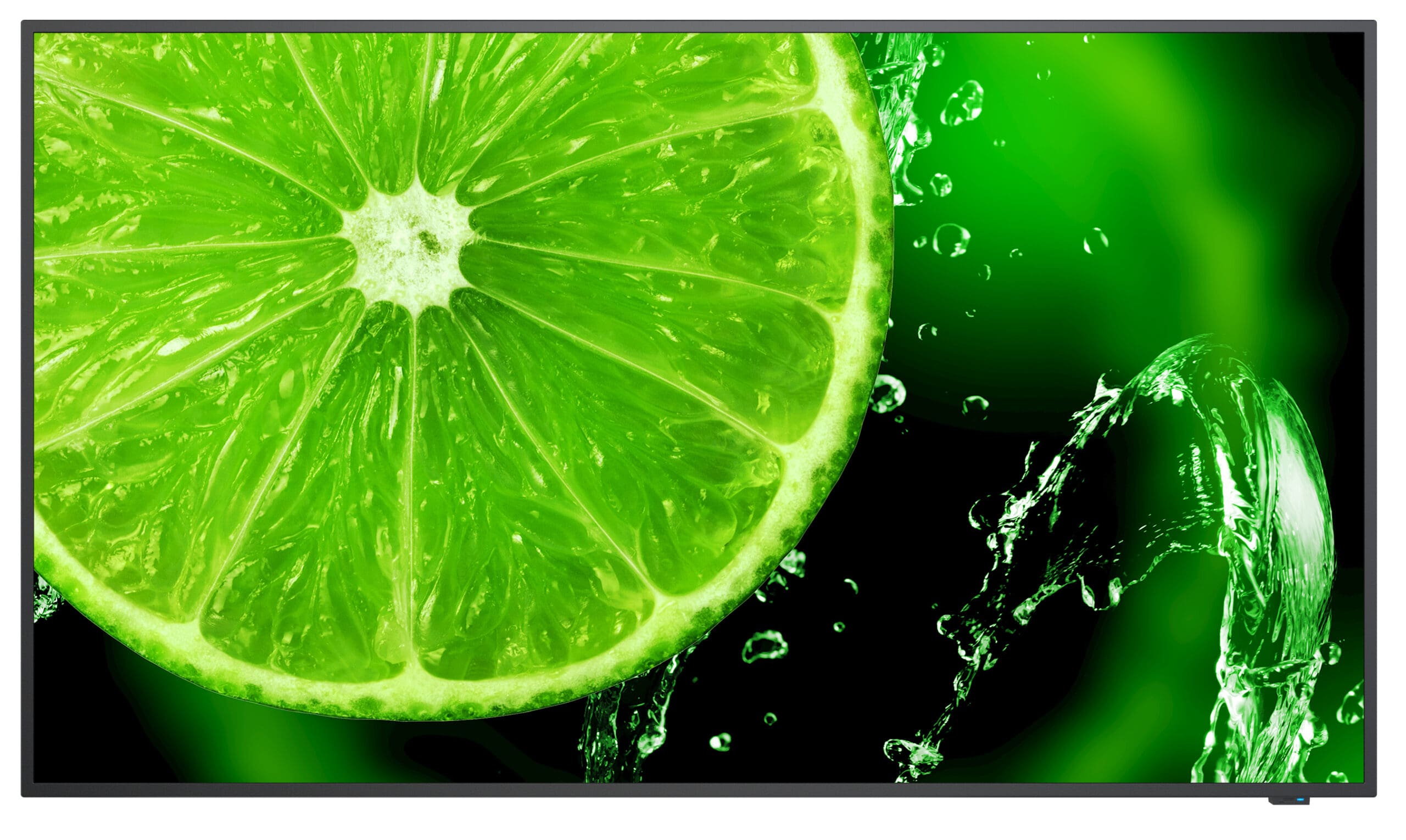

A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want. An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.
Benefits
– Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
– Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
– Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
– Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
– Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
| Feature |
Feature Value |
| Display diagonal |
165.1 cm (65″) |
| Display technology |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
350 cd/m² |
| HD type |
4K Ultra HD |
| LED backlighting type |
Direct-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.372 x 0.372 mm |
| Active display area (W x H) |
1428.48 x 803.52 mm |
| Display diagonal (metric) |
164 cm |
| Horizontal scan range |
15 – 136 kHz |
| Vertical scan range |
24 – 75 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
Hybrid Log-Gamma (HLG) |
| Native refresh rate |
60 Hz |
| Haze rate |
1% |
| HDMI ports quantity |
3 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| VGA (D-Sub) input ports |
1 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
100 Mbit/s |
| Composite video in |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| RS-232 interface |
Yes |
| RS-232C |
Yes |
| Remote (IR) input |
1 |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Panel mounting interface |
400 x 200 mm |
| Bezel width (bottom) |
1.44 cm |
| Bezel width (side) |
1.3 cm |
| Bezel width (top) |
1.3 cm |
| Ambient light sensor |
Yes |
| Operating hours (hours/days) |
16/7 |
| Power consumption (typical) |
144 W |
| Power consumption (standby) |
2 W |
| Energy efficiency class (SDR) |
F |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
96 kWh |
| Energy consumption (HDR) per 1000 hours |
127 kWh |
| AC input voltage |
100-240 V |
| AC input frequency |
50 – 60 Hz |
| Video formats supported |
H.263, H.264, HEVC/H.265, MP4, MPEG1, MPEG2, MPEG4, MPG, TS |
| Audio formats supported |
AAC, LPCM, MP3, WMV |
| Image formats supported |
JPG |
| Width |
1457.5 mm |
| Depth |
73 mm |
| Height |
833.9 mm |
| Weight |
23.8 kg |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, HDMI |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 80% |
| Storage temperature (T-T) |
-10 – 60 °C |
| Storage relative humidity (H-H) |
5 – 85% |
| Certification |
CE; EAC; EMC Class B; Energy Star 8; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV S; UL/C-UL; VCCI |
| Harmonized System (HS) code |
85285210 |
| Sustainability certificates |
ENERGY STAR |
| Hybrid Log-Gamma (HLG) |
Yes |
