Description
Intuitive professional content delivery

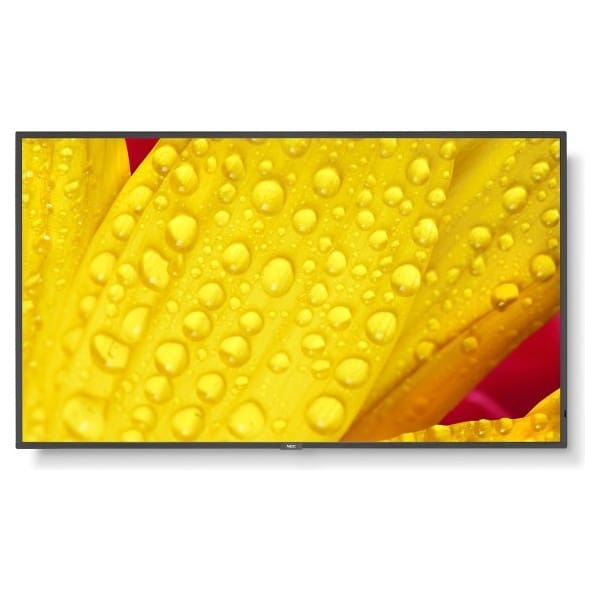

Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the Mxx1-2 series is the professional way to deliver your message, yet at an attractive price point.
With the optional Raspberry PI Compute Module or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the Mxx1-2-2 Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
| Feature |
Feature Value |
| Display diagonal |
139.7 cm (55″) |
| Display technology |
LCD |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Panel type |
IPS |
| LED backlight |
Yes |
| LED backlighting type |
Edge-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.073 billion colours |
| Display diagonal (metric) |
138.8 cm |
| Horizontal scan range |
26 – 135 kHz |
| Vertical scan range |
23 – 86 Hz |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| HDMI ports quantity |
4 |
| DVI port |
No |
| DisplayPorts quantity |
2 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
2 |
| DisplayPorts in |
1 |
| DisplayPorts out |
1 |
| USB ports quantity |
1 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
100 Mbit/s |
| Audio (L/R) out |
1 |
| RS-232 interface |
Yes |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
400 x 400 mm |
| Bezel width (bottom) |
1.39 cm |
| Purpose |
Universal |
| Ambient light sensor |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| International Protection (IP) code |
IP5X, IP2X |
| Power consumption (typical) |
120 W |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
89 kWh |
| Energy consumption (HDR) per 1000 hours |
81 kWh |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Energy efficiency scale |
A to G |
| Computer system |
No |
| Built-in processor |
No |
| Display width |
1241.8 mm |

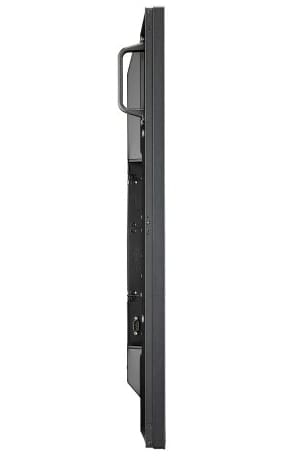

| Display depth |
62.6 mm |
| Display height |
712.6 mm |
| Display weight |
19.8 kg |
| Package width |
1430 mm |
| Package depth |
250 mm |
| Package height |
920 mm |
| Package weight |
29.4 kg |
| Remote control included |
Yes |
| Cables included |
AC, HDMI |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Storage relative humidity (H-H) |
10 – 90% |
| Wall mountable |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
BSMI, CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), PSB, RCM, RoHS, VCCI |
