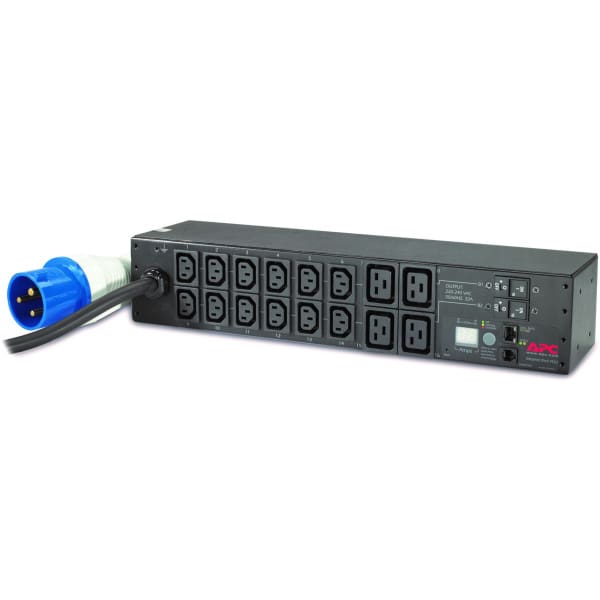

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Part No:
AP7822B
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£806.84
£968.21
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

APC Metered Rack PDU AP7822B – Power distribution unit (rack-mountable) – AC 200/208/230 V – input: IEC 60309 32A – output connectors: 16 (power IEC 60320 C13, IEC 60320 C19) – 2U – 3.66 m cord – for P/N: SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RMI2UC, SMTL750RMI2UC

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: AP7822B Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
APC

Related products

Description

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Feature Feature Value
PDU types Metered
Rack capacity 2U
Type Single-phase
Mounting Horizontal/Vertical
Product colour Black
On/off switch Yes
AC outlets quantity 16 AC outlet(s)
AC outlet types C13 coupler, C19 coupler
Power plug IEC309
Input connection type IEC 309 32A 2P+E
Output connections 12 x C13
4 x C19
LED indicators Yes
Cable length 3.66 m
Monitoring Current, Power, Voltage
Nominal input voltage 208-230 V
Maximum current 32 A
AC input frequency 50 – 60 Hz
Load capacity 7680 VA
Maximum input current per phase 32 A
Maximum total current draw per phase 32 A
Power protection features Overload
Maximum power 7680 W
Compliance certificates RoHS
Certification C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Operating temperature (T-T) -5 – 45 °C
Storage temperature (T-T) -25 – 65 °C
Operating relative humidity (H-H) 5 – 95%
Storage relative humidity (H-H) 5 – 95%
Width 444 mm
Depth 112 mm
Height 88 mm
Weight 3.36 kg
Package weight 5.41 kg
Package width 508 mm
Package depth 368 mm
Package height 140 mm
Total carbon footprint (kg of CO2e) 8952.07

Additional information

PDU types

Metered
Type

Single-phase
Product colour

Black
AC outlets quantity

16 AC outlet(s)
Power plug

IEC309
Output connections

12 x C13 4 x C19
Cable length

3.66 m
Nominal input voltage

208-230 V
AC input frequency

50/60 Hz
Power protection features

Overload
Compliance certificates

RoHS
Operating temperature (T-T)

5 – 45 °C
Width

444 mm
Height

88 mm
Package weight

5.41 kg
Package depth

368 mm
Rack capacity

2U
Mounting

Horizontal/Vertical
On/off switch

Yes
AC outlet types

C13 coupler, C19 coupler
Input connection type

IEC 309 32A 2P+E
LED indicators

Yes
Monitoring

Current, Power, Voltage
Maximum current

32 A
Load capacity

7680 VA
Maximum power

7680 W
Certification

C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Storage temperature (T-T)

-25 – 65 °C
Depth

112 mm
Weight

3.36 kg
Package width

508 mm
Package height

140 mm

Brand

APC
