APC AP8853 power distribution unit (PDU) 42 A

Part No:
AP8853
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£656.28
£787.53
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers.
344 still available

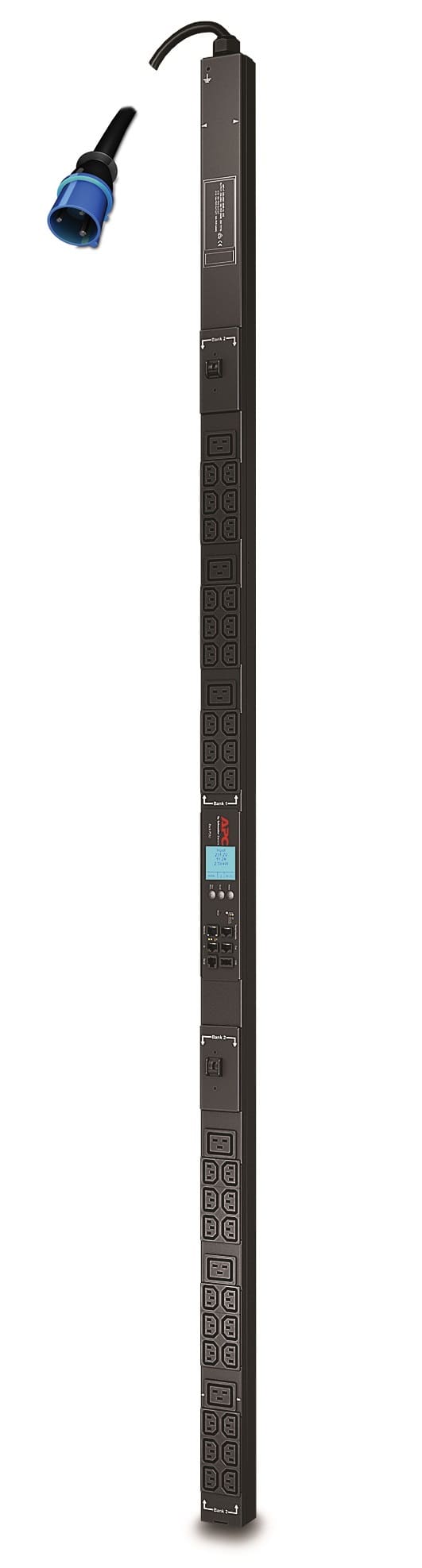

Rack PDU 2G Metered ZeroU 32A 230V (36) C13 & (6) C19

344 in stock (can be backordered)

Safe & Secure shopping

SKU: AP8853 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly

Related products

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Feature Feature Value
PDU types Metered
Rack capacity 0U
Type Single-phase
Mounting Vertical
Product colour Black
AC outlets quantity 42 AC outlet(s)
AC outlet types C13 coupler, C19 coupler

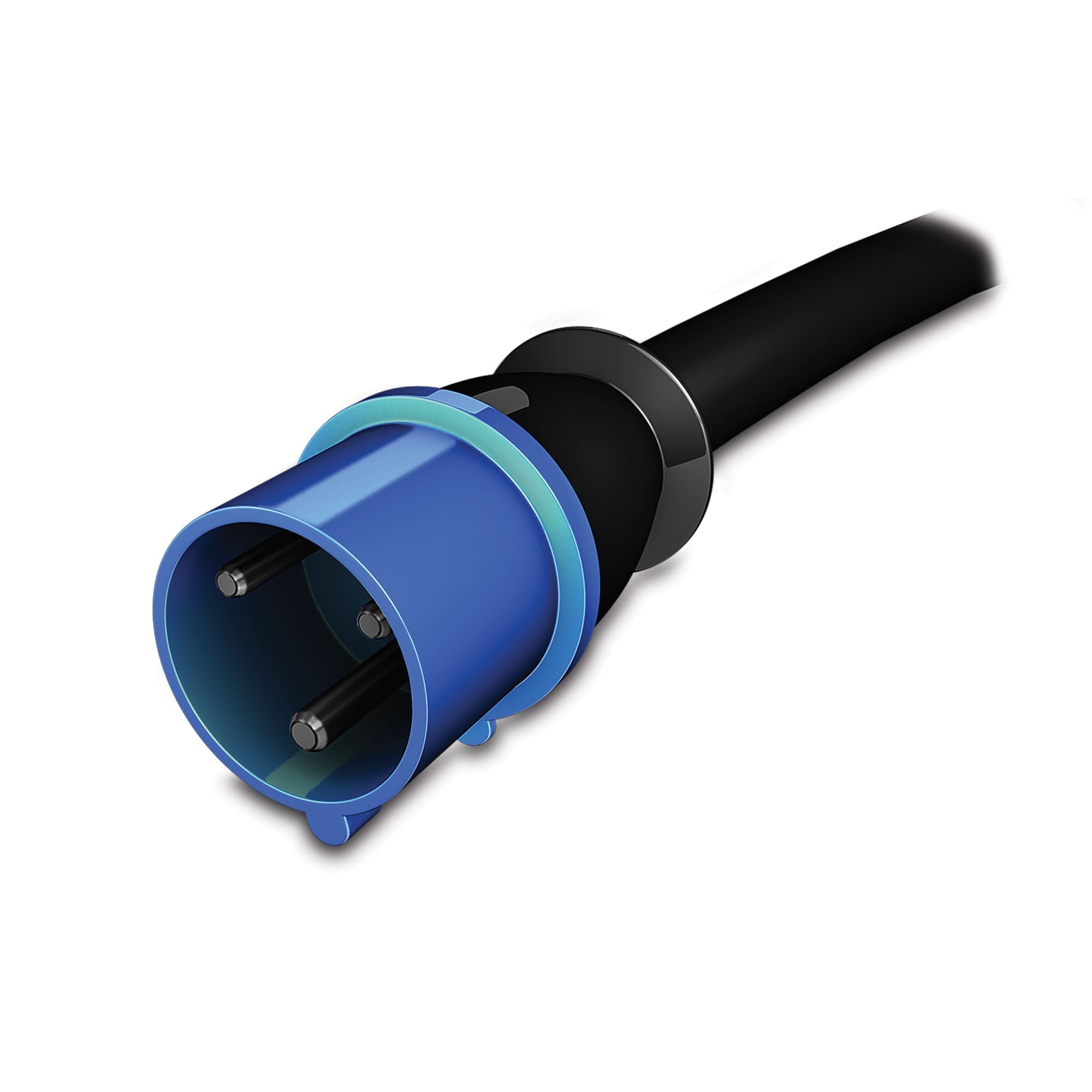

Power plug IEC309
Input connection type IEC 309 32A 2P+E
Output connections 36x IEC 320 C13
6x IEC 320 C19
Cable length 3 m
Certification RoHS, REACH
IEC 60950,VDE
Monitoring Current, Power, Voltage
AC input frequency 50 – 60 Hz
Nominal output voltage 230 V
Load capacity 7680 VA
Maximum input current per phase 32 A
Maximum total current draw per phase 32 A
Maximum power 7680 W
Dimensions (WxDxH) 56 x 44 x 1791 mm
Weight 6.93 kg
Operating temperature (T-T) 5 – 45 °C
Storage temperature (T-T) -25 – 65 °C
Operating relative humidity (H-H) 5 – 95%
Storage relative humidity (H-H) 5 – 95%

Additional information

PDU types

Metered
Type

Single-phase
Product colour

Black
AC outlet types

C13 coupler, C19 coupler
Input connection type

IEC 309 32A 2P+E
Cable length

3 m
Monitoring

Current, Power, Voltage
Nominal output voltage

230 V
Maximum power

7680 W
Weight

6.93 kg
Storage temperature (T-T)

-25 – 65 °C
Rack capacity

0U
Mounting

Vertical
AC outlets quantity

42 AC outlet(s)
Power plug

IEC309
Output connections

36x IEC 320 C13 6x IEC 320 C19
Certification

RoHS, REACH IEC 60950,VDE
AC input frequency

50/60 Hz
Load capacity

7680 VA
Dimensions (WxDxH)

56 x 44 x 1791 mm
Operating temperature (T-T)

5 – 45 °C
