APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C

Part No:
APDU9941
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£1,060.71
£1,272.85
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Be quick, last one left in stock!
1 in stock.

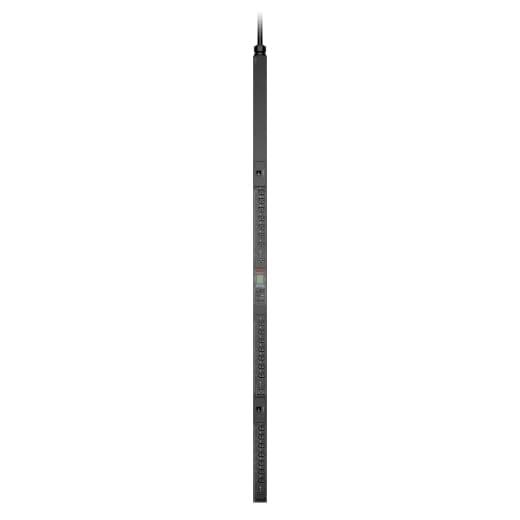

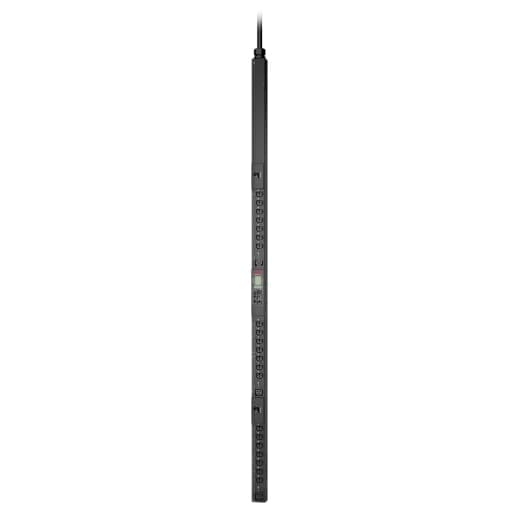

APC Rack PDU 9000 Switched APDU9941 – Power distribution unit (rack-mountable) – AC 200/208 V – 4992 VA – Ethernet 10/100/1000 – input: NEMA L6-30P – output connectors: 24 (21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21) – 0U – 3.05 m cord – black – for P/N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT6KXLTUS, SRT8KXLTUS

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: APDU9941 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
APC

Related products

Description

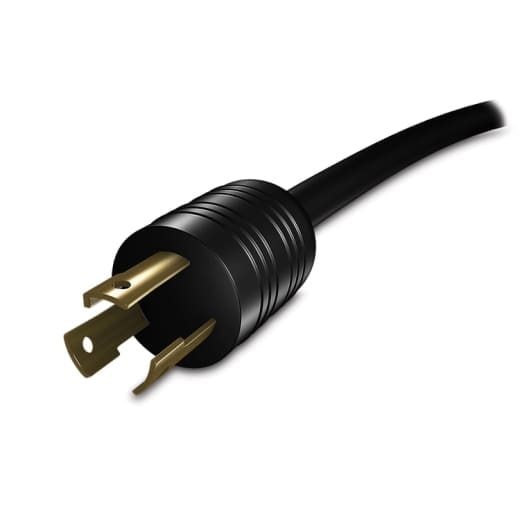

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty

Feature Feature Value
PDU types Switched
Rack capacity 0U
Type Single-phase
Mounting Vertical
Product colour Black
AC outlets quantity 24 AC outlet(s)
AC outlet types C13 coupler, C15 coupler, C19 coupler, C21 coupler
Power plug NEMA L6-30P
Ethernet LAN (RJ-45) ports 1
Nominal input voltage 90 – 264 V
Maximum current 30 A
Nominal output voltage 200 – 208 V
Load capacity 4992 VA
Compliance certificates RoHS
Certification CUL , FCC 15 A, ICES-003, PSE
Operating temperature (T-T) -5 – 60 °C
Storage temperature (T-T) -25 – 65 °C
Operating relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3048 m
Non-operating altitude 0 – 15240 m
Width 55 mm
Depth 46 mm
Height 1829 mm
Weight 8.5 kg
Manual Yes
Package weight 10 kg
Package width 165 mm
Package depth 124 mm
Package height 2040 mm
Sustainability compliance Yes

Additional information

PDU types

Switched
Type

Single-phase
Product colour

Black
AC outlet types

C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports

1
Maximum current

30 A
Load capacity

4992 VA
Certification

CUL , FCC 15 A, ICES-003, PSE
Storage temperature (T-T)

-25 – 65 °C
Operating altitude

0 – 3048 m
Width

55 mm
Height

1829 mm
Manual

Yes
Package width

165 mm
Package height

2040 mm
Rack capacity

0U
Mounting

Vertical
AC outlets quantity

24 AC outlet(s)
Power plug

NEMA L6-30P
Nominal input voltage

90 – 264 V
Nominal output voltage

200 – 208 V
Compliance certificates

RoHS
Operating temperature (T-T)

5 – 60 °C
Non-operating altitude

0 – 15240 m
Depth

46 mm
Weight

8.5 kg
Package weight

10 kg
Package depth

124 mm
Sustainability compliance

Yes

Brand

APC
