ATEN Over IP PDU metering device (to connect maximum 4 Power Distribution Units (PE1216 and or PE1324) and make them IP accessable)

Part No:

EC1000

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

Energy Box Energy PDU Port x 4 Eco Sensor Port x 4 Eco PDU Manager Software

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: EC1000 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

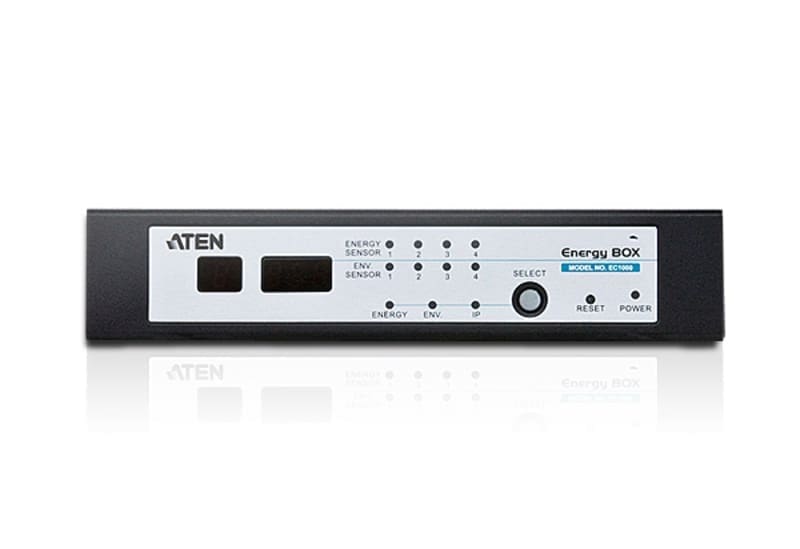

The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN’s energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN’s Energy PDUs – to ensure safe and effective energy-saving power management.

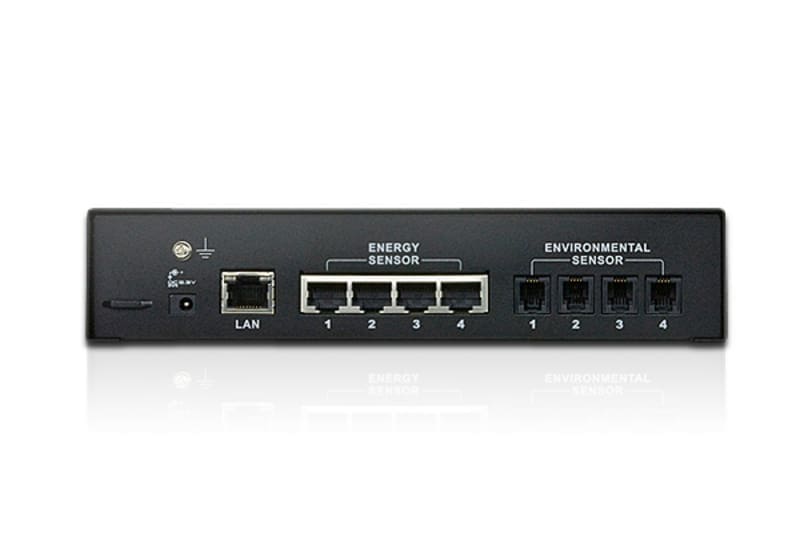

The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.

The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN’s eco Sensors software.

The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.
1x EC1000 Energy Box
1x 0AD8-8605-40MG Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions

Feature Feature Value
Connectivity technology Wired
Number of devices supported 4
RJ-45 ports quantity 4
LED indicators Power, Status
DC-in jack Yes
Power source type AC
Input voltage 100-240 V
Operating frequency 50/60 MHz
Power consumption (typical) 2.93 W
Products per master (outer) case 5 pc(s)
Master (outer) case gross weight 9.1 kg
Master (outer) case length 500 mm
Master (outer) case width 232 mm
Master (outer) case height 283 mm
Master (outer) case net weight 7.1 kg
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Housing colour Black
Housing material Metal
Width 200 mm
Depth 75.9 mm
Height 44 mm
Weight 1.42 kg
Package weight 1.68 kg
Package depth 265 mm
Package width 95 mm
Package height 220 mm
Manual Yes

Additional information

Connectivity technology

Wired
RJ-45 ports quantity

4
DC-in jack

Yes
Input voltage

100-240 V
Power consumption (typical)

2.93 W
Master (outer) case width

232 mm
Storage temperature (T-T)

-20 – 60 °C
Housing material

Metal
Depth

75.9 mm
Weight

1.42 kg
Package depth

265 mm
Package height

220 mm
Number of devices supported

4
LED indicators

Power, Status
Power source type

AC
Operating frequency

50/60 MHz
Master (outer) case length

500 mm
Master (outer) case height

283 mm
Operating temperature (T-T)

0 – 50 °C
Housing colour

Black
Width

200 mm
Height

44 mm
Package weight

1.68 kg
Package width

95 mm
Manual

Yes

Brand

Aten
