Description
Security through emergency power
An APC Back-UPS has a built-in battery that ensures that all connected equipment, such as a NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.
Safety
In addition, this safe APC Back-UPS protects valuable equipment against peak voltage caused by lightning strikes, for example.
Insurance
Despite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:
– Equipment protection policy of 100,000 euros
Extend the lifespan
The internal battery cartridge (RBC17) can be replaced easily, safely and independently by the user. This way you can easily and cheaply extend the lifespan of the APC Back-UPS BK650EI.
Warranty extension
The factory warranty of the BK650EI is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).
The re-invention of the most relied upon desktop UPS in history: the Back-UPS!

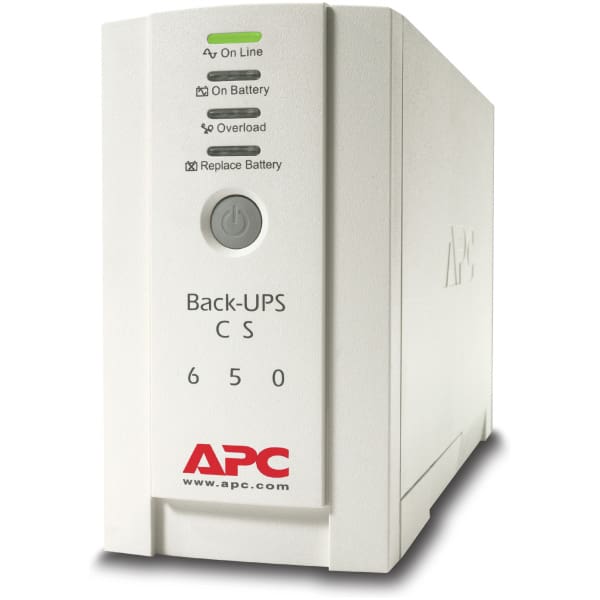

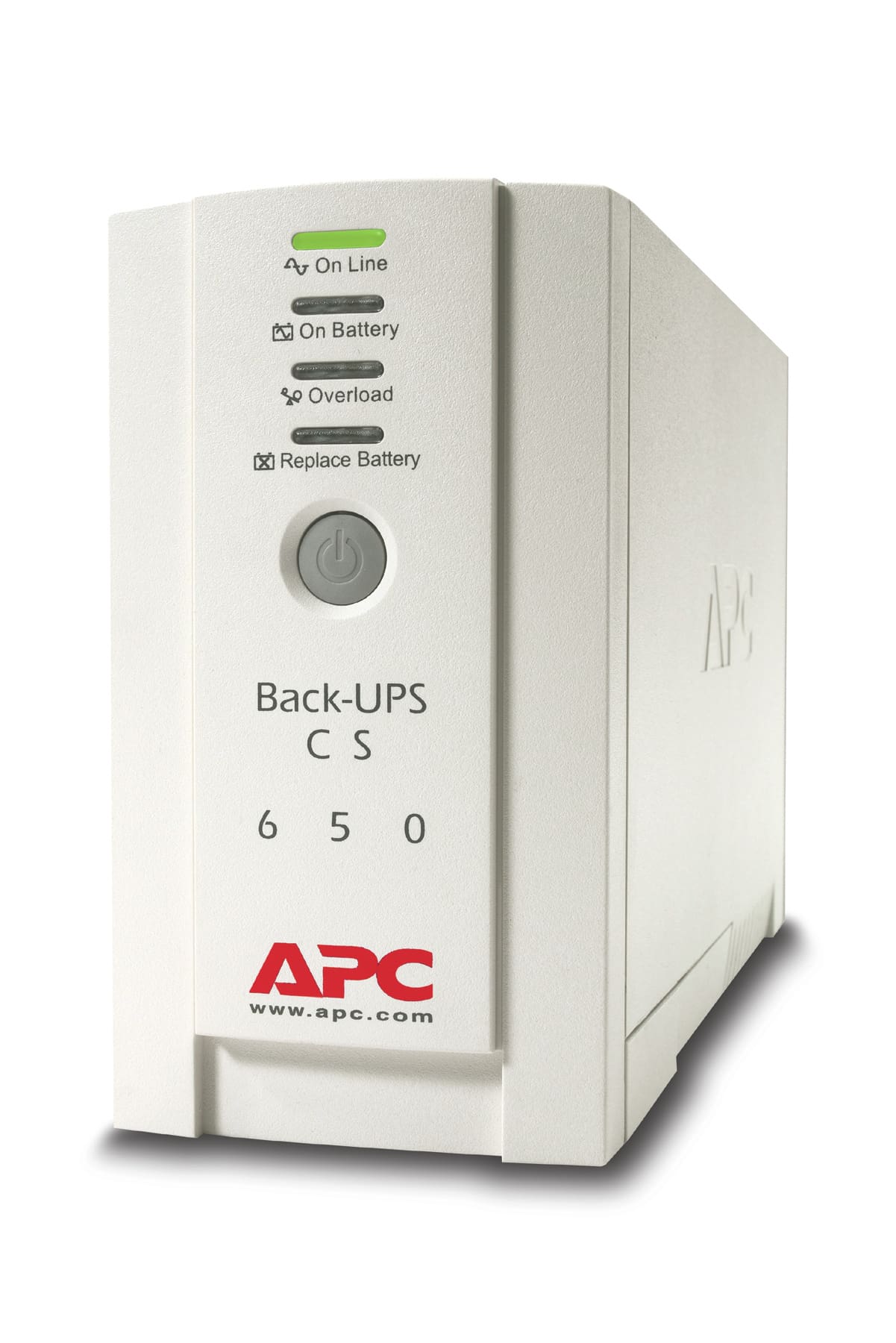

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
| Feature |
Feature Value |
| UPS topology |
Standby (Offline) |
| Output power capacity |
0.65 kVA |
| Output power |
400 W |
| Waveform |
Sine |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
286 V |
| Input frequency |
50/60 Hz |
| Output frequency regulation |
47 – 63 Hz |
| Maximum current |
7 A |
| Surge energy rating |
310 J |
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Efficiency |
98.9% |
| Noise level |
45 dB |
| Surge protection |
Yes |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Low battery alarm, Overload alarm |

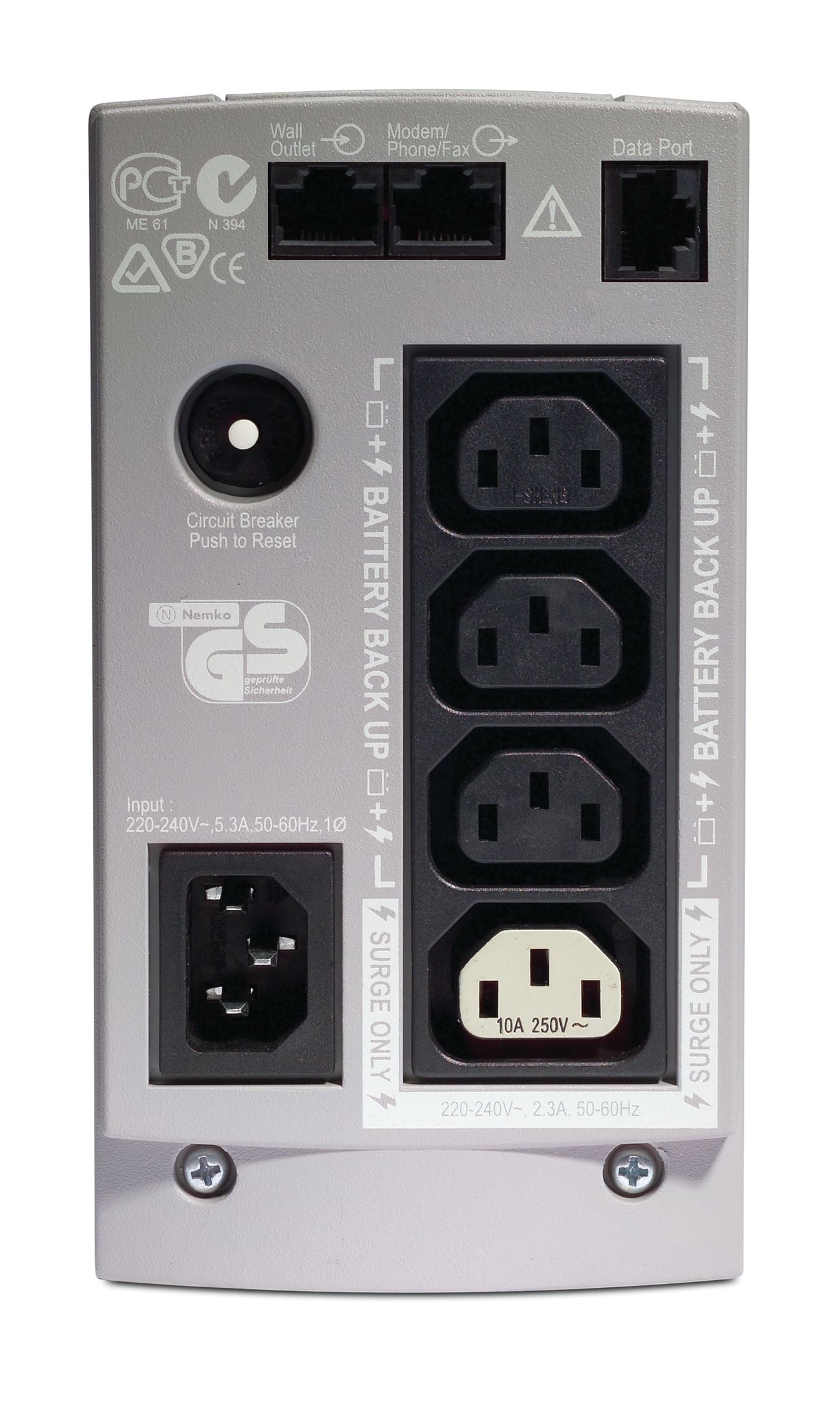

| AC outlet types |
C13 coupler, IEC 60320 |
| Power plug |
C14 coupler |
| AC outlets quantity |
4 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Yes |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
9 Ah |
| Battery capacity |
111 VAh |
| Battery voltage |
12 V |

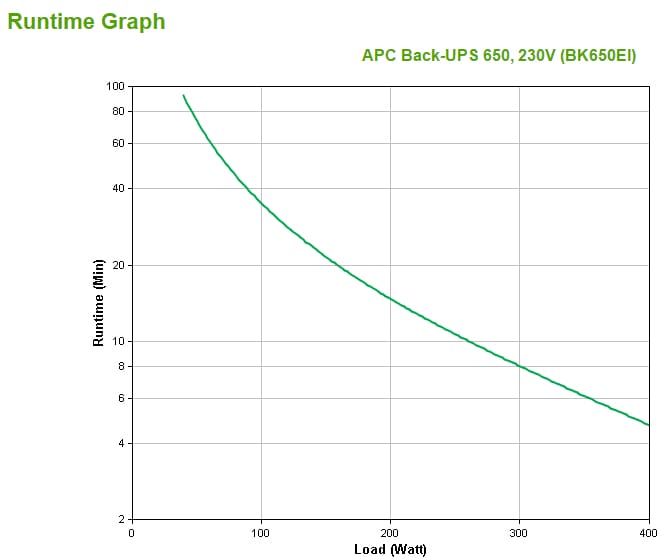

| Typical backup time at full load |
4.7 min |
| Typical backup time at half load |
14.7 min |
| Battery life (max) |
6 year(s) |
| Battery recharge time |
8 h |
| Automatic battery test |
Yes |
| Replacement battery cartridge |
1 |
| Form factor |
Tower |
| Product colour |
Beige |
| Cable length |
1.8 m |
| LED indicators |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-15 – 45 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating altitude |
0 – 3048 m |
| Non-operating altitude |
0 – 15240 m |
| Compliance certificates |
RoHS |
| Certification |
A-tick, C-tick, CE, GOST, NEMKO |
| Cables included |
USB cable |
| Quick installation guide |
Yes |
| Sustainability certificates |
ENERGY STAR, Green Premium |
| Width |
91 mm |
| Depth |
284 mm |
| Height |
165 mm |
| Weight |
6.03 kg |
| Software CD |
Yes |
| Bundled software |
PowerChute Personal Edition |
| Package width |
185 mm |
| Package depth |
415 mm |
| Package height |
494 mm |
| Package weight |
7.31 kg |
| Products per pallet |
48 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Products per master (outer) case |
1 pc(s) |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Filtering |
Yes |
| Packaging content |
Detachable IEC C13 to IEC C14 power cords |
