Description
Cold-start capable
Provides temporary battery power when the utility power is out.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Customizable voltage-transfer points
Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.
Customizable voltage sensitivity
Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

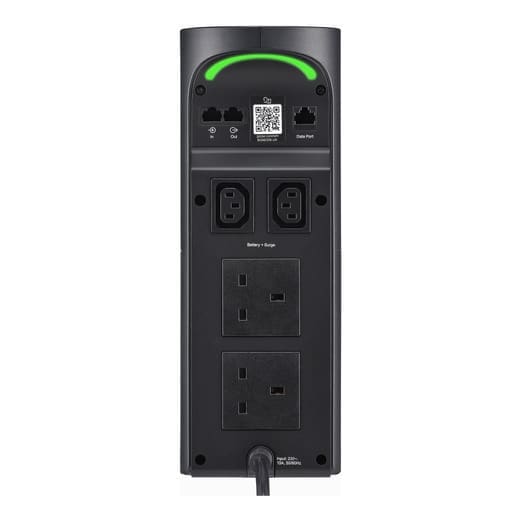

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
| Feature |
Feature Value |
| UPS topology |
Line-Interactive |
| Output power capacity |
2.2 kVA |
| Output power |
1320 W |
| Waveform |
Sine |
| Input operation voltage (min) |
168 V |
| Input operation voltage (max) |
302 V |
| Input frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Maximum current |
12 A |
| Response time |
10 ms |
| Noise level |
45 dB |
| AC outlet types |
IEC 60320, Type G (BS 1363) |
| Power plug |
Type G |
| AC outlets quantity |
4 AC outlet(s) |
| USB port |
Yes |
| Battery technology |
Lead-Acid |
| Battery voltage |
24 V |
| Typical backup time at full load |
0.5 min |
| Typical backup time at half load |
6.75 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
16 h |
| Automatic battery test |
Yes |
| Cold start |
Yes |
| Form factor |
Tower |
| Product colour |
Black |
| Cable length |
1.5 m |
| Display type |
LCD |
| International Protection (IP) code |
IP20 |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-15 – 40 °C |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage relative humidity (H-H) |
0 – 95% |
| Width |
104 mm |
| Depth |
409 mm |
| Height |
292 mm |
| Weight |
12.3 kg |
| Package width |
355 mm |
| Package depth |
480 mm |
| Package height |
155 mm |
| Package weight |
14.5 kg |
