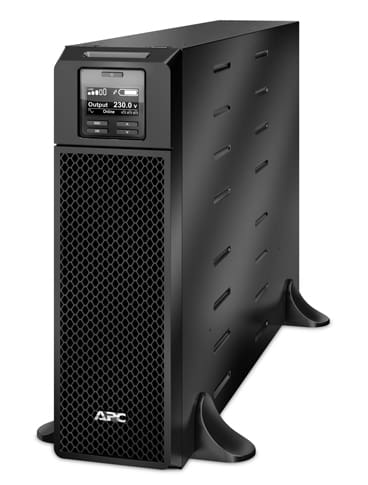

APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Part No:
SRT5KXLI
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£3,853.95
£4,624.74
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 2 left.

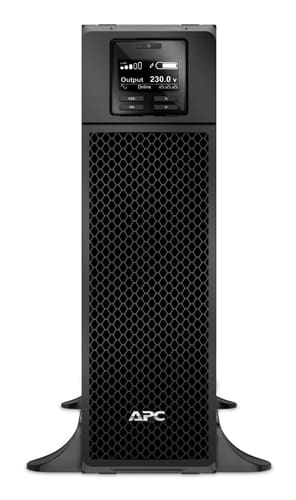

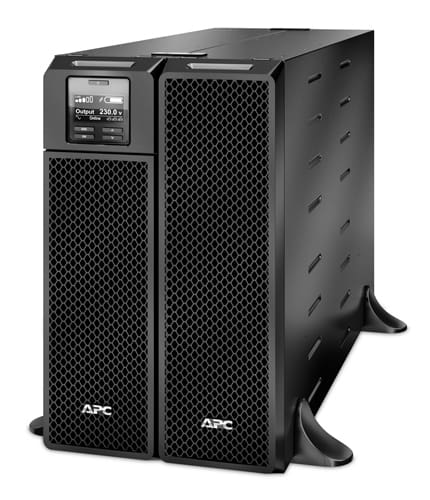

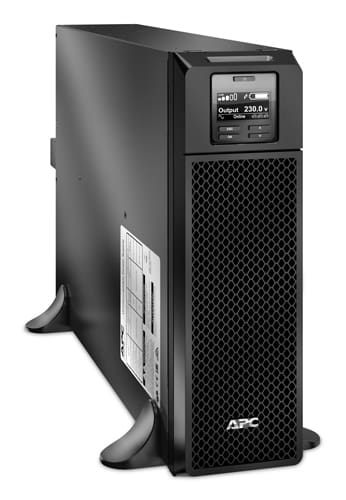

APC Smart-UPS SRT 5000VA 230V

2 in stock (can be backordered)

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: SRT5KXLI Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
APC

Related products

Description

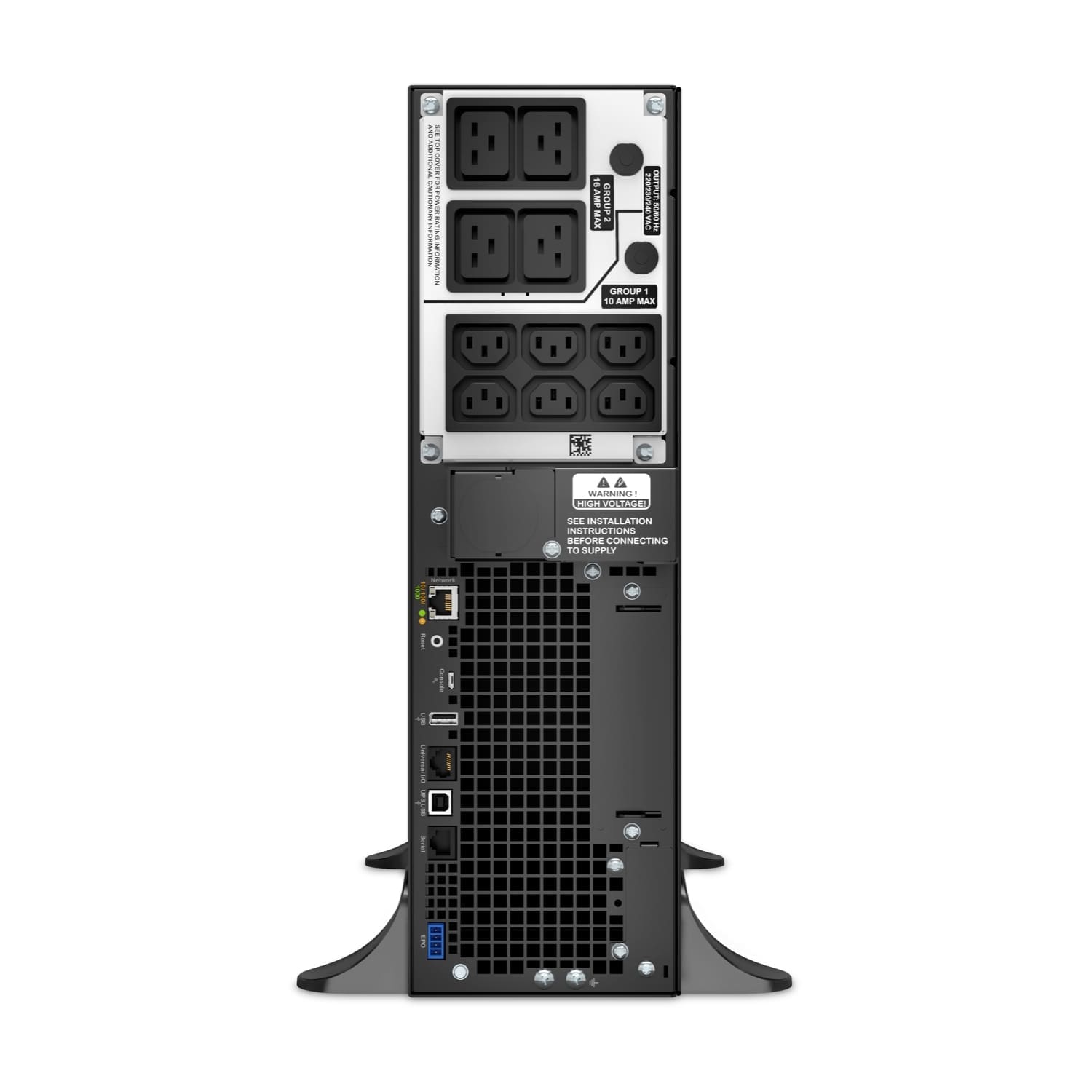

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Feature Feature Value
UPS topology Double-conversion (Online)
Output power capacity 5 kVA
Output power 4500 W
Waveform Sine
Input operation voltage (min) 100 V
Input operation voltage (max) 275 V
Input frequency 40 – 70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency regulation 50/60 Hz
Surge energy rating 480 J
Efficiency 94.1%
Crest factor 3:1
Emergency Power Off (EPO) Yes
Noise level 55 dB
Surge protection Yes
Audible alarm(s) Yes
Auto-restart Yes
AC outlet types C13 coupler, C19 coupler
Power plug Hardwire
AC outlets quantity 12 AC outlet(s)
Number of output IEC jumpers 2
USB port Yes
Serial interface Yes
Serial interface type RJ-45
SmartSlot Yes
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 845 VAh

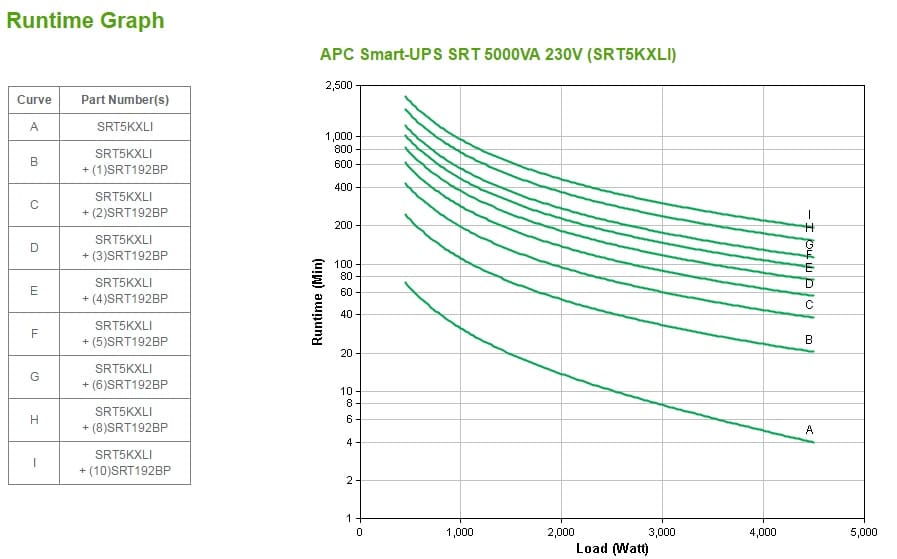

Typical backup time at full load 4 min
Typical backup time at half load 11.8 min
Battery life (max) 5 year(s)
Battery recharge time 1.5 h
Hot-swap battery Yes
Automatic battery test Yes
Cold start Yes
Product colour Black
Display type LCD
LED indicators Status
International Protection (IP) code IP20
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -15 – 45 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 15000 m
Compliance certificates RoHS
Certification REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Cables included USB cable
Quick installation guide Yes
Sustainability certificates ENERGY STAR
Width 130 mm
Depth 719 mm
Height 432 mm
Weight 54.4 kg
Temperature sensor Yes
Warranty card Yes
Software CD Yes
Package width 610 mm
Package depth 960 mm
Package height 330 mm
Package weight 63.6 kg
Products per pallet 6 pc(s)
Harmonized System (HS) code 85078000
Total carbon footprint (kg of CO2e) 8386.06
Packaging content Comms cable
Removable support feet
Web/SNMP Management Card
