Description

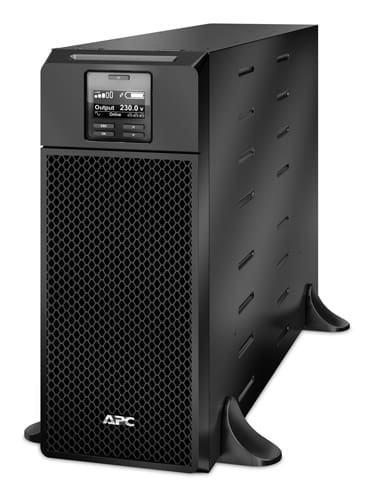

APC SRT6KXLI Smart-UPS SRT 6000VA UK Price
APC Smart-UPS On-Line,6000 Watts /6000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, Warranty card
| Feature |
Feature Value |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
6 kVA |
| Output power |
6000 W |
| Waveform |
Sine |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Input frequency |
40 – 70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
50/60 Hz |
| Surge energy rating |
480 J |
| Number of output phases |
1 |
| Efficiency |
94.4% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Y |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
55 dB |
| Surge protection |
Y |
| Audible alarm(s) |
Y |
| Auto-restart |
Y |

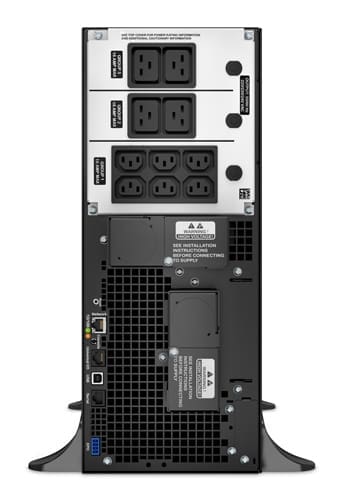

| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
Terminal |
| AC outlets quantity |
10 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Y |
| Serial interface |
Y |
| Serial interface type |
RJ-45 |
| SmartSlot |
Y |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
902 VAh |
| Typical backup time at full load |
2.5 min |
| Typical backup time at half load |
8.7 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
1.5 h |
| Hot-swap battery |
Y |
| Automatic battery test |
Y |
| Cold start |
Y |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Display type |
LCD |
| LED indicators |
Status |
| International Protection (IP) code |
IP20 |
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-15 – 45 °C |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating altitude |
0 – 3000 m |
| Non-operating altitude |
0 – 15000 m |
| Sustainability certificates |
RoHS, ENERGY STAR |
| Harmonized System (HS) code |
85078000 |
| Width |
719 mm |
| Depth |
174 mm |
| Height |
432 mm |
| Weight |
60 kg |
| Package width |
610 mm |
| Package depth |
960 mm |
| Package height |
370 mm |
| Package weight |
67 kg |
| Cables included |
USB cable |
| Temperature sensor |
Y |
| Quick installation guide |
Y |
| Warranty card |
Y |
| Software CD |
Y |
| Products per pallet |
6 pc(s) |
| Packaging content |
Removable support feet
Web/SNMP Management Card |
