ATEN 230V 50/60Hz, 1500VA/1500W, 9A

Part No:

OL1500HV

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

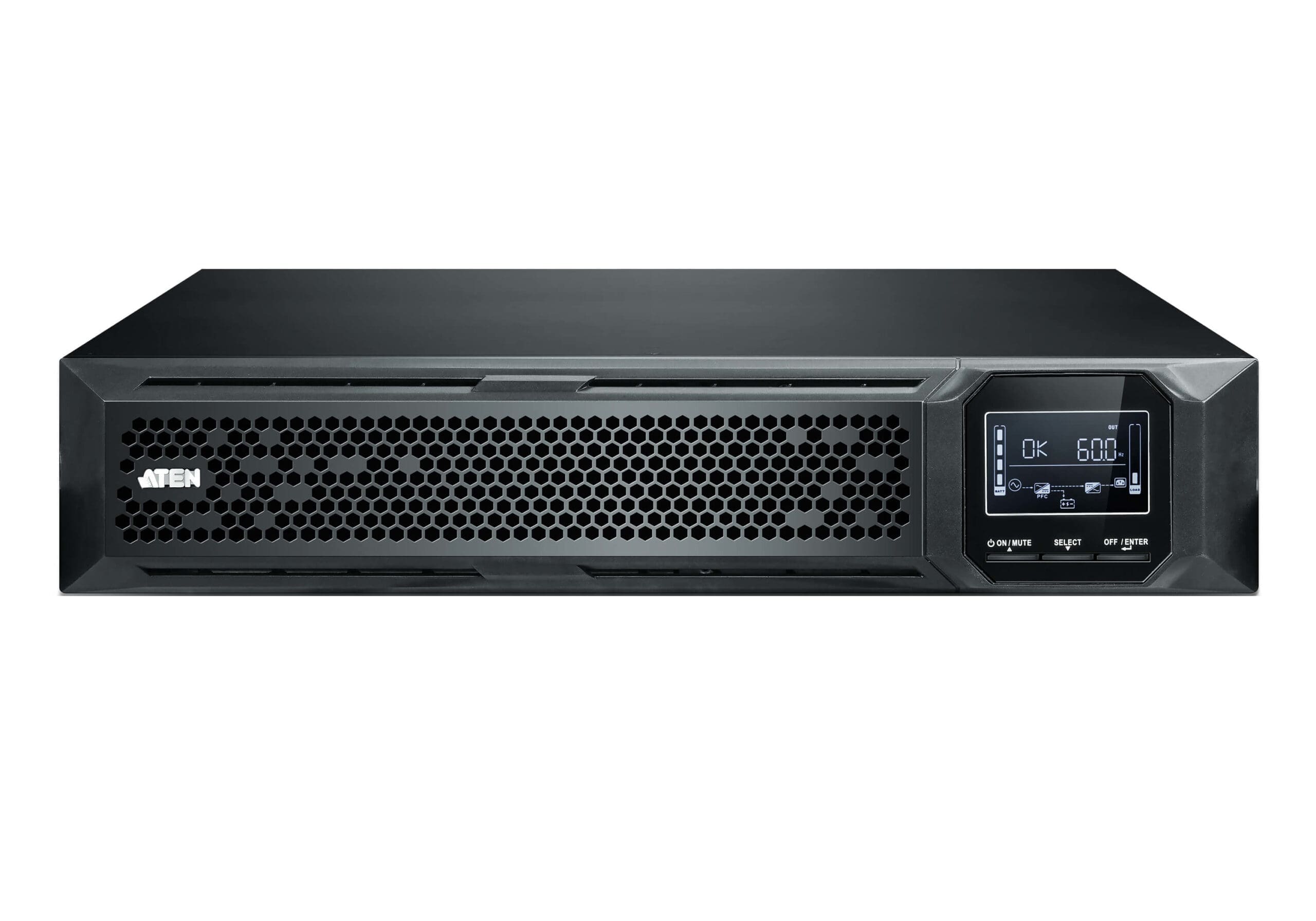

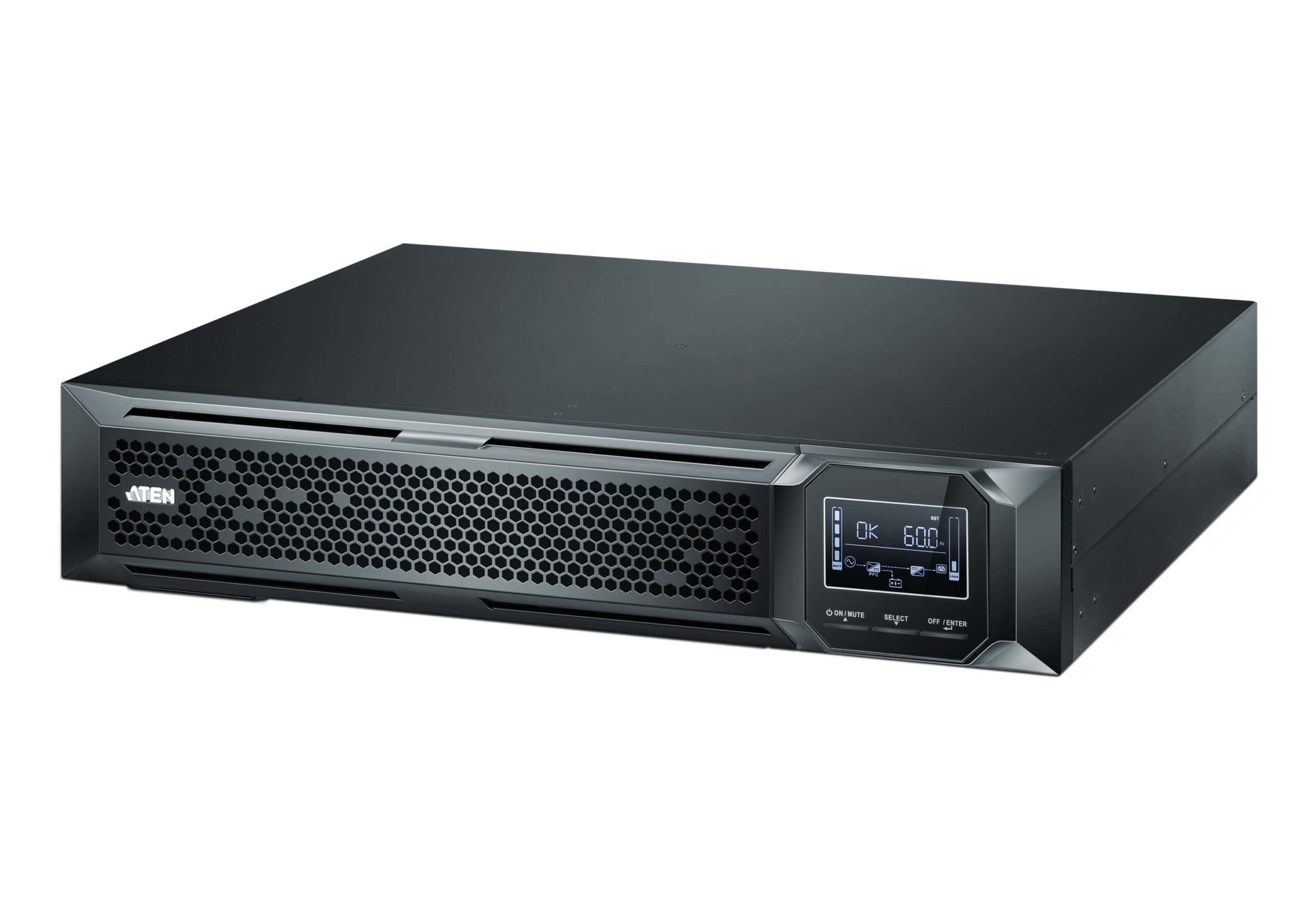

2U 1.5KVA (1500VA) Professional Online UPS

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: OL1500HV Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions

Feature Feature Value
UPS topology Double-conversion (Online)
Output power capacity 1.5 kVA
Output power 1500 W
Waveform Sine
Input operation voltage (min) 110 V
Input operation voltage (max) 300 V
Input frequency 40 – 70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Response time 4 ms
Efficiency 88%
Efficiency (ECO mode) 96%
Crest factor 3:1
ECO mode Yes
Noise level 50 dB
AC outlet types C13 coupler
Power plug C14 coupler
AC outlets quantity 8 AC outlet(s)
USB port Yes
USB 2.0 ports quantity 1
USB port type USB Type-B
Serial interface Yes
Serial interface type RS-232
Serial ports quantity 1
RS-232 ports 1
Ethernet LAN (RJ-45) ports 2
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 9 Ah
Battery voltage 36 V
Number of battery cells 3
Typical backup time at full load 2.96 min
Typical backup time at half load 10.3 min
Battery recharge time 3 h
Charging current 2 A
Cold start Yes
Form factor Rackmount/Tower
Product colour Black
Rack capacity 2U
Cooling type Active
Built-in fan Yes
LED indicators Yes
Certification CE
RoHS
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 50 °C
Operating relative humidity (H-H) 20 – 90%
Storage relative humidity (H-H) 10 – 95%
Width 88 mm
Depth 438 mm
Height 410 mm
Weight 15.9 kg
Package width 88 mm
Package depth 438 mm
Package height 410 mm
Package weight 20.9 kg
Cables included Output power cable, Power load cable, RS-232, USB cable
Manual Yes
Master (outer) case net weight 15.9 kg
Harmonized System (HS) code 85078000
Master (outer) case width 240 mm
Master (outer) case length 500 mm
Master (outer) case height 600 mm
Master (outer) case gross weight 20.9 kg
Products per master (outer) case 1 pc(s)

Additional information

UPS topology

Double-conversion (Online)
Output power

1500 W
Input frequency

40/70 Hz
Efficiency

88%
Crest factor

3:1
Noise level

50 dB
Power plug

C14 coupler
USB port

Yes
USB port type

USB Type-B
Serial interface type

RS-232
RS-232 ports

1
Battery technology

Sealed Lead Acid (VRLA)
Battery voltage

36 V
Battery recharge time

3 h
Cold start

Yes
Product colour

Black
Cooling type

Active
LED indicators

Yes
Operating temperature (T-T)

0 – 40 °C
Width

88 mm
Height

410 mm
Package width

88 mm
Package height

410 mm
Cables included

Output power cable, Power load cable, RS-232, USB cable
Master (outer) case width

240 mm
Master (outer) case height

600 mm
Output power capacity

1.5 kVA
Waveform

Sine
Response time

4 ms
Efficiency (ECO mode)

96%
ECO mode

Yes
AC outlet types

C13 coupler
AC outlets quantity

8 AC outlet(s)
USB 2.0 ports quantity

1
Serial interface

Yes
Serial ports quantity

1
Ethernet LAN (RJ-45) ports

2
Battery capacity

9 Ah
Number of battery cells

3
Charging current

2 A
Form factor

Rackmount/Tower
Rack capacity

2U
Built-in fan

Yes
Certification

CE RoHS
Storage temperature (T-T)

-20 – 50 °C
Depth

438 mm
Weight

15.9 kg
Package depth

438 mm
Package weight

20.9 kg
Manual

Yes
Harmonized System (HS) code

85078000
Master (outer) case length

500 mm

Brand

Aten
