ATEN 230V 50/60Hz, 3000VA/3000W, 9Ah

Part No:

OL3000HV

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

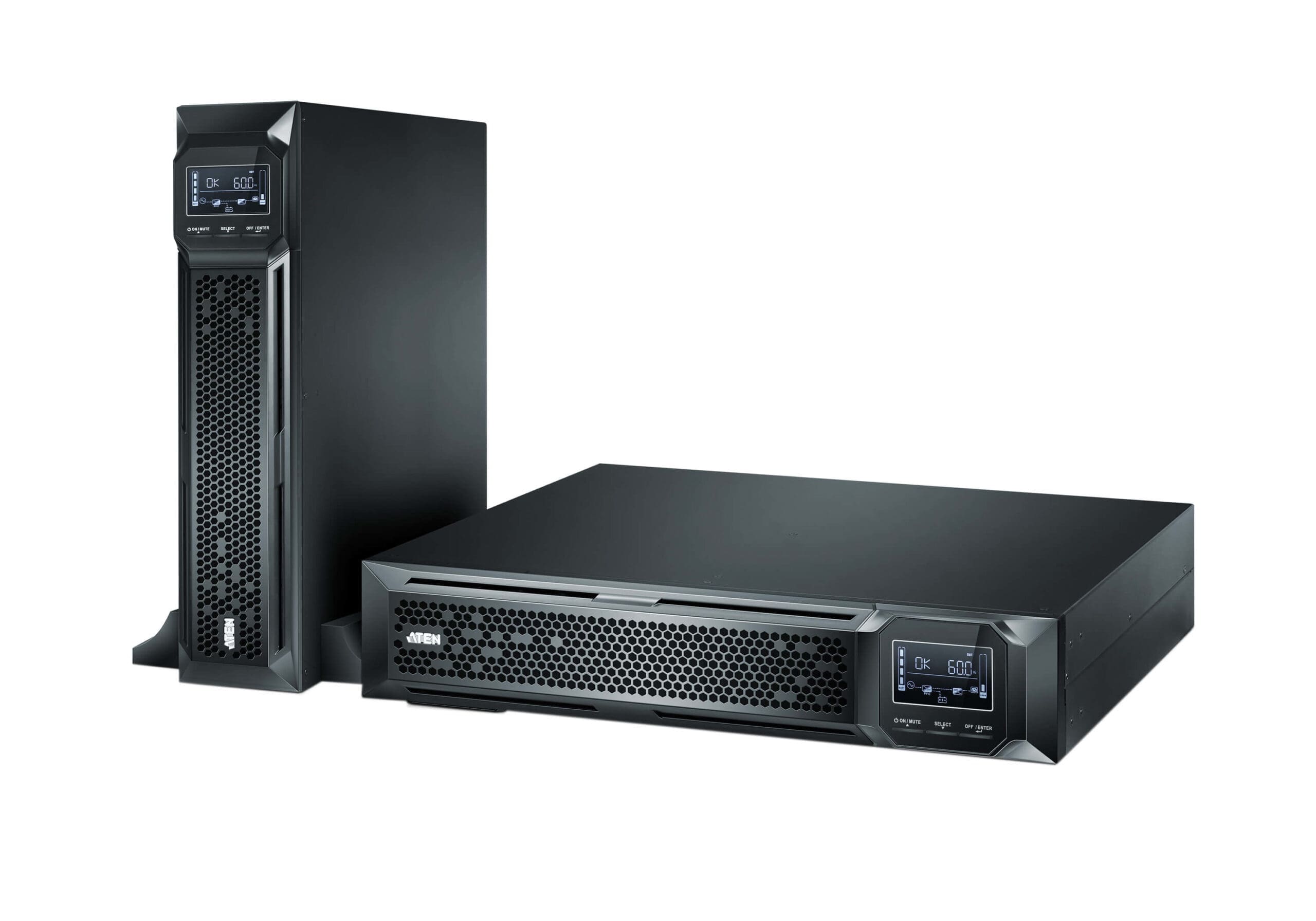

2U 3KVA (3000VA) Professional Online UPS

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: OL3000HV Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions

Feature Feature Value
UPS topology Double-conversion (Online)
Output power capacity 3 kVA
Output power 3000 W
Waveform Sine
Input operation voltage (min) 110 V
Input operation voltage (max) 300 V
Input frequency 40/70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Response time 4 ms
Efficiency 90%
Efficiency (ECO mode) 96%
Crest factor 3:1
ECO mode Yes
Noise level 50 dB
AC outlet types C13 coupler, C19 coupler
Power plug C20 coupler
AC outlets quantity 9 AC outlet(s)
USB port Yes
USB 2.0 ports quantity 1
USB port type USB Type-B
Serial interface Yes
Serial interface type RS-232
Serial ports quantity 1
RS-232 ports 1
Ethernet LAN (RJ-45) ports 2
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 9 Ah
Battery voltage 72 V
Number of battery cells 6
Number of batteries supported 6
Typical backup time at full load 2.96 min
Typical backup time at half load 10.1 min
Battery recharge time 3 h
Charging current 2 A
Cold start Yes
Form factor Rackmount/Tower
Product colour Black
Rack capacity 2U
Cooling type Active
Built-in fan Yes
LED indicators Yes
Certification CE
RoHS
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 50 °C
Operating relative humidity (H-H) 20 – 90%
Storage relative humidity (H-H) 10 – 95%
Width 438 mm
Depth 88 mm
Height 630 mm
Weight 27.6 kg
Package width 88 mm
Package depth 438 mm
Package height 630 mm
Package weight 34.8 kg
Cables included Output power cable, Power load cable, RS-232, USB cable
Manual Yes
Master (outer) case net weight 27.6 kg
Harmonized System (HS) code 85078000
Master (outer) case width 600 mm
Master (outer) case length 760 mm
Master (outer) case height 240 mm
Master (outer) case gross weight 34.8 kg
Products per master (outer) case 1 pc(s)

Additional information

UPS topology

Double-conversion (Online)
Output power

3000 W
Input frequency

40/70 Hz
Efficiency

90%
Crest factor

3:1
Noise level

50 dB
Power plug

C20 coupler
USB port

Yes
USB port type

USB Type-B
Serial interface type

RS-232
RS-232 ports

1
Battery technology

Sealed Lead Acid (VRLA)
Battery voltage

72 V
Charging current

2 A
Form factor

Rackmount/Tower
Rack capacity

2U
Built-in fan

Yes
Certification

CE RoHS
Storage temperature (T-T)

-20 – 50 °C
Depth

88 mm
Weight

27.6 kg
Package depth

438 mm
Package weight

34.8 kg
Manual

Yes
Harmonized System (HS) code

85078000
Master (outer) case length

760 mm
Output power capacity

3 kVA
Waveform

Sine
Response time

4 ms
Efficiency (ECO mode)

96%
ECO mode

Yes
AC outlet types

C13 coupler, C19 coupler
AC outlets quantity

9 AC outlet(s)
USB 2.0 ports quantity

1
Serial interface

Yes
Serial ports quantity

1
Ethernet LAN (RJ-45) ports

2
Battery capacity

9 Ah
Number of battery cells

6
Battery recharge time

3 h
Cold start

Yes
Product colour

Black
Cooling type

Active
LED indicators

Yes
Operating temperature (T-T)

0 – 40 °C
Width

438 mm
Height

630 mm
Package width

88 mm
Package height

630 mm
Cables included

Output power cable, Power load cable, RS-232, USB cable
Master (outer) case width

600 mm
Master (outer) case height

240 mm

Brand

Aten
