Description

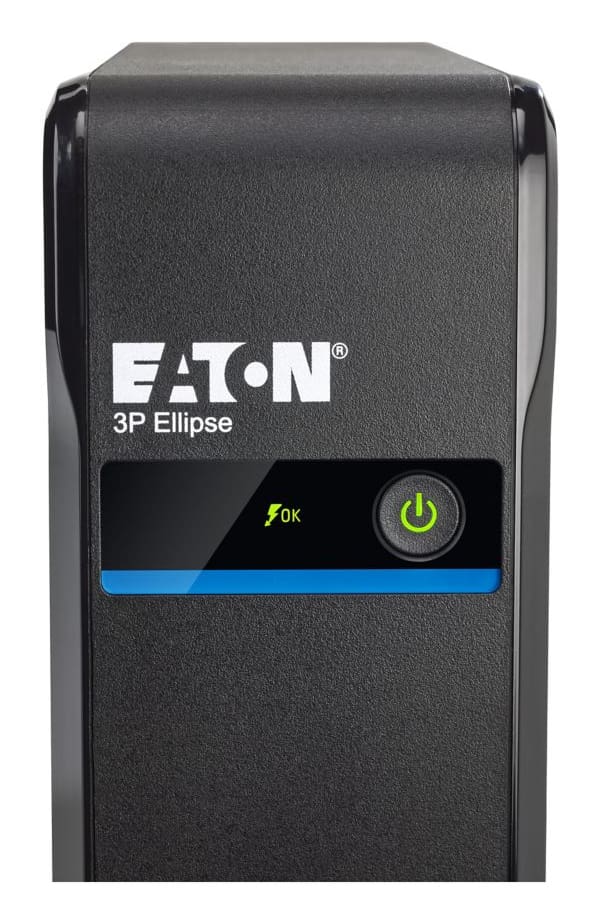

Eaton 3P1300UI 3P Ellipse UPS USB IEC 1300VA 840W
The Eaton 3P1300UI is a 1300 VA / 840 W UPS tower providing reliable backup power and surge protection for desktop PCs and small business equipment. It combines compact design and silent operation with versatile connectivity and easy monitoring.
This offline UPS features 8 output connectors including 4 IEC C13 battery backup and surge protection sockets, plus 4 IEC C13 surge-only sockets. It includes USB communication port for system monitoring and UPS configuration with Eaton UPS Companion software.
Key Features
- Rated 1300 VA / 840 Watts, suitable for desktop and small business devices
- 8 IEC outlets: 4 battery backup with surge protection, 4 surge-only
- USB HID-compliant port for communication and safe system shutdown
- Fanless design for silent operation in office or home environments
- Sealed lead-acid batteries with automatic self-test and cold-start capability
- Battery management with replaceable batteries and deep-discharge protection
- Dimensions: 312 x 81 x 305 mm, Weight: 7 kg
- Voltage range: 184-264 V (adjustable 161-284 V), Frequency: 50-60 Hz
- Noise level <25 dB at 1 meter for quiet operation
- 3-year warranty on electronics, 2-year on batteries
System Requirements
- Power source: Single phase 230 V AC, 50/60 Hz
- Compatible Eaton UPS Companion software for monitoring and configuration
- Environment: Operating temperature 0° to 40°C, Relative humidity 0-95% non-condensing
- Space for tower UPS placement, desktop or floor
- USB port required on computer system for UPS communication
- Periodic battery replacement recommended
- Installation by qualified personnel recommended for optimal setup
- Access to Eaton support and service resources to maximize UPS lifespan
- IEC C14 input plug and IEC C13 outputs for power connectivity
- System compatibility with Windows, Linux, and Mac via Eaton software
Case Use Example
A small graphic design studio uses the Eaton 3P1300UI UPS to protect its workstations and network during power interruptions. This ensures no loss of unsaved work and protects hardware during outages and surges.
The integrated Eaton UPS Companion software provides automated safe shutdown, and the unit’s quiet operation makes it unobtrusive in the office environment.
Eaton 3P1300UI – Questions and Answers
What is the UPS capacity?
1300 VA with 840 Watt output power.
How many outlets are available?
Eight outlets: four with battery backup and surge protection, four surge-only.
Does it support USB communication?
Yes, it has a USB HID-compliant port for UPS monitoring and system shutdown.
Is it suitable for quiet environments?
Yes, fanless design keeps noise levels below 25 dB at 1 meter.
What warranty does it include?
Three years on electronics and two years on battery.
Summary
The Eaton 3P1300UI offers reliable, silent backup power and surge protection, making it an ideal UPS for small offices and home workstations. With USB monitoring and robust battery management, it safeguards equipment and data during power disruptions.
| Feature |
Feature Value |
| UPS topology |
Standby (Offline) |
| Output power capacity |
1.3 kVA |
| Output power |
840 W |
| Waveform |
Stepwise |
| Input operation voltage (min) |
161 V |
| Input operation voltage (max) |
284 V |
| Input frequency |
46/70 Hz |
| Output operation voltage (min) |
161 V |
| Output operation voltage (max) |
284 V |
| Output frequency |
50/60 Hz |
| Power consumption (average operating) |
26 W |
| Number of input phases |
1 |
| Number of output phases |
1 |
| Efficiency |
97% |
| Efficiency (ECO mode) |
97% |
| Output power factor |
0.6 |
| Noise level |
25 dB |
| Surge protection |
Yes |
| Auto shut-off |
Yes |
| AC outlet types |
C13 coupler |
| AC outlets quantity |
8 AC outlet(s) |
| USB port |
Yes |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery capacity |
7 Ah |
| Battery voltage |
12 V |
| Form factor |
Tower |
| Product colour |
Black |
| Control type |
Buttons |
| Display type |
LED |
| Operating temperature (T-T) |
0 – 40 °C |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
CB, CE, RoHS, WEEE |
| Certification |
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Ukr
Cm |
| Cables included |
USB cable |
| Quick installation guide |
Yes |
| Width |
81 mm |
| Depth |
312 mm |
| Height |
305 mm |
| Weight |
7 kg |
| Package type |
Box |
| Input connection type |
C14 |
| Nominal input voltage |
220-240 V |
| Relative humidity |
0 – 95% |
