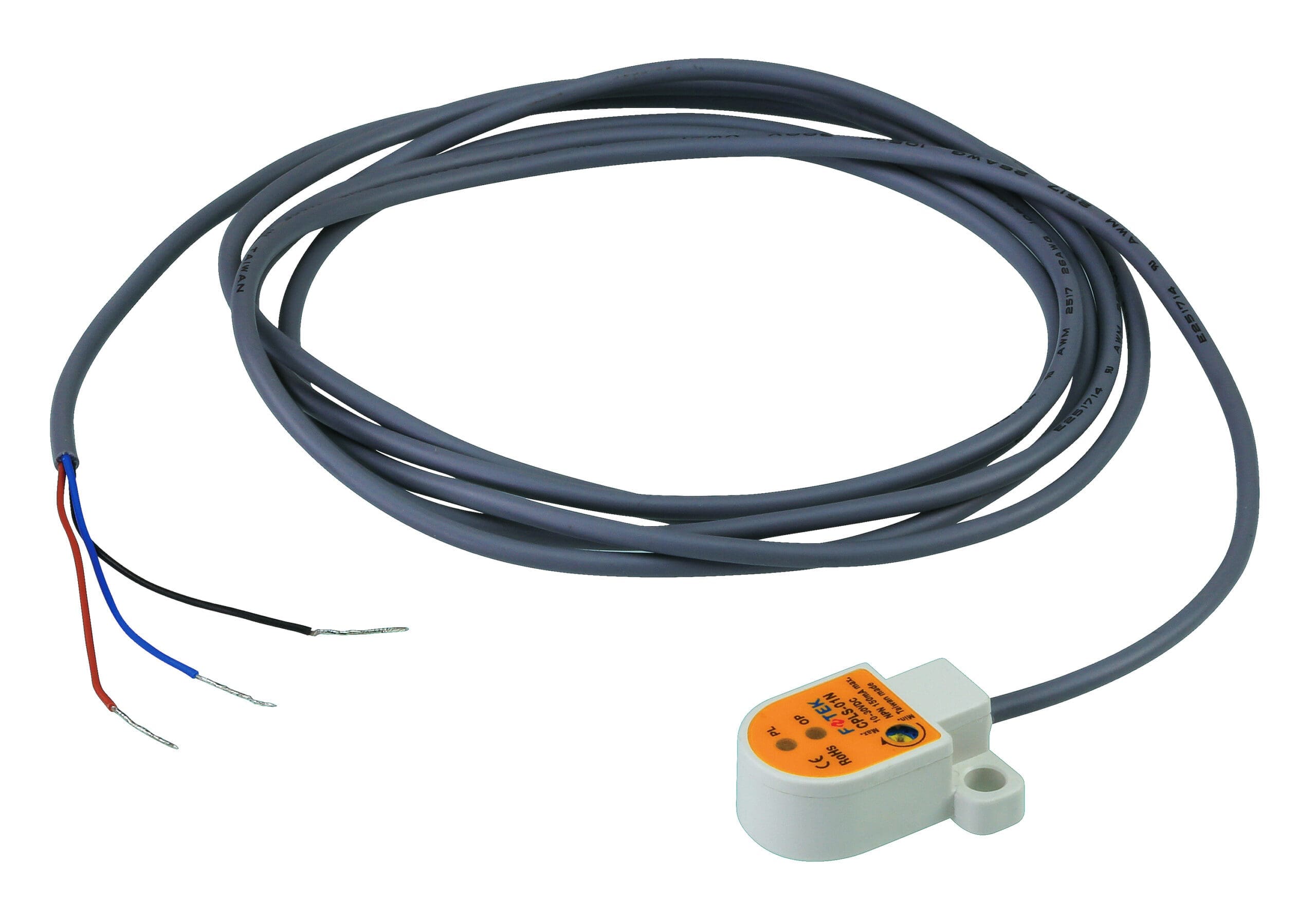

ATEN Capacitive Leakage Sensor

Part No:
EA1540
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

Capacity Leakage Sensor

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: EA1540 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

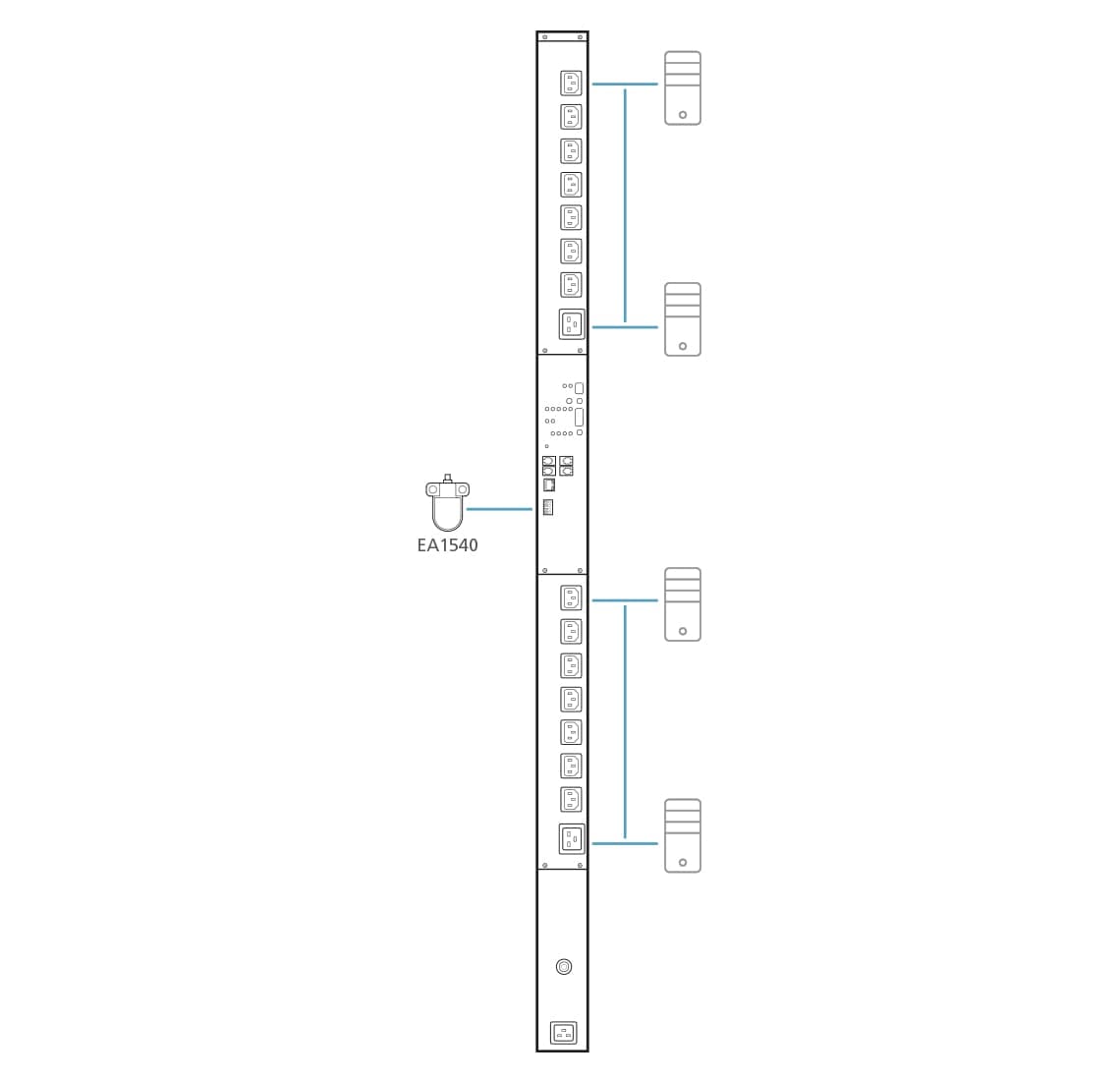

The EA1540 Capacitive Leakage Sensor can automatically detect and notify users of any liquid in close proximity with the connected PDU. When any liquid is detected, the EA1540’s beeper sounds, and its red LED lights up, calling for immediate attention and response, thereby effectively decreases the risks of damages to both the PDU and powered devices. It is ideal for PDU installation environments such as subway data centers located underground.

Suitable for a wide range of applications, the EA1540 features a compact and anti-interference design, allowing it to avoid external signals from affecting its normal operations while saving valuable space for critical work. Built with corrosion-resistant materials, it is adaptable even to hazardous environments.

The EA1540 is the perfect solution for those who need to ensure PDU’s daily operations and prevent any potential risks of device damages in advance.

Feature Feature Value
Product type Sensor & alert system
Product colour Black, Grey
Connectivity technology Wired
Housing material Polypropylene (PP)
Dielectric strength 2500 V
Insulation resistance 100 MΩ
Insulation resistance (DC) 500 V
AWG wire size 22
International Protection (IP) code IP66
Power source type DC
AC input voltage 10 – 30 V
Nominal current output 0.15 A
Power consumption 20 mA
Package width 85 mm
Package depth 110 mm
Package height 45 mm
Package weight 1.25 kg
Country of origin Taiwan
Package volume 566.34 cm³
Master (outer) case volume 25485.16 cm³
Master (outer) case width 380 mm
Master (outer) case length 140 mm
Master (outer) case height 480 mm
Master (outer) case gross weight 720 g
Products per master (outer) case 12 pc(s)

Additional information

Product type

Sensor & alert system
Connectivity technology

Wired
Dielectric strength

2500 V
Insulation resistance (DC)

500 V
AC input voltage

10 – 30 V
Power consumption

20 mA
Package depth

110 mm
Package weight

1.25 kg
Package volume

566.34 cm³
Master (outer) case width

380 mm
Master (outer) case height

480 mm
Product colour

Black, Grey
Housing material

Polypropylene (PP)
Insulation resistance

100 MΩ
AWG wire size

22
Power source type

DC
Nominal current output

0.15 A
Package width

85 mm
Package height

45 mm
Country of origin

Taiwan
Master (outer) case volume

25485.16 cm³
Master (outer) case length

140 mm

Brand

Aten
