Description

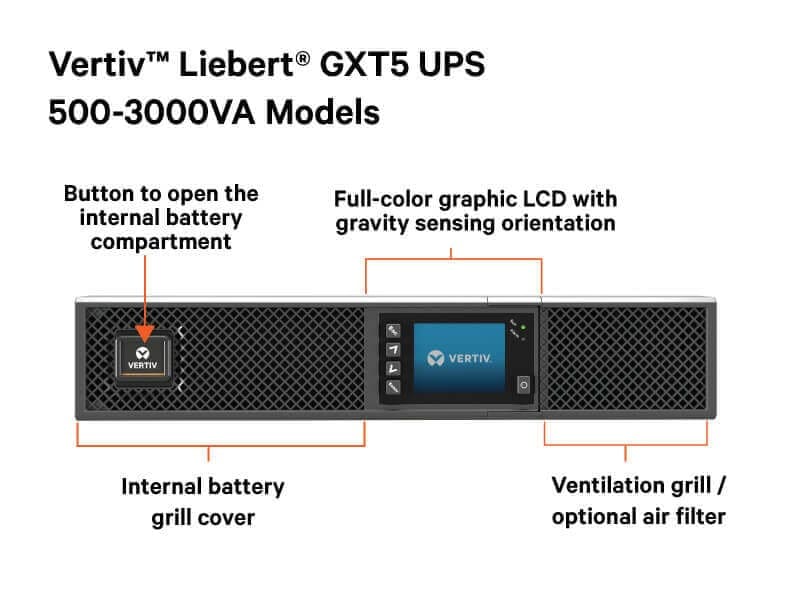

The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.
| Feature |
Feature Value |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
3 kVA |
| Output power |
3000 W |
| Waveform |
Pure sine |
| Input operation voltage (min) |
115 V |
| Input operation voltage (max) |
288 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Output voltage regulation |
3% |
| Number of input phases |
1 |
| Number of output phases |
1 |
| Efficiency |
95% |
| Efficiency (On-line mode) |
95% |
| Efficiency (ECO mode) |
98% |
| Input power factor |
0.99 |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
58 dB |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |

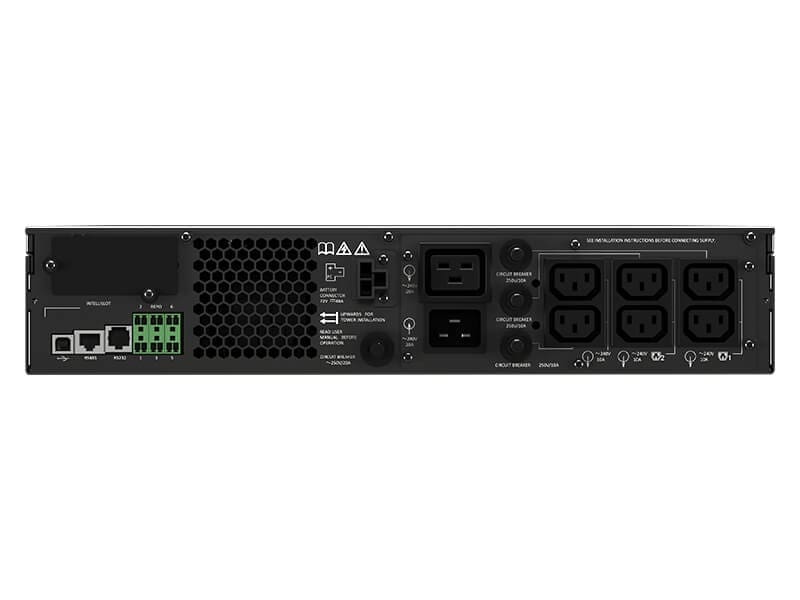

| AC outlet types |
C13 coupler, C19 coupler |
| AC outlets quantity |
7 AC outlet(s) |
| USB port |
Yes |
| Serial interface type |
RS-232, RS-485 |
| Serial ports quantity |
1 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
9 VAh |
| Battery voltage |
12 V |
| Typical backup time at full load |
3 min |
| Typical backup time at half load |
9 min |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Display type |
LCD |
| International Protection (IP) code |
IP20 |
| Safety |
IEC62040-1:2008, GS; UL1778, c-UL |
| Certification |
IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6);
FCC 15 A
CISPR22 A(RFI) |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-15 – 40 °C |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating altitude |
0 – 3000 m |
| Sustainability certificates |
RoHS, ENERGY STAR |
| Width |
430 mm |
| Depth |
540 mm |
| Height |
85 mm |
| Weight |
28.2 kg |
| Package width |
517 mm |
| Package depth |
617 mm |
| Package height |
262 mm |
| Package weight |
33 g |
| Harmonized System (HS) code |
85078000 |
| Battery type |
VRLA |
| Output connections |
IEC320 C13 & C19 |
| Input connection type |
C20 |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Overload protection |
Yes |
| Bypass |
Yes |
| Non-operating relative humidity (non-condensing) |
0 – 95% |
