Description

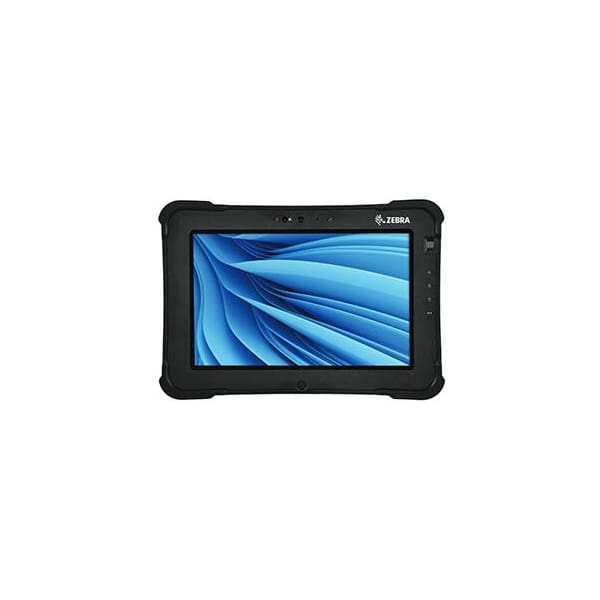

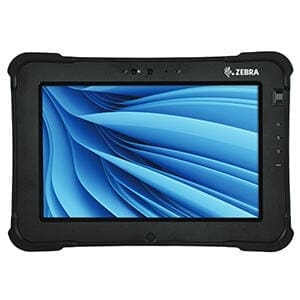

A VERSATILE TABLET PLATFORM RUGGED TO THE CORE
The Zebra L10 rugged platform offers a variety of tablet configurations and a shared accessory ecosystem that sets a standard in office, vehicle and field-based computing.
Whether your mobile workers prefer a traditional tablet form factor (XSlate L10), a tablet with a rigid-handle and built-in barcode reader (XPad L10), or a 2-in-1 laptop alternative with a detachable keyboard and KickStrap accessories with the XSlate (XBook L10), the flexibility of the Zebra L10 tablets ensures that your workers have the right computing tool for their job. Choose the right operating system for your business, whether that be Windows or Android. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.
GET THROUGH TASKS FASTER
With more advanced CPU options, the performance-driven L10 rugged tablet platform is the right fit for your organisation, whatever your operating system. Both operating systems offer superior power for the blazing-fast application performance you need out in the field or in your facility. The L10axe Windows is equipped with the latest 11th generation Intel processors, while the L10 Android features the Qualcomm SD660 processors. The L10 is also available with a range of RAM and storage options for every business and agency application.
EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, Wi-Fi, GPS and cellular technologies to provide uninterrupted connectivity. Keep your workforce connected wherever they are with the advanced wireless connectivity of the L10axe Windows with support for Wi-Fi 6E and optional 5G/4G and the L10 Android with 802.11ac Wi-Fi and optional 4G. Each L10 rugged tablet can be equipped with workflow-specific tools needed for nearly any application. This includes an optional true serial port, UHF RFID reader (AEI), a built-in barcode reader (XPad only) and more. Front-facing and 13 MP rear-facing high-resolution cameras enable capture of proof-of-condition/delivery, incident documentation, evidence and more.
USE IT VIRTUALLY ANYWHERE
The L10 platform defines the standard of rugged tablets. It is rated for a 6 ft. drop and the L10axe Windows is tested to the latest MIL-STD-810H, while the L10 Android is tested to MIL-STD-810G. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With sunlight viewable reinforced glass displays and an active digitiser option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas mean it’s ideal for mounting in vehicles of all types.
LIGHTWEIGHT FOR EASY TRANSPORT
Whether you opt for Windows or Android, your XSlate L10 will deliver more than enough computing power. It is the smallest and lightest of the L10 family for workers who need the ultimate rugged traditional tablet. Roam far and wide connected to the information and people you need with advanced wireless connectivity. A hot swappable battery is standard, but this tablet will stay powered for over 24 hours with the extended-life, accessory battery.
| Feature |
Feature Value |
| Display diagonal |
25.6 cm (10.1″) |
| Display resolution |
1920 x 1200 pixels |
| Display glass type |
Gorilla Glass |
| Anti-glare screen |
Yes |
| Touchscreen type |
Capacitive |
| HD type |
WUXGA |
| Native aspect ratio |
16:10 |
| Processor manufacturer |
Intel |
| Processor family |
Intel® Pentium® |
| Processor model |
N4200 |
| Processor frequency |
1.1 GHz |
| Processor cores |
4 |
| Processor boost frequency |
2.5 GHz |
| Conflict-Free processor |
Yes |
| Internal memory |
8 GB |
| Internal memory type |
LPDDR4-SDRAM |
| Internal storage capacity |
128 GB |
| Card reader integrated |
Yes |
| Storage media |
SSD |
| Compatible memory cards |
MicroSDXC |
| SSD interface |
Serial ATA |
| Graphics card family |
Intel |
| Graphics card |
HD Graphics 505 |
| Number of built-in speakers |
1 |
| Number of microphones |
2 |
| Audio system |
High Definition (HD) |
| Rear camera type |
Single camera |
| Rear camera resolution (numeric) |
13 MP |
| Front camera |
Yes |
| Auto focus |
Yes |
| Front camera resolution (numeric) |
2 MP |
| Front camera flash |
Yes |
| Mobile network connection |
Yes |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Mobile network generation |
4G |
| 4G standard |
LTE |
| Bluetooth |
Yes |
| Bluetooth version |
4.2 |
| Bluetooth Low Energy (BLE) |
Yes |
| Ethernet LAN |
Yes |
| Near Field Communication (NFC) |
Yes |
| WWAN |
Installed |
| Dual SIM support |
Yes |
| SIM card type |
NanoSIM |
| USB 2.0 Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| SmartCard slot |
Yes |
| Headphone connectivity |
3.5 mm |
| Combo headphone/mic port |
Yes |
| Headphone out |
Yes |
| Form factor |
Slate |
| Product colour |
Black |
| Device type |
Tablet PC |
| Protection features |
Cold resistant, Dust resistant, Explosion proof, Heat resistant, Rain proof, Shock resistant, Temperature proof, Vibration proof, Waterproof |
| Rugged design |
Yes |
| Position location |
Yes |
| Assisted GPS (A-GPS) |
Yes |
| GLONASS |
Yes |
| BeiDou |
Yes |
| GPS (satellite) |
Yes |
| Galileo |
Yes |
| Wi-Fi positioning |
Yes |
| Night mode |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Platform |
Windows |
| Operating system installed |
Windows 10 Pro |
| Operating system architecture |
64-bit |
| Intel Smart Connect Technology |
No |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Embedded options available |
No |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Intel 64 |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Rapid Storage Technology |
No |
| Intel Secure Boot |
Yes |
| Intel Secure Boot Technology version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Small Business Advantage (SBA) version |
0.00 |
| Intel Smart Connect Technology version |
0.00 |
| Intel Smart Response Technology version |
0.00 |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel Trusted Execution Technology |
No |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Battery voltage |
20 V |
| Battery recharge time |
2.75 h |
| Battery life (max) |
9.5 h |
| AC adapter input voltage |
19 V |
| International Protection (IP) code |
IP65 |
| Sustainability certificates |
ENERGY STAR, EPEAT Silver |
| Width |
195.2 mm |
| Depth |
22 mm |
| Height |
280.8 mm |
| Weight |
1.3 kg |
| Compliance certificates |
RoHS, WEEE |
| Operating temperature (T-T) |
-20 – 60 °C |
| Storage temperature (T-T) |
-30 – 70 °C |
| Operating relative humidity (H-H) |
3 – 95% |
| Storage relative humidity (H-H) |
3 – 95% |
| Operating altitude |
0 – 15240 m |
| Drop proof |
183 cm |
| Harmonized System (HS) code |
84713000 |
| Sustainability compliance |
Yes |
