Description
Alcatel-Lucent OmniAccess Stellar AP1311 Indoor Access Point (SKU: OAW-AP1311-RW)

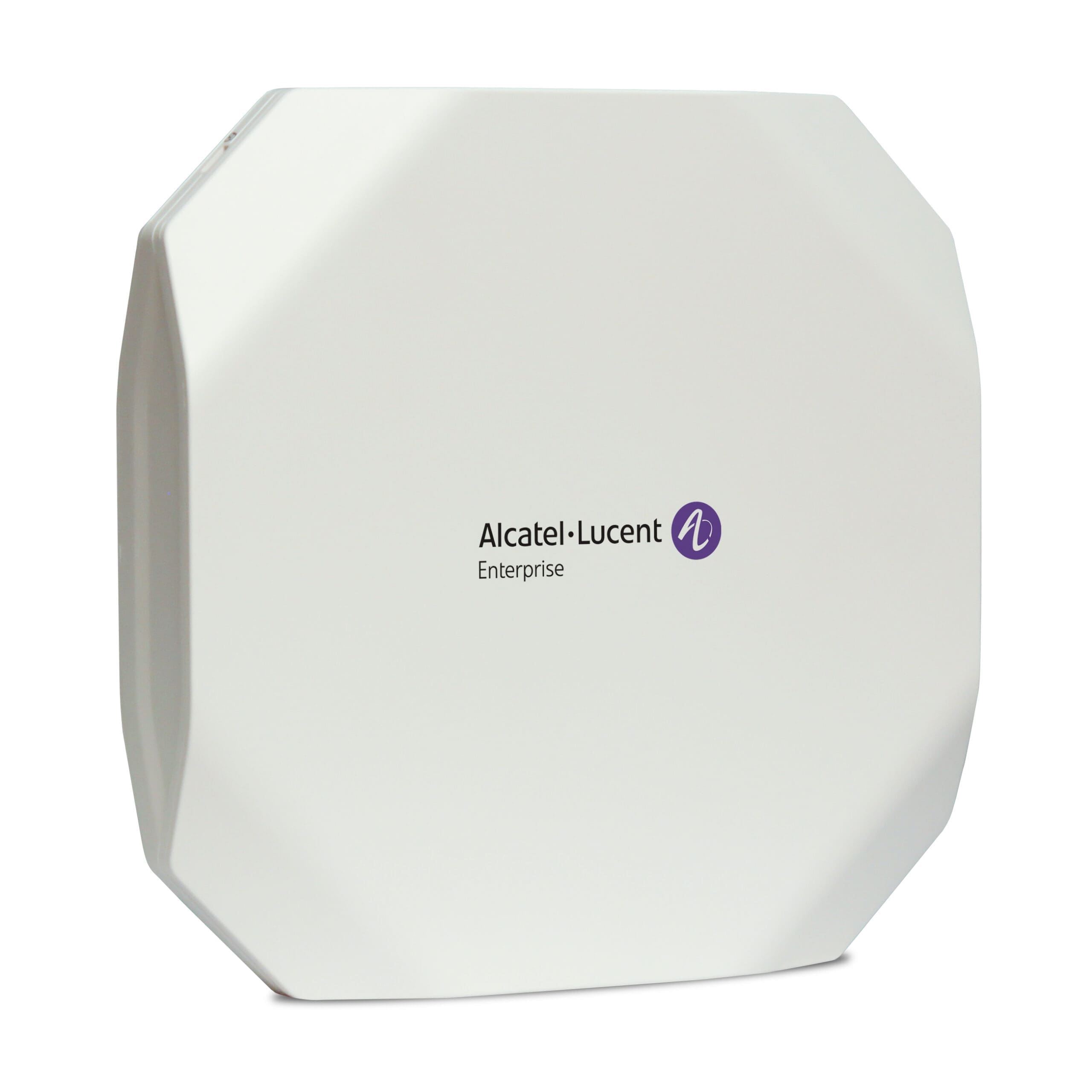

The Alcatel-Lucent OmniAccess Stellar AP1311-RW (SKU: OAW-AP1311-RW) is a compact, cost-effective indoor wireless access point that delivers high-performance connectivity for small and medium-sized businesses. Supporting dual-radio 802.11ac Wave 2 Wi-Fi, it offers reliable throughput, seamless roaming, and ease of deployment in enterprise and hospitality environments.
The AP1311-RW operates in dual-band mode, supporting both 2.4GHz and 5GHz frequencies with MU-MIMO technology for improved client handling. With its simplified management compatibility and PoE support, it ensures flexible installation and consistent wireless coverage in modern workspace and indoor settings.
Key Features
- Dual-radio 802.11ac Wave 2 access point with 2×2 MU-MIMO
- Up to 867 Mbps on 5GHz and 300 Mbps on 2.4GHz (1.167 Gbps aggregate throughput)
- 1 x Gigabit Ethernet port with 802.3af Power over Ethernet (PoE) support
- Adaptive radio management and band steering for enhanced performance
- Supports up to 256 associated clients per AP
- Integrated Bluetooth Low Energy (BLE) radio for IoT/location services
- Secure access with WPA2/WPA3, 802.1X authentication, and MAC filtering
- Wall or ceiling mountable with included mounting kit
- Centralised or distributed management via OmniVista or Express mode
- RW version for Rest of World deployments (excluding North America and Japan)
System Requirements
- 802.3af-compliant PoE network switch or injector (for power)
- Ethernet network infrastructure for uplink and LAN connectivity
- Compatible wireless controller or OmniVista cloud/on-premise platform (optional for management)
- Indoor mounting point (wall or ceiling)
- RW hardware region – intended for use outside North America and Japan
Case Use Example
A small office uses the Alcatel OAW-AP1311-RW access point to provide high-speed, secure Wi-Fi across its workspace. Installed on the ceiling in a central location and powered via PoE, the access point serves employees and guests with stable, dual-band wireless connectivity.
The IT admin uses Express Mode to quickly deploy and manage the AP without requiring a hardware controller. With WPA3 security and band steering, the device automatically optimises connectivity and protects sensitive traffic, making it ideal for resource-conscious installations.
Alcatel OAW-AP1311-RW – Questions and Answers
What wireless speeds does the AP1311 support?
It supports up to 867 Mbps on the 5GHz band and 300 Mbps on the 2.4GHz band, with a combined throughput of up to 1.167 Gbps.
Does this access point support PoE?
Yes, the AP1311 is powered via PoE and supports the IEEE 802.3af standard.
Can the AP1311 be used without a controller?
Yes, it can operate in Instant Mode or Express Mode, allowing standalone deployment without a dedicated controller.
Is this model suitable for deployments in the UK?
Yes, the RW (Rest of World) version is designed for use in the UK and other non-US/non-Japan markets.
What mounting options are available?
The access point includes a mounting kit for wall or ceiling installation.
Summary
The Alcatel-Lucent OmniAccess Stellar AP1311-RW (SKU: OAW-AP1311-RW) is a compact, enterprise-grade access point that delivers reliable dual-band Wi-Fi connectivity for indoor projects. With PoE support, modern security features, and flexible management, it’s ideal for small businesses, hospitality venues, and branch offices needing seamless wireless coverage without complex infrastructure.
| Feature |
Feature Value |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
573 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users |
512 user(s) |
| Bluetooth |
Yes |
| Automatic channel selection |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, QPSK |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security algorithms |
HTTPS, WPA2, WPA3 |
| Number of SSID supported |
16 |
| DHCP snooping |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Access Control List (ACL) |
Yes |
| Web-based management |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
1 |
| DC-in jack |
Yes |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
48 V |
| Power consumption (max) |
19.1 W |
| Placement |
Ceiling, Wall |
| Product colour |
Light grey, White |
| LED indicators |
Yes |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna features |
Integrated antenna |
| Antenna gain level (max) |
3.3 dBi |
| Width |
180 mm |
| Depth |
180 mm |
| Height |
36 mm |
| Weight |
582 g |
| Operating relative humidity (H-H) |
5 – 95% |
| Operating temperature (T-T) |
0 – 45 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Harmonized System (HS) code |
85176990 |
