Description

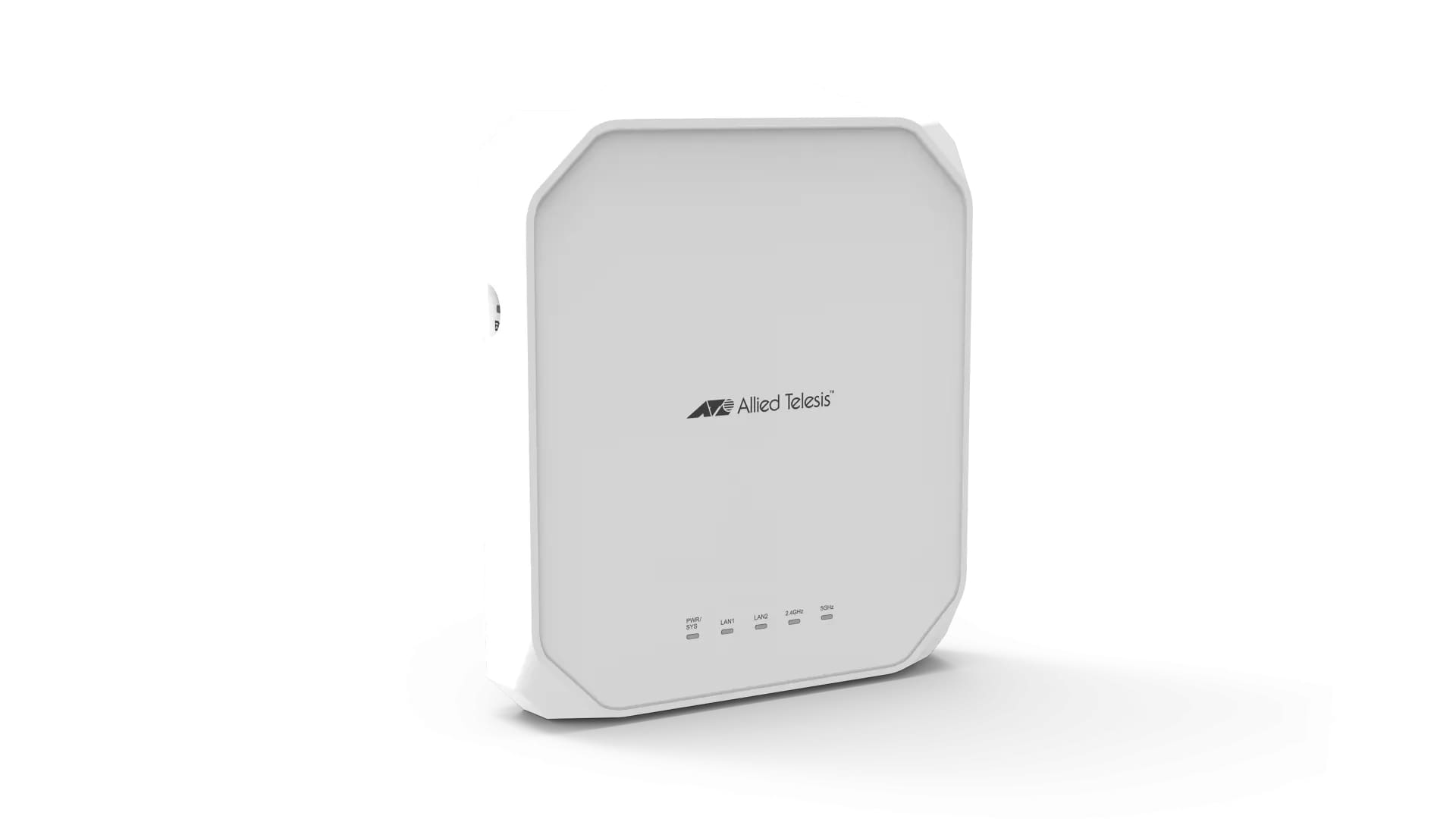

The Allied Telesis Enterprise-class TQ6702 GEN2 hybrid wireless AP features Wi-Fi 6 technology with 8 spatial streams (8×8) to deliver a raw capacity of 4.8 Gigabits. Multi-Gigabit uplink ports ensure maximum wireless network performance and eliminate bottlenecks.
Feature |
Feature Value |
2.4 GHz |
Yes |
5 GHz |
Yes |
6 GHz |
No |
Maximum data transfer rate |
2401.9 Mbit/s |
Ethernet LAN data rates |
10,100,1000,2500,5000 Mbit/s |
Frequency band |
2.4 GHz |
Networking standards |
IEEE 802.11ax, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
Cabling technology |
10/100/1000Base-T(X) |
MIMO |
Yes |
MIMO type |
Multi User MIMO |
Wi-Fi Multimedia (WMM)/(WME) |
Yes |
Fast roaming |
Yes |
VLAN support |
Yes |
Flow control support |
Yes |
Wireless isolation |
Yes |
Band steering |
Yes |
Airtime Fairness (ATF) |
Yes |
Quality of Service (QoS) support |
Yes |
Security algorithms |
802.1x RADIUS, SSID, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
MAC address filtering |
Yes |
Service Set Identifier (SSID) features |
Hidden SSID |
Auto Wireless Distribution System (WDS) |
Yes |
Remote Authentication Dial-In User Service (RADIUS) |
Yes |
DHCP client |
Yes |
Management protocols |
SNMPv1, v2c, v3 |
Web-based management |
Yes |
Syslog |
Yes |
Firmware upgradeable |
Yes |
Ethernet LAN (RJ-45) ports |
2 |
Power over Ethernet (PoE) |
Yes |
AC input voltage |
100 – 240 V |
Power consumption (typical) |
19 W |
Power consumption (max) |
24 W |
Placement |
Wall |
Product colour |
White |
Cable lock slot |
Yes |
Cable lock slot type |
Kensington |
LED indicators |
Yes |
Antenna type |
Internal |
Antenna direction type |
Omni-directional |
Antenna gain level (max) |
5.93 dBi |
Width |
200 mm |
Depth |
45 mm |
Height |
240 mm |
Weight |
1.2 kg |
Number of products included |
1 pc(s) |
Operating relative humidity (H-H) |
5 – 90% |
Operating temperature (T-T) |
0 – 50 °C |
Storage temperature (T-T) |
-25 – 70 °C |
Storage relative humidity (H-H) |
5 – 95% |
Operating altitude |
0 – 3048 m |
Sustainability compliance |
Yes |
