Description

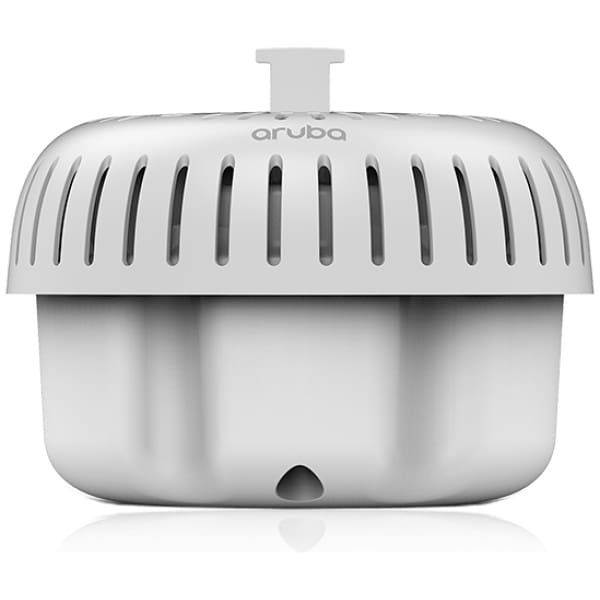

Aruba 570 Series Outdoor Access Points
High-performance Wi-Fi 6 ideal for harsh outdoor weather conditions such as parking lots, stadiums, and public venues.
Maximum density. Highest performance.
Withstands harsh outdoor weather conditions, providing fast speed, high density, and reliable connectivity outdoors in large open areas, such as stadiums and parking lots.
High efficiency
Built for Wi-Fi 6 standards and high-density outdoor connectivity, the 570 Series APs maximize performance and efficiency. Supports OFDMA and MU-MIMO multiuser technologies, enabling the most efficient communication between the client and AP.
IoT platform and location-ready
Supports 802.15.4/Zigbee and Bluetooth to simplify the deployment and management of IoT location-based services, asset-tracking services, security solutions, and IoT sensors. Target Wake Time (TWT) improves client power savings and reduces airtime contention with other clients.
Simple and secure access
Enforces built-in policy firewall (layer 7) for each new client on the network and utilizes Aruba ClearPass Policy Manager for centralized policy management. For enhanced security, the 570 Series APs provide storage of credentials, keys, and booting.
High performance, in any weather
Ensures predictable, secure, and optimized connectivity with 2.69 Gbps maximum speed and Wi-Fi 6 support for large, outdoor, harsh weather events and environments.
IoT-ready Bluetooth 5 and 802.15.4/Zigbee
Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
Dynamic Segmentation and policy enforcement-firewalls
Enforces (automatically) consistent policies across all networks, keeping users and devices secure.
AI-powered Wi-Fi RF management and automation with AirMatch
Utilizing AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.
Air Slice for SLA-grade performance
Guarantees a predictable user experience, prioritizing traffic and arrival of time-sensitive data with Air Slice application.
| Feature |
Feature Value |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| 6 GHz |
No |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Frequency band |
2.4 – 5 GHz |
| Networking standards |
IEEE 802.11ax |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Auto MDI/MDI-X |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Maximal-Ratio Combining (MRC) |
Yes |
| Cyclic Delay Diversity (CDD) |
Yes |
| Cyclic Shift Diversity (CSD) |
Yes |
| BeamForming |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
32 W |
| Placement |
Pole, Wall |
| Product colour |
White |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Width |
240 mm |
| Depth |
240 mm |
| Height |
190 mm |
| Weight |
2.7 kg |
| Number of products included |
1 pc(s) |
| Operating relative humidity (H-H) |
5 – 93% |
| Operating temperature (T-T) |
-40 – 65 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating altitude |
0 – 3000 m |
