Description
FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or can be managed through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market leading FortiGate appliance, these APs are perfect for campus or branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
Unified Management
Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.
Advanced Security Protection
Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.
Built-in Wi-Fi Security
Protects the network from advanced wireless threats and satisfies PCI DSS compliance.

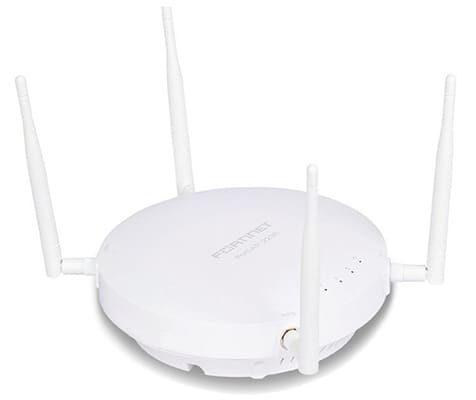

FortiAP 221E and 223E (Gen 2)
The FortiAP 221E and 223E are medium-density 802.11ac Wave 2 access points. These Enterprise-class access points are ideal for medium-density environments such as office or classroom with Performance Throughput of up to 867 Mbps.
| Feature |
Feature Value |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Frequency band |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Modulation |
256-QAM |
| Maximal-Ratio Combining (MRC) |
Yes |
| Maximum Likelihood Detection (MLD) |
Yes |
| Data unit aggregation |
A-MPDU, A-MSDU |
| Short Guard Interval (GI) |
Y |
| Transmitting power |
24 dBmW |
| Security algorithms |
EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WEP, WPA, WPA2 |
| Number of SSID supported |
16 |
| Wireless Intrusion Detection System (WIDS) |
Yes |
| Blacklist |
Yes |
| Whitelist |
Yes |
| Web-based management |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
12.36 W |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| LED indicators |
Yes |
| Certification |
FCC, IC, CE, RoHS |
| Antenna type |
External |
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Width |
160 mm |
| Depth |
160 mm |
| Height |
47 mm |
| Weight |
500 g |
| Package weight |
2.4 kg |
| Number of products included |
1 pc(s) |
| Mounting kit |
Yes |
| Operating relative humidity (H-H) |
5 – 90% |
| Operating temperature (T-T) |
-20 – 45 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
