ATEN 4-Port USB 2.0 CAT 5 Extender (up to100m)

Part No:

UCE32100

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

The UCE32100 Is A 4-Port USB 2.0 CAT 5 Extender Is A Two-Unit Device That Serves As A Transmitter And A Receiver. It Provides A Dura

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: UCE32100 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

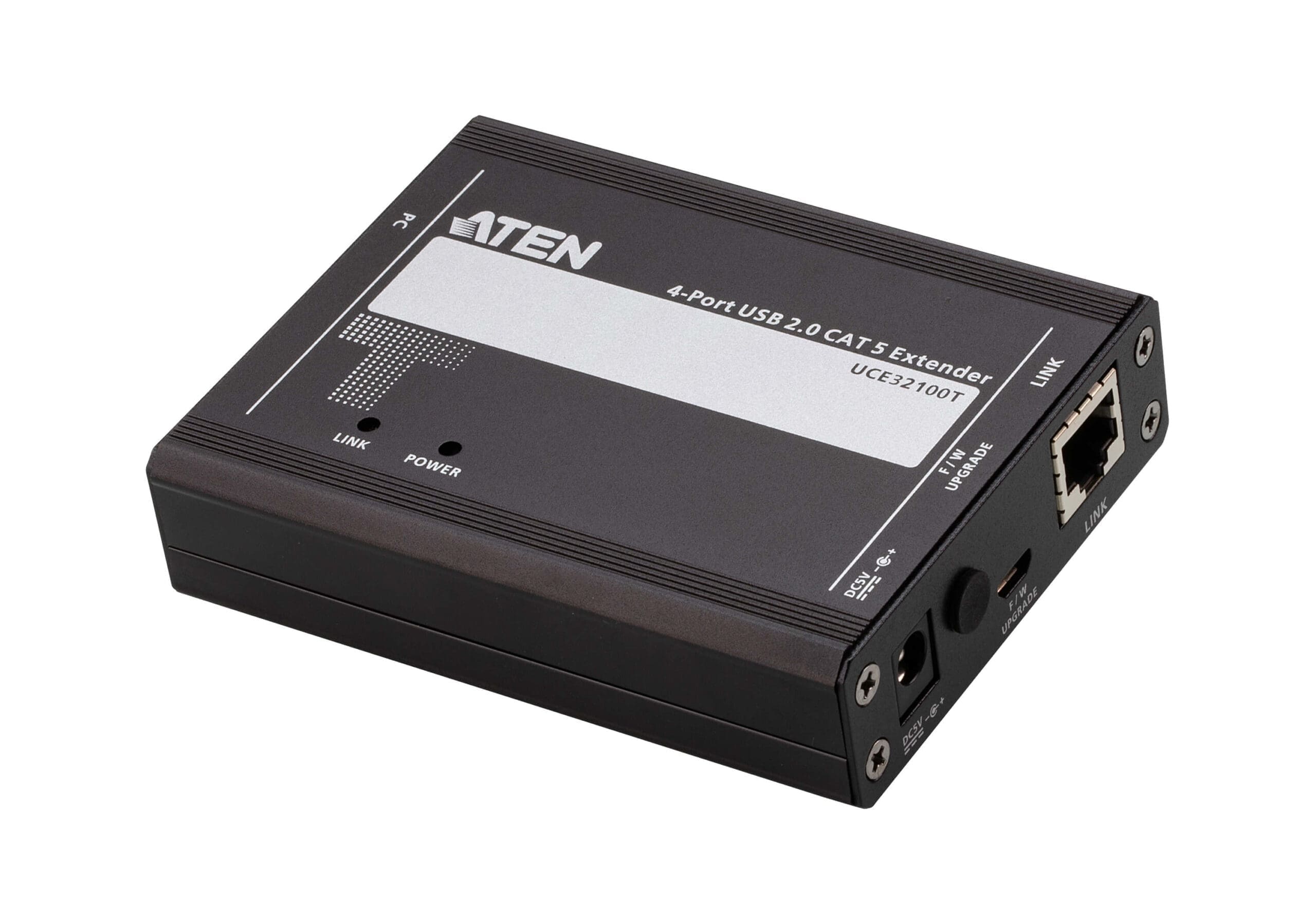

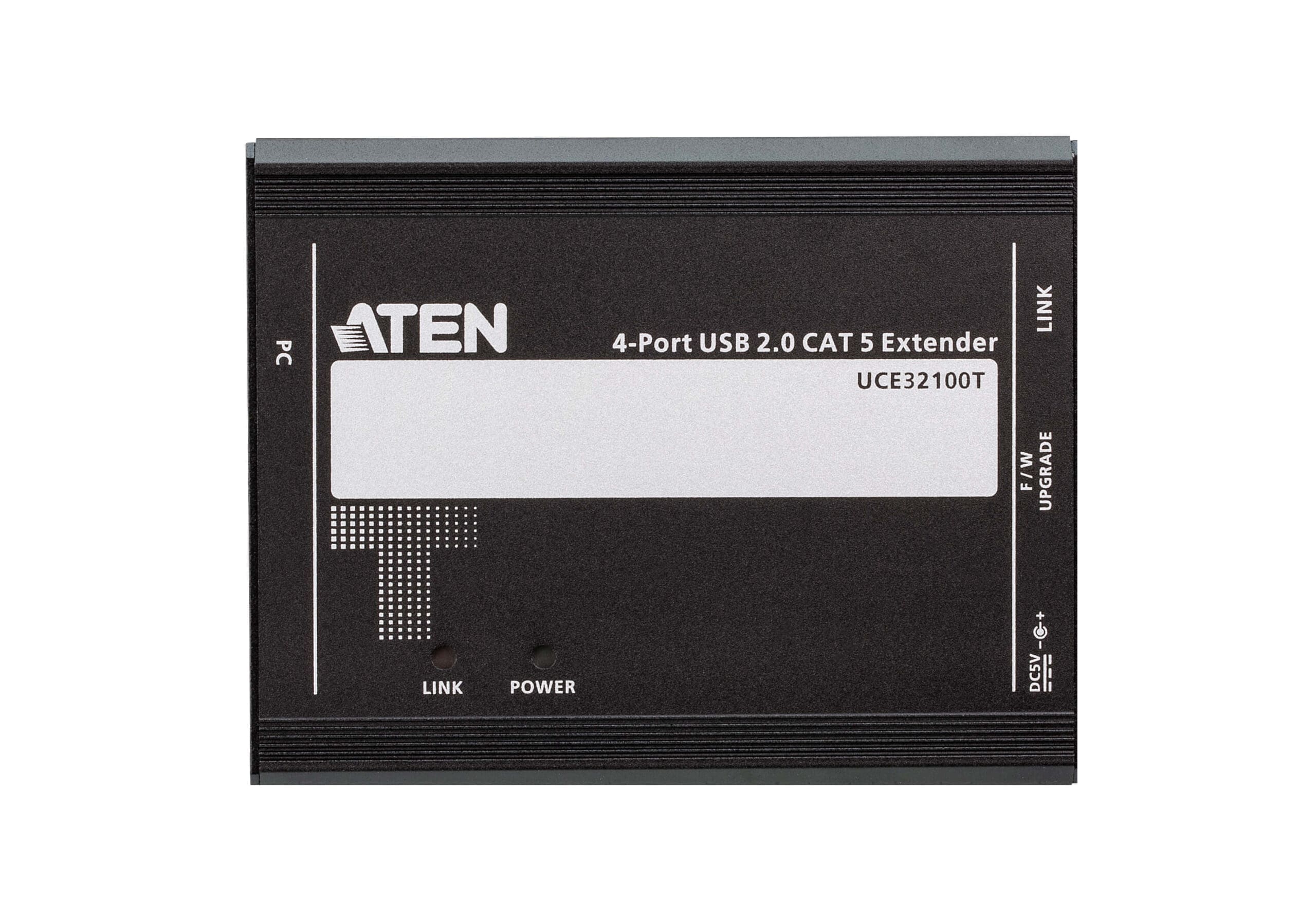

1x UCE32100T USB 2.0 CAT 5 Transmitter

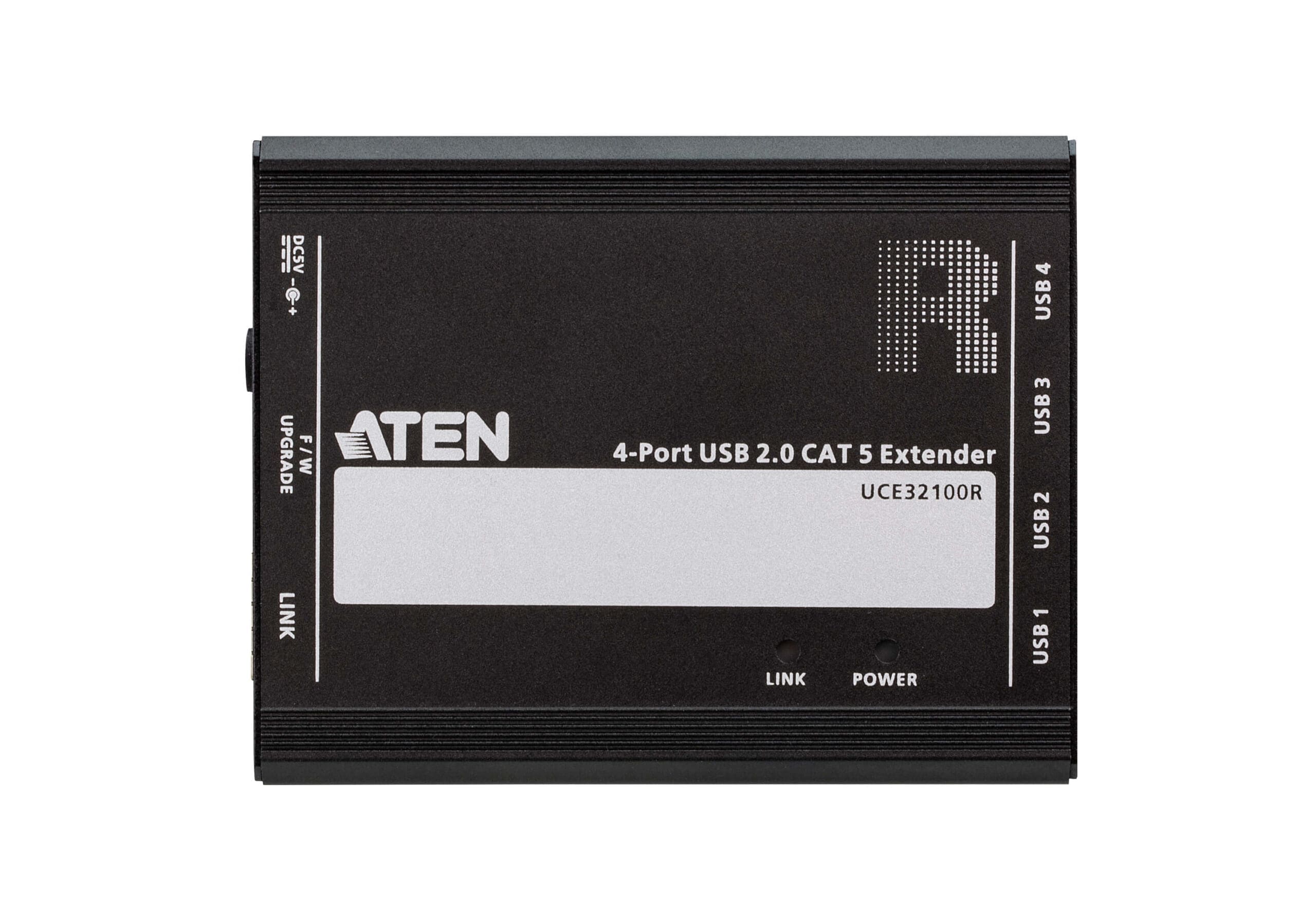

1x UCE32100R USB 2.0 CAT 5 Receiver
1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable
1x 0AD8-8005-0MA Power Adapter
1x LIN2-418K-E12G Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions

Feature Feature Value
Type Transmitter & receiver
Connectivity technology Wired
Maximum transfer distance 100 m
Cable types supported Cat5
Product colour Black
Material Metal
LED indicators Yes
Transmitter local keyboard/mouse port type USB
RJ-45 ports quantity (transmitter) 1
Receiver local keyboard/mouse port type USB
RJ-45 ports quantity (receiver) 1
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 70 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.21 kg
Dimensions (WxDxH) 101.5 x 79 x 24.4 mm
Weight 900 g
Manual Yes
Quick installation guide Yes
Master (outer) case net weight 4.5 kg
Harmonized System (HS) code 84733080
Master (outer) case width 292 mm
Master (outer) case length 517 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 6.7 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

Transmitter & receiver
Maximum transfer distance

100 m
Product colour

Black
LED indicators

Yes
Storage temperature (T-T)

-20 – 70 °C
Package depth

283 mm
Package weight

1.21 kg
Weight

900 g
Quick installation guide

Yes
Harmonized System (HS) code

84733080
Master (outer) case length

517 mm
Connectivity technology

Wired
Cable types supported

Cat5
Material

Metal
Operating temperature (T-T)

0 – 50 °C
Package width

100 mm
Package height

173 mm
Dimensions (WxDxH)

101.5 x 79 x 24.4 mm
Manual

Yes
Master (outer) case width

292 mm
Master (outer) case height

194 mm

Brand

Aten
