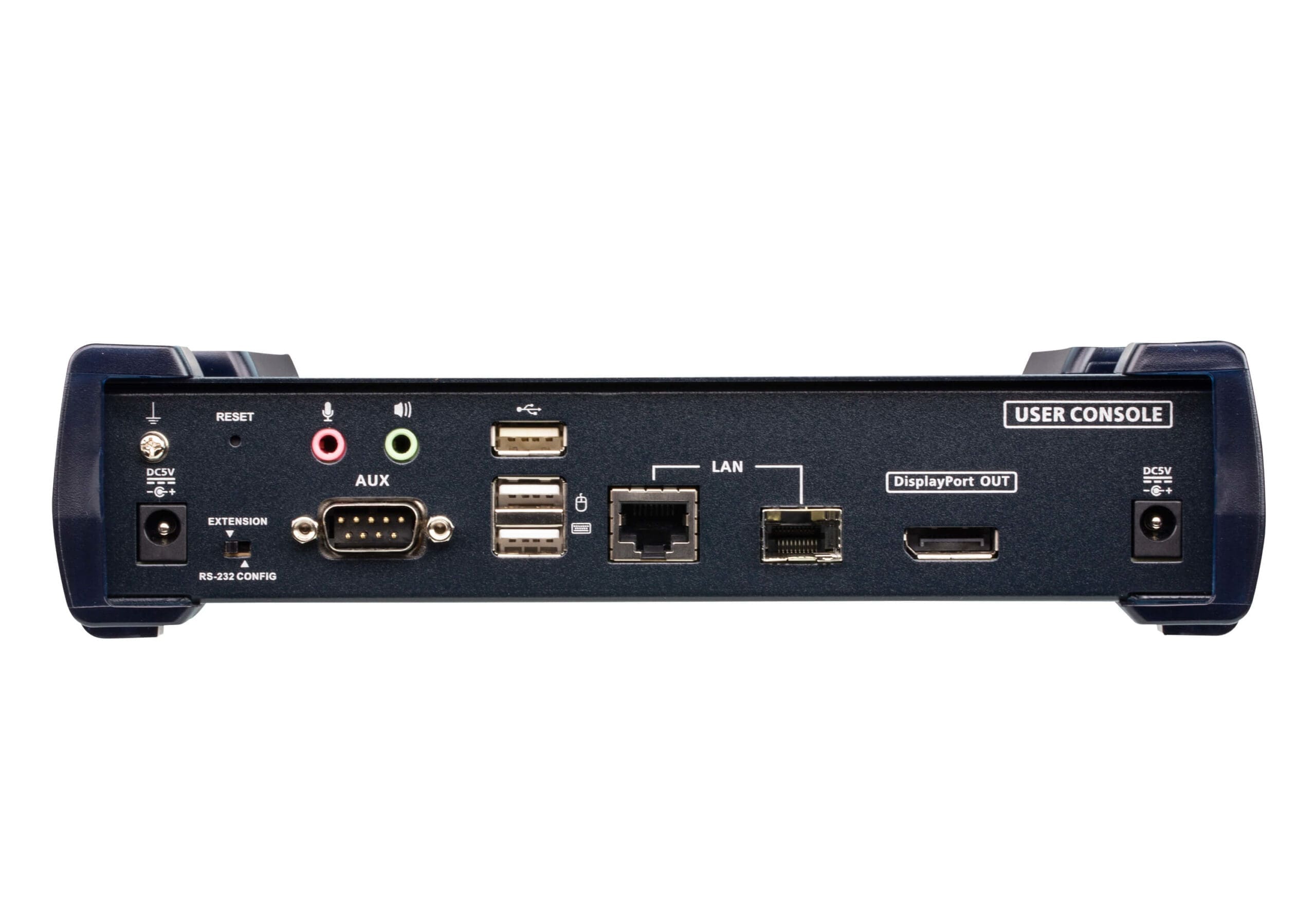

ATEN 4K DP KVM over IP Receiver

Part No:

KE9950R

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

4K DP KVM Over IP Receiver (POA)

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: KE9950R Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

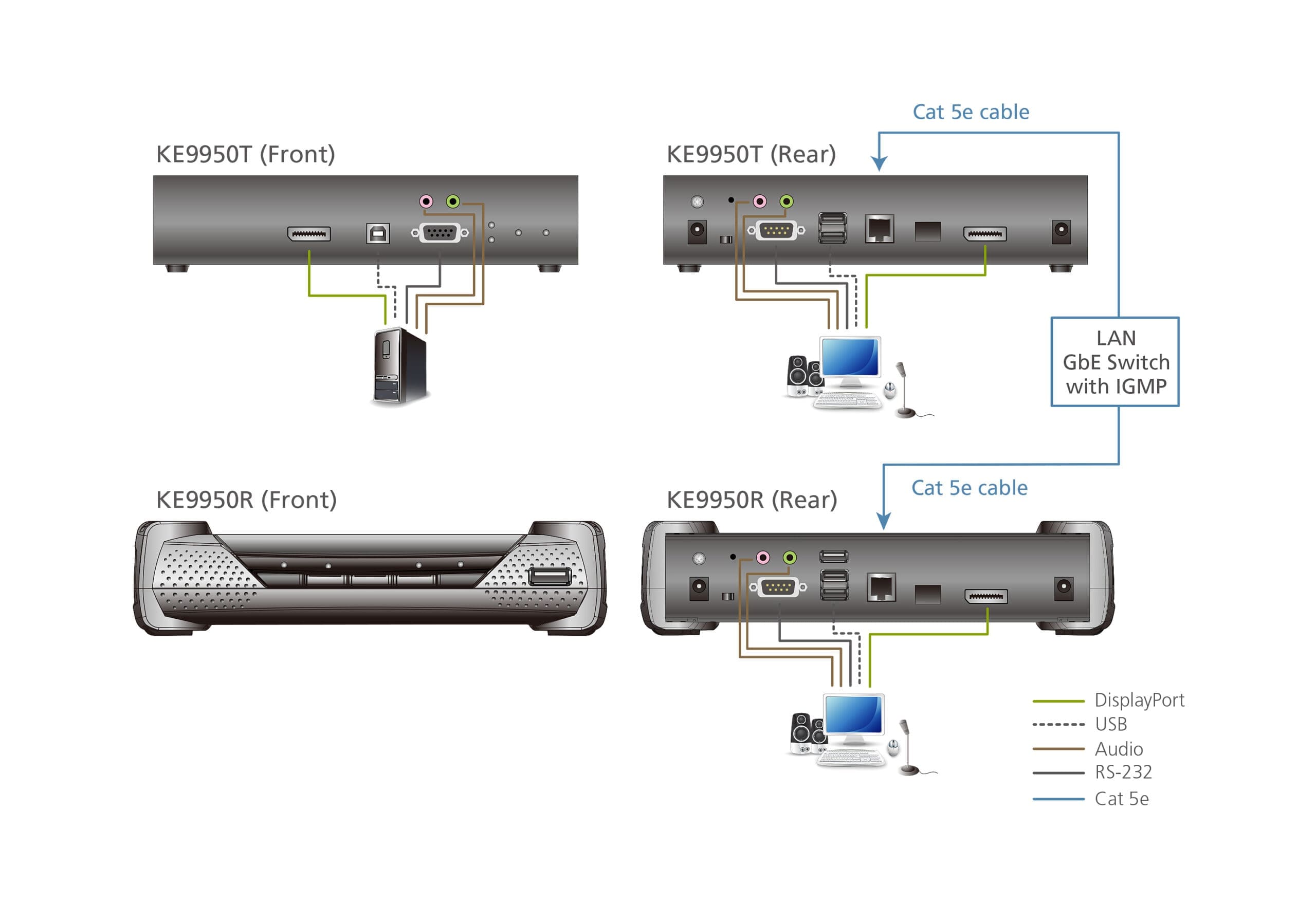

The KE9950 4K DisplayPort Single Display KVM over IP Extender consists of a high performance IP-based transmitter KE9950T that connects to the computer and receiver KE9950R that provides console access from a separate location. The KE9950 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DisplayPort monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation.
1x KE9950R 4K DisplayPort Single Display KVM over IP Receiver
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions

Feature Feature Value
Type Receiver
Connectivity technology Wired
Maximum transfer distance 10000 m
Cable types supported Cat5e
Rack mounting Yes
Maximum digital resolution 3840 x 2160 pixels
Colour depth 36 bit
On Screen Display (OSD) Yes
Product colour Black
Material Metal
LED indicators Yes
Certification RoHS
Receiver local video port type DisplayPort
Receiver local keyboard/mouse port type USB
RJ-45 ports quantity (receiver) 1
AC adapter output voltage 5 V
Power consumption (receiver) (max) 8.03 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 95%
Receiver width 22.8 cm
Receiver depth 17.2 cm
Receiver height 5.48 cm
Receiver weight 1.24 kg
Package width 207 mm
Package depth 414 mm
Package height 117 mm
Package weight 2.1 kg
Weight 1.67 kg
AC adapter included Yes
Manual Yes
RS-232 ports 1
PC Audio in Yes
PC Audio out Yes
Master (outer) case net weight 5.01 kg
Harmonized System (HS) code 84733080
Master (outer) case width 370 mm
Master (outer) case length 427 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 6.91 kg
Products per master (outer) case 3 pc(s)

Additional information

Type

Receiver
Maximum transfer distance

10000 m
Rack mounting

Yes
Colour depth

36 bit
Product colour

Black
LED indicators

Yes
Storage temperature (T-T)

-20 – 60 °C
Receiver width

22.8 cm
Receiver height

5.48 cm
Package width

207 mm
Package height

117 mm
Weight

1.67 kg
Manual

Yes
PC Audio in

Yes
Master (outer) case width

370 mm
Master (outer) case height

232 mm
Connectivity technology

Wired
Cable types supported

Cat5e
Maximum digital resolution

3840 x 2160 pixels
On Screen Display (OSD)

Yes
Material

Metal
Certification

RoHS
AC adapter output voltage

5 V
Operating temperature (T-T)

0 – 50 °C
Receiver depth

17.2 cm
Receiver weight

1.24 kg
Package depth

414 mm
Package weight

2.1 kg
AC adapter included

Yes
RS-232 ports

1
PC Audio out

Yes
Harmonized System (HS) code

84733080
Master (outer) case length

427 mm

Brand

Aten
