Description

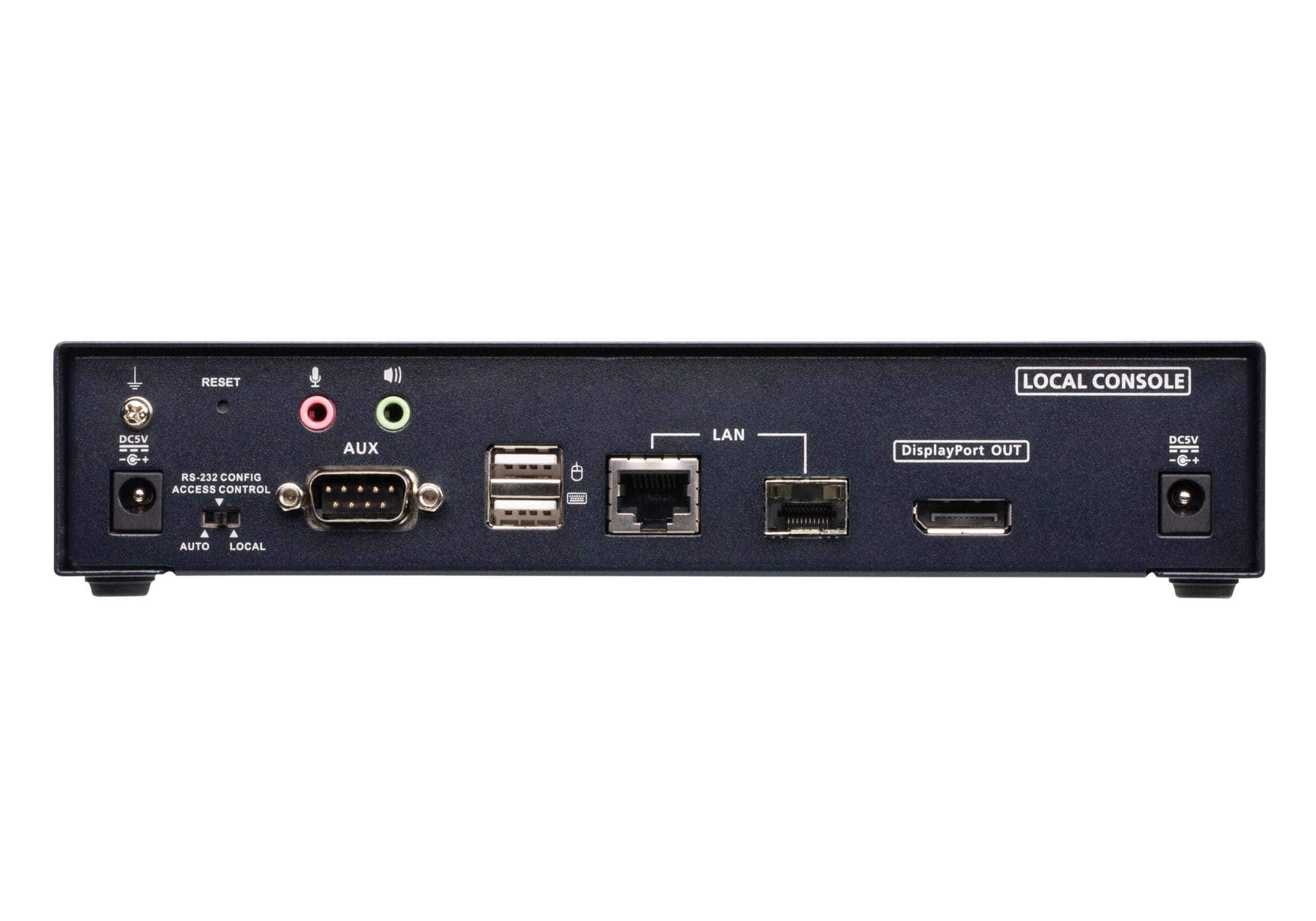

The KE9950 4K DisplayPort Single Display KVM over IP Extender consists of a high performance IP-based transmitter KE9950T that connects to the computer and receiver KE9950R that provides console access from a separate location. The KE9950 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DisplayPort monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation.
1x KE9950T 4K DisplayPort Single Display KVM over IP Transmitter
1x LIN5-20K1-K13G DisplayPort Cable
1x LIN6-04U1-V1BG USB 2.0 Type-A to Type-B Cable
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x Foot Pad Set (4 pcs.)
1x Mounting Kit
1x User Instructions
| Feature |
Feature Value |
| Type |
Transmitter |
| Connectivity technology |
Wired |
| Maximum transfer distance |
10000 m |
| Cable types supported |
Cat5e |
| Rack mounting |
Yes |
| Maximum digital resolution |
3840 x 2160 pixels |
| Colour depth |
36 bit |
| Product colour |
Black |
| Material |
Metal |
| LED indicators |
Yes |
| Certification |
RoHS |
| Transmitter video port type |
DisplayPort |
| Number of displays supported |
1 |
| Transmitter local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (transmitter) |
1 |
| AC adapter output voltage |
5 V |
| Power consumption (transmitter) (max) |
9.51 W |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 95% |
| Transmitter width |
21.5 cm |
| Transmitter depth |
16.3 cm |
| Transmitter height |
4.18 cm |
| Transmitter weight |
1.12 kg |
| Package width |
207 mm |
| Package depth |
414 mm |
| Package height |
117 mm |
| Package weight |
2.22 kg |
| Weight |
1.88 kg |
| AC adapter included |
Yes |
| Cables included |
DisplayPort, USB |
| Manual |
Yes |
| RS-232 ports |
1 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| Master (outer) case net weight |
5.64 kg |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
370 mm |
| Master (outer) case length |
427 mm |
| Master (outer) case height |
232 mm |
| Master (outer) case gross weight |
7.39 kg |
| Products per master (outer) case |
3 pc(s) |
