ATEN CE920-ATA-G KVM extender Transmitter & receiver

Part No:

CE920

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

CE920 USB DisplayPort HDBaseT2.0 KVM Extender

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CE920 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

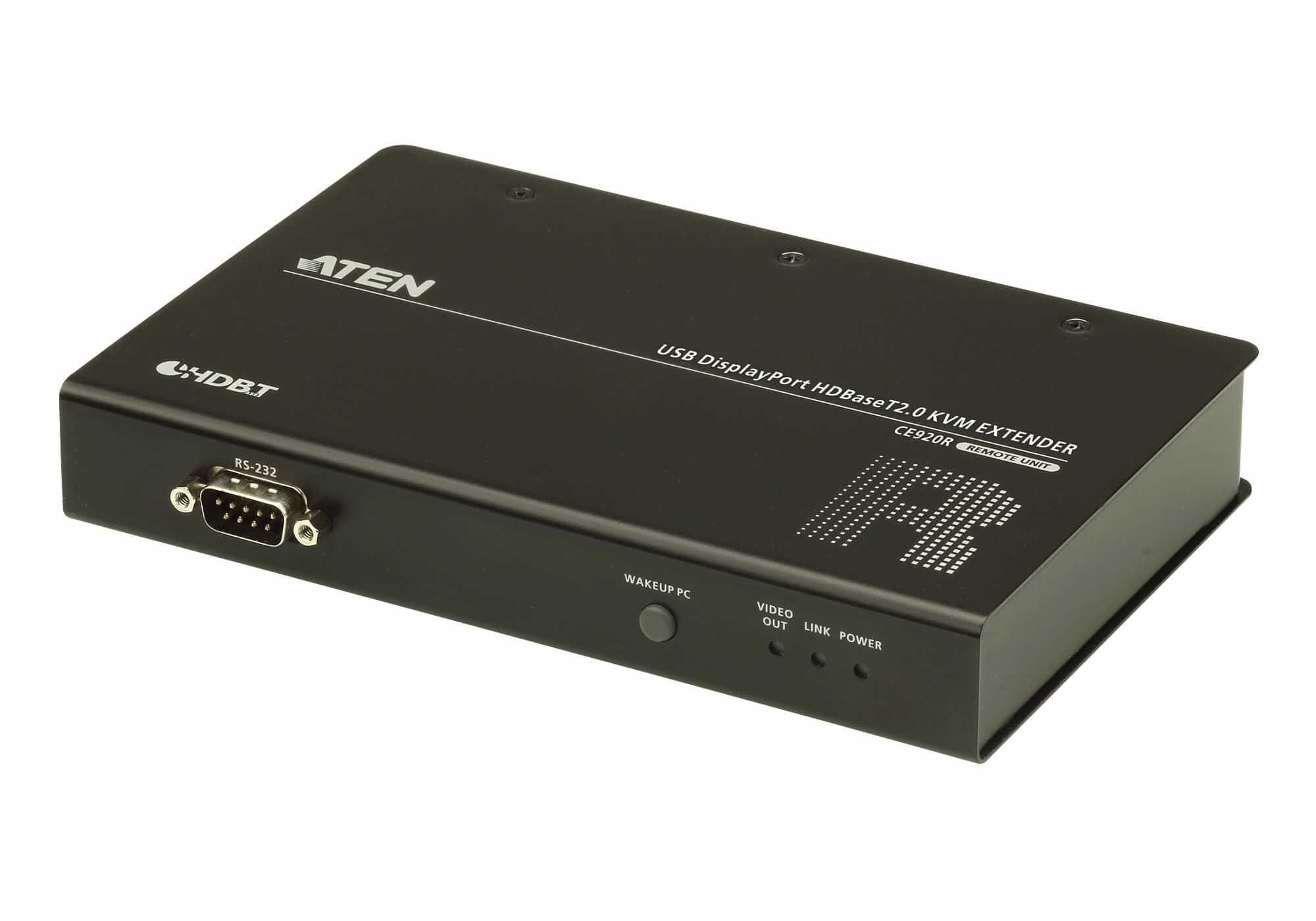

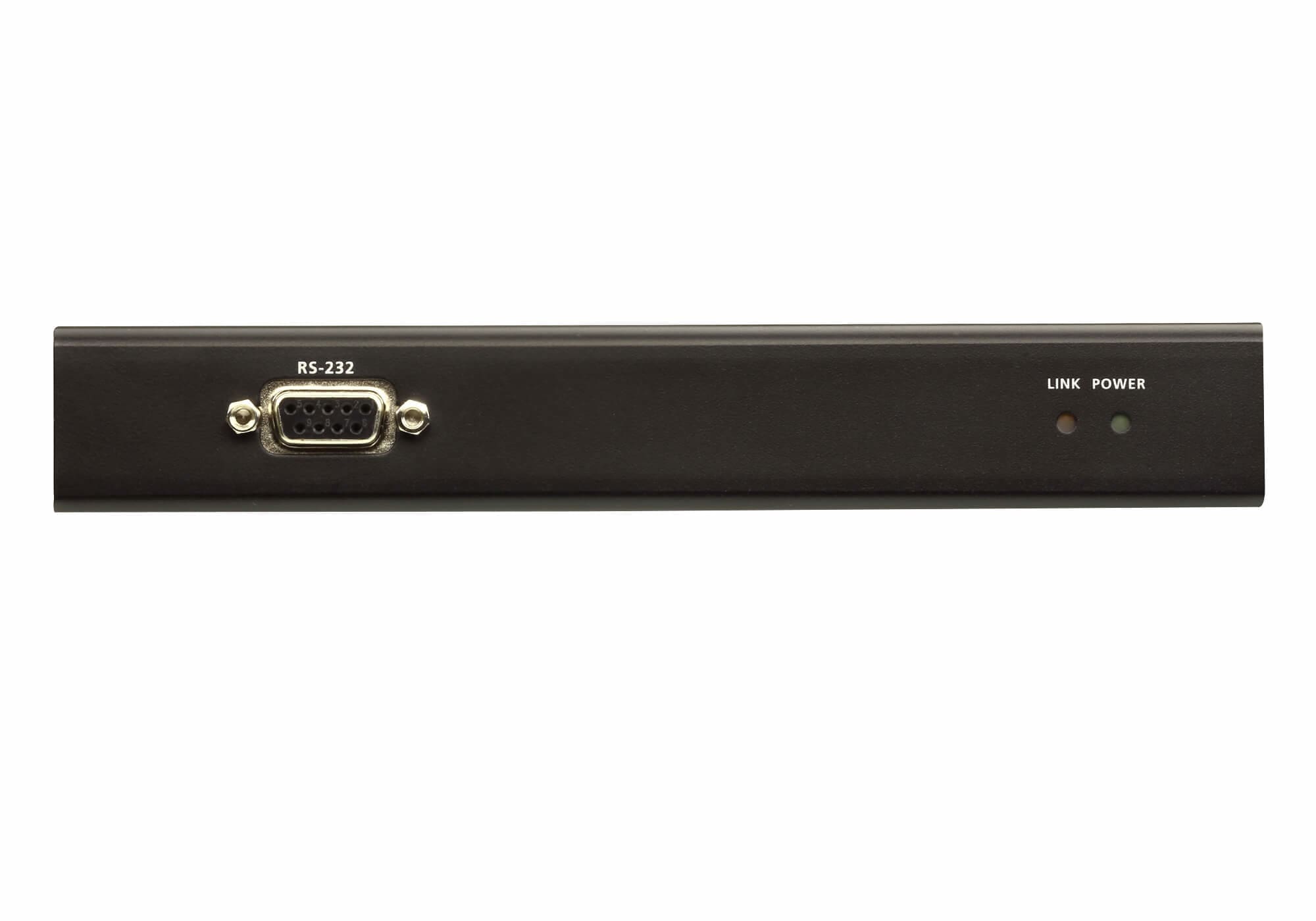

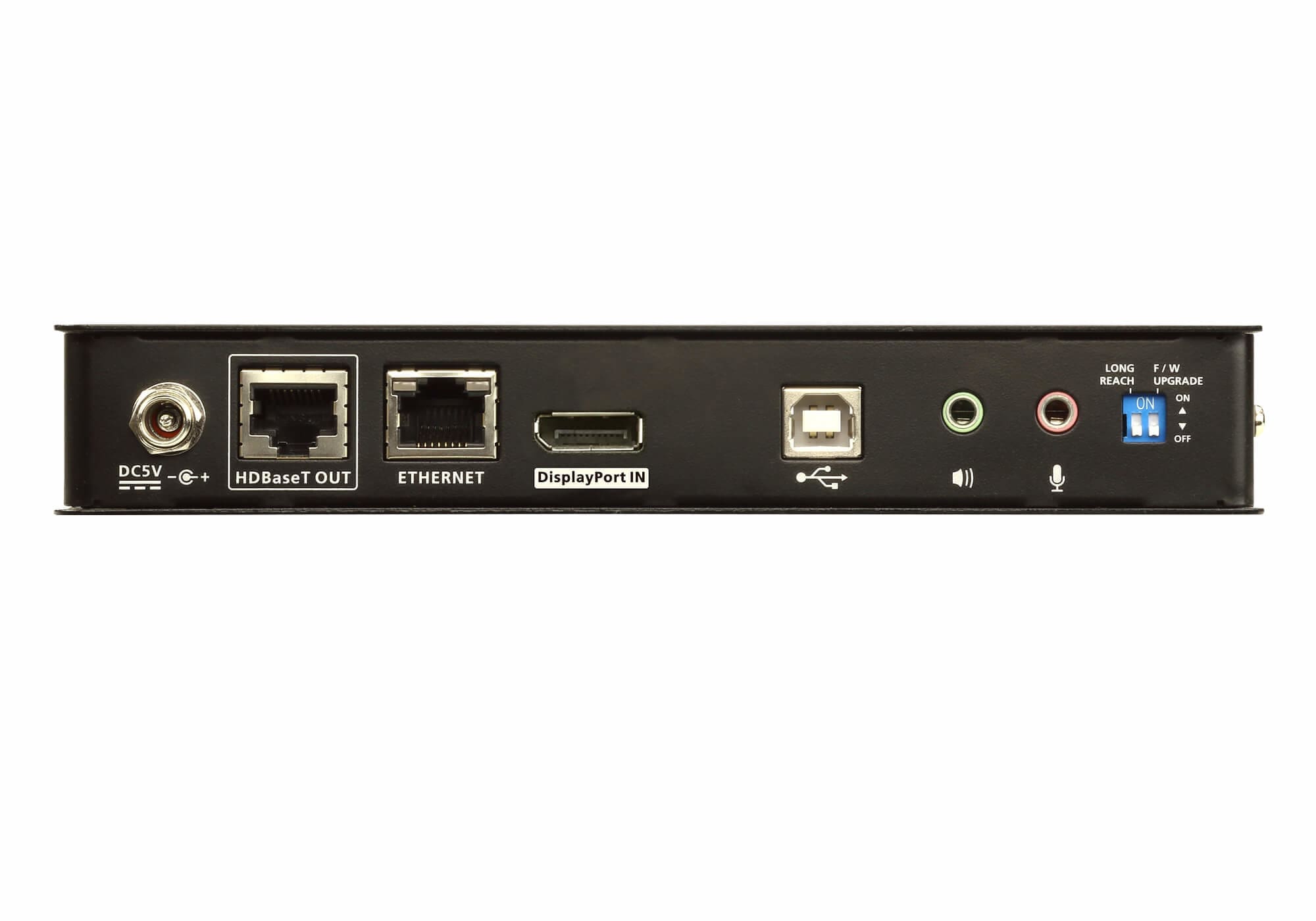

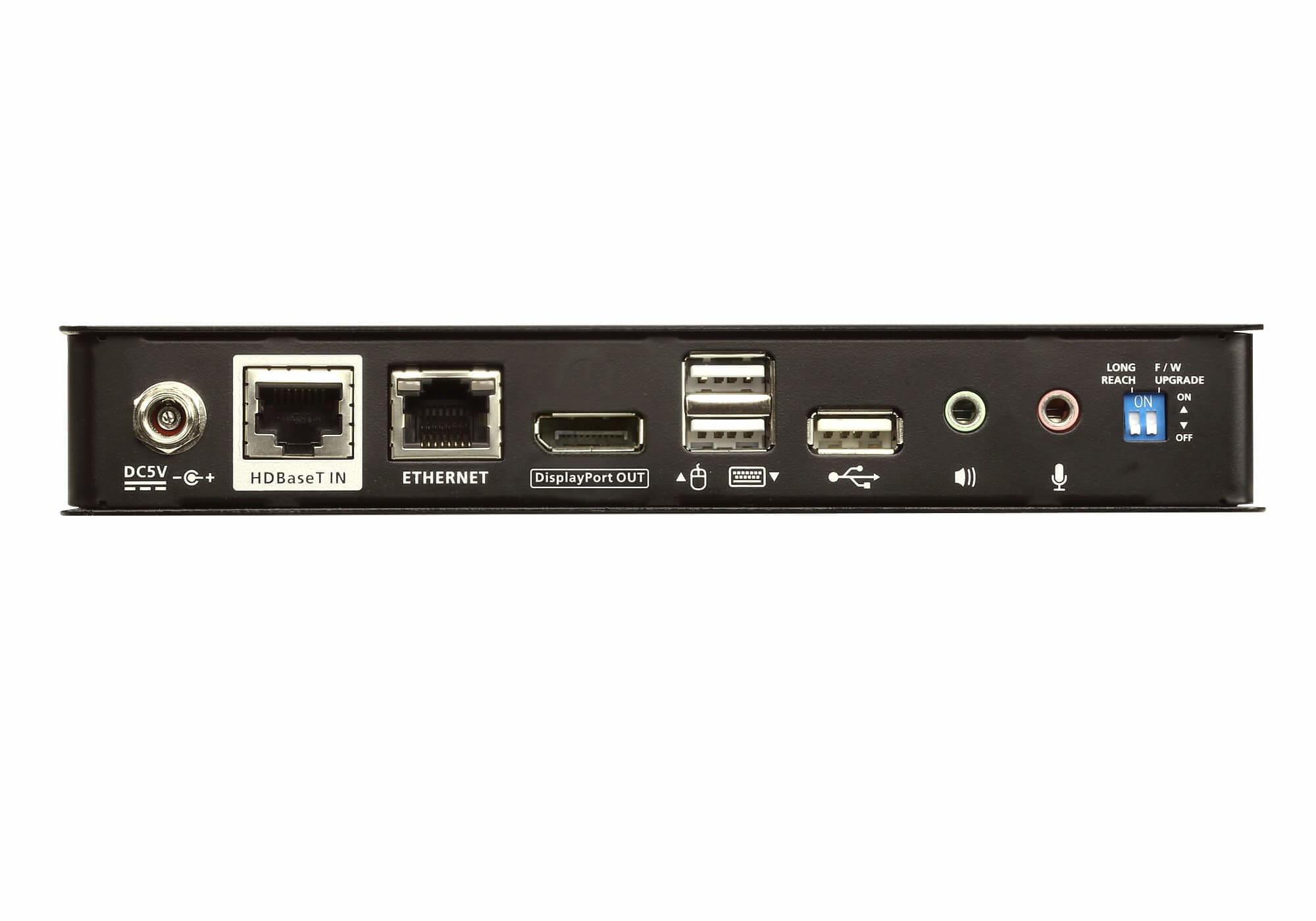

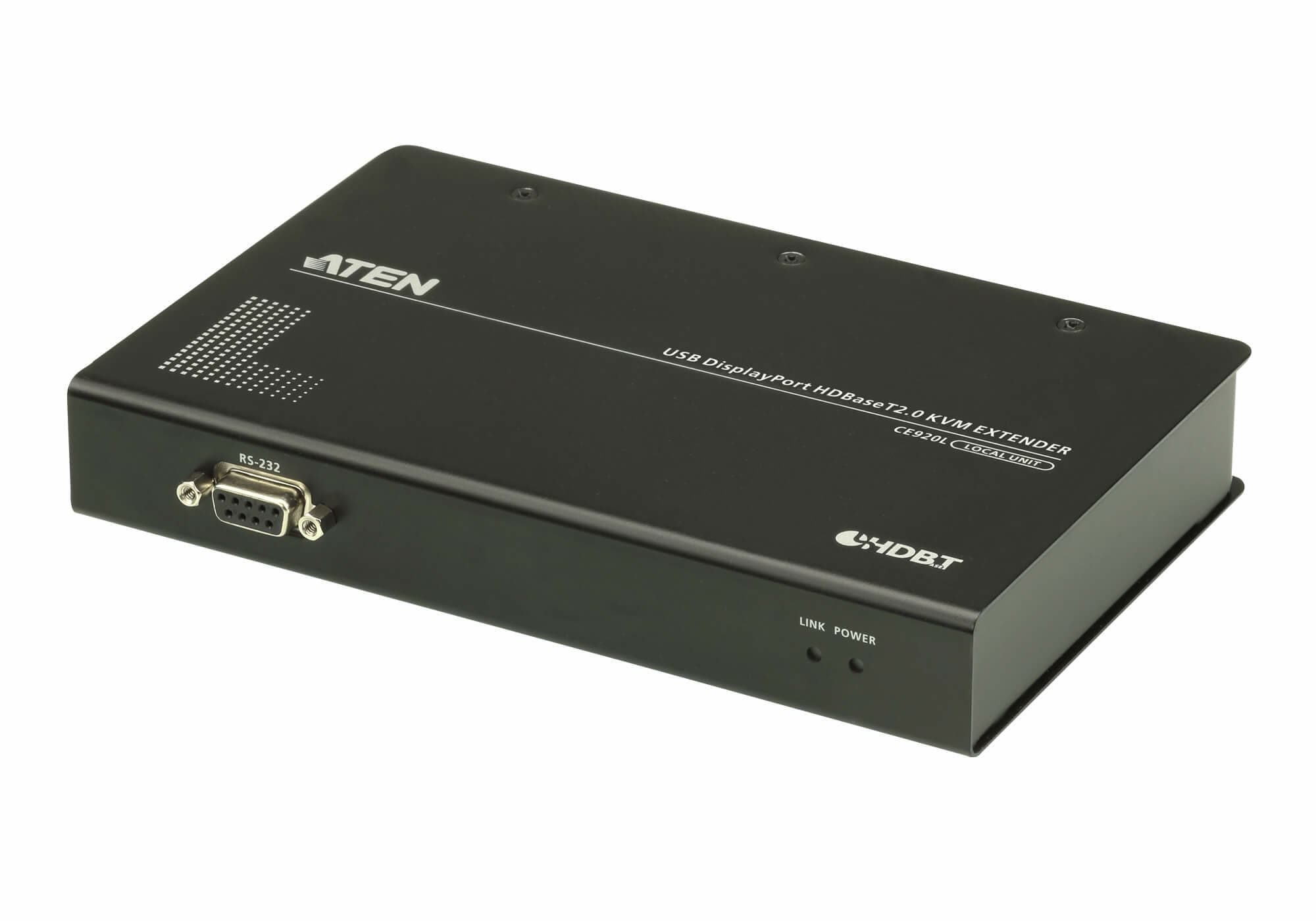

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Note: The CE920-AT supports Ethernet function and the CE920-ATA does not.

Feature Feature Value
Type Transmitter & receiver
Connectivity technology Wired
Maximum transfer distance 150 m
Cable types supported Cat5e, Cat6, Cat6a
Rack mounting Yes
Maximum digital resolution 4096 x 2160 pixels
Product colour Black
Material Metal
USB 2.0 ports quantity 4
USB data transfer rates 480 Mbit/s
LED indicators Yes
Transmitter video port type DisplayPort
Transmitter local keyboard/mouse port type USB
RJ-45 ports quantity (transmitter) 1
Receiver local video port type DisplayPort
Receiver local keyboard/mouse port type USB
RJ-45 ports quantity (receiver) 1
AC adapter output voltage 5 V
Power consumption (transmitter) (max) 3.99 W
Power consumption (receiver) (max) 6.74 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Transmitter width 18.2 cm
Transmitter depth 12.2 cm
Transmitter height 2.87 cm
Transmitter weight 630 g
Receiver width 18.2 cm
Receiver depth 12.2 cm
Receiver height 2.87 cm
Receiver weight 650 g
Package width 98 mm
Package depth 325 mm
Package height 210 mm
Package weight 2.18 kg
AC adapter included Yes
Cables included DisplayPort
Manual Yes
Mounting bracket(s) included Yes
PC Audio in Yes
PC Audio out Yes

Additional information

Type

Transmitter & receiver
Maximum transfer distance

150 m
Rack mounting

Yes
Product colour

Black
USB 2.0 ports quantity

4
LED indicators

Yes
Operating temperature (T-T)

0 – 40 °C
Transmitter depth

12.2 cm
Transmitter weight

630 g
Receiver depth

12.2 cm
Receiver weight

650 g
Package depth

325 mm
Package weight

2.18 kg
Cables included

DisplayPort
Mounting brackets included

Yes
PC Audio out

Yes
Connectivity technology

Wired
Cable types supported

Cat5e, Cat6, Cat6a
Maximum digital resolution

4096 x 2160 pixels
Material

Metal
USB data transfer rates

480 Mbit/s
Transmitter video port type

DisplayPort
AC adapter output voltage

5 V
Storage temperature (T-T)

-20 – 60 °C
Transmitter width

18.2 cm
Transmitter height

2.87 cm
Receiver width

18.2 cm
Receiver height

2.87 cm
Package width

98 mm
Package height

210 mm
AC adapter included

Yes
Manual

Yes
PC Audio in

Yes

Brand

Aten
