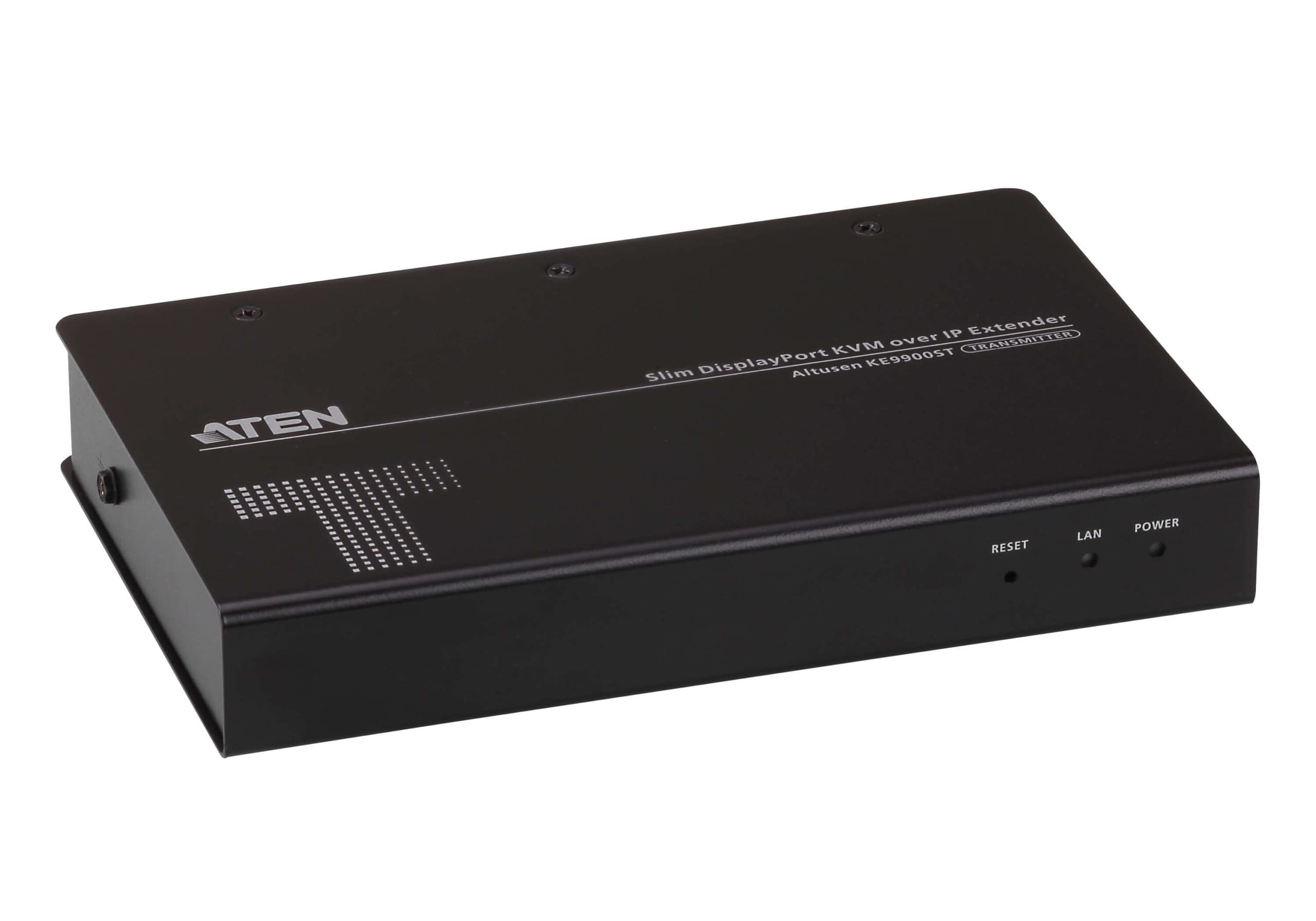

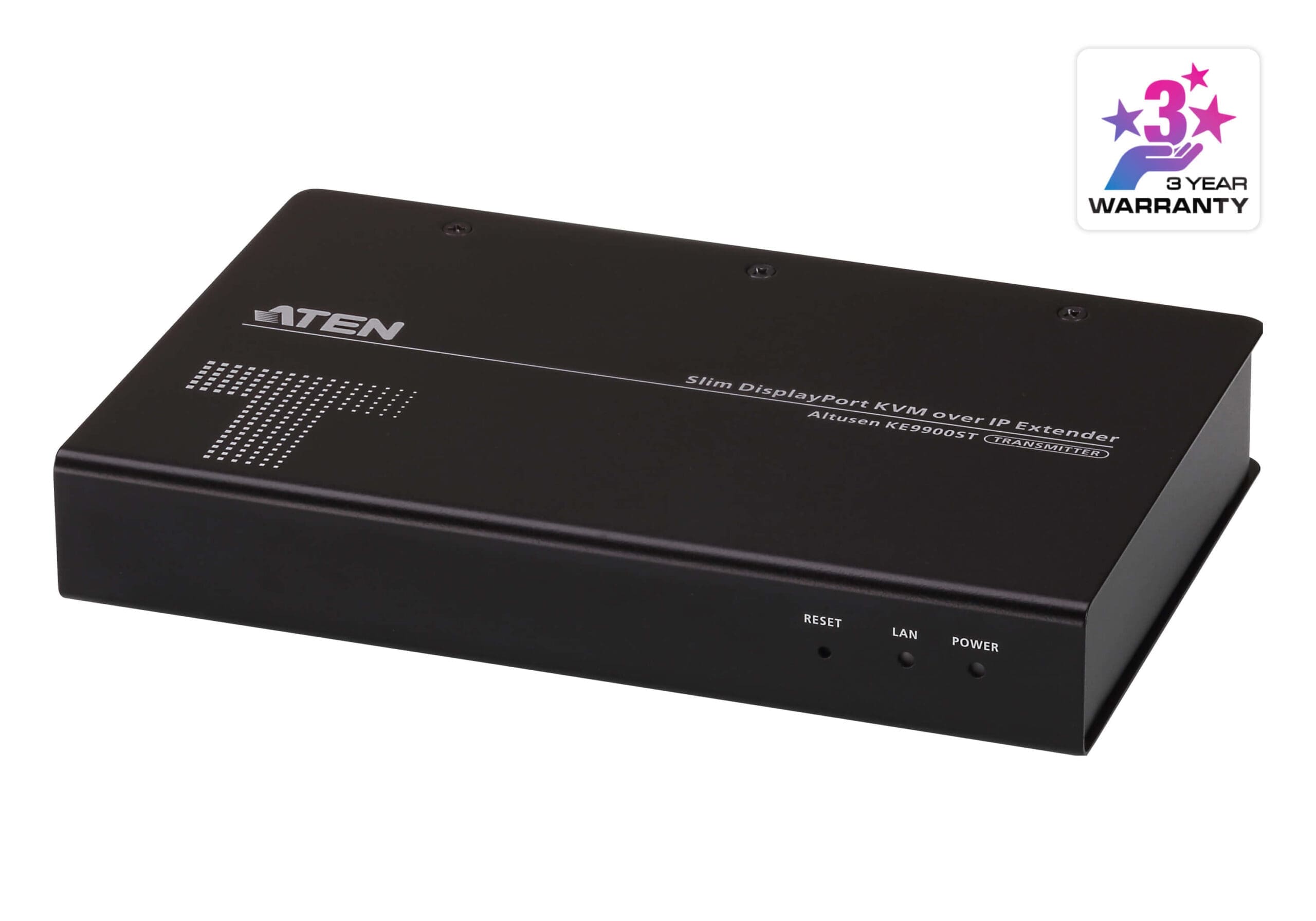

ATEN KE9900ST KVM extender Transmitter
Lock Added: N/A
1 in stock.
FHD DP Slim KVM ovr IP Transmitter
Non-Returnable*
Related products
Description
The KE9900ST Slim DisplayPort KVM over IP Extender is a compact and affordable high performance IP-based transmitter which can be paired with any KE Series* receiver for a savings solution that stays within budget. The KE Series* extenders allow access to a computer system from a remote USB console over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation.

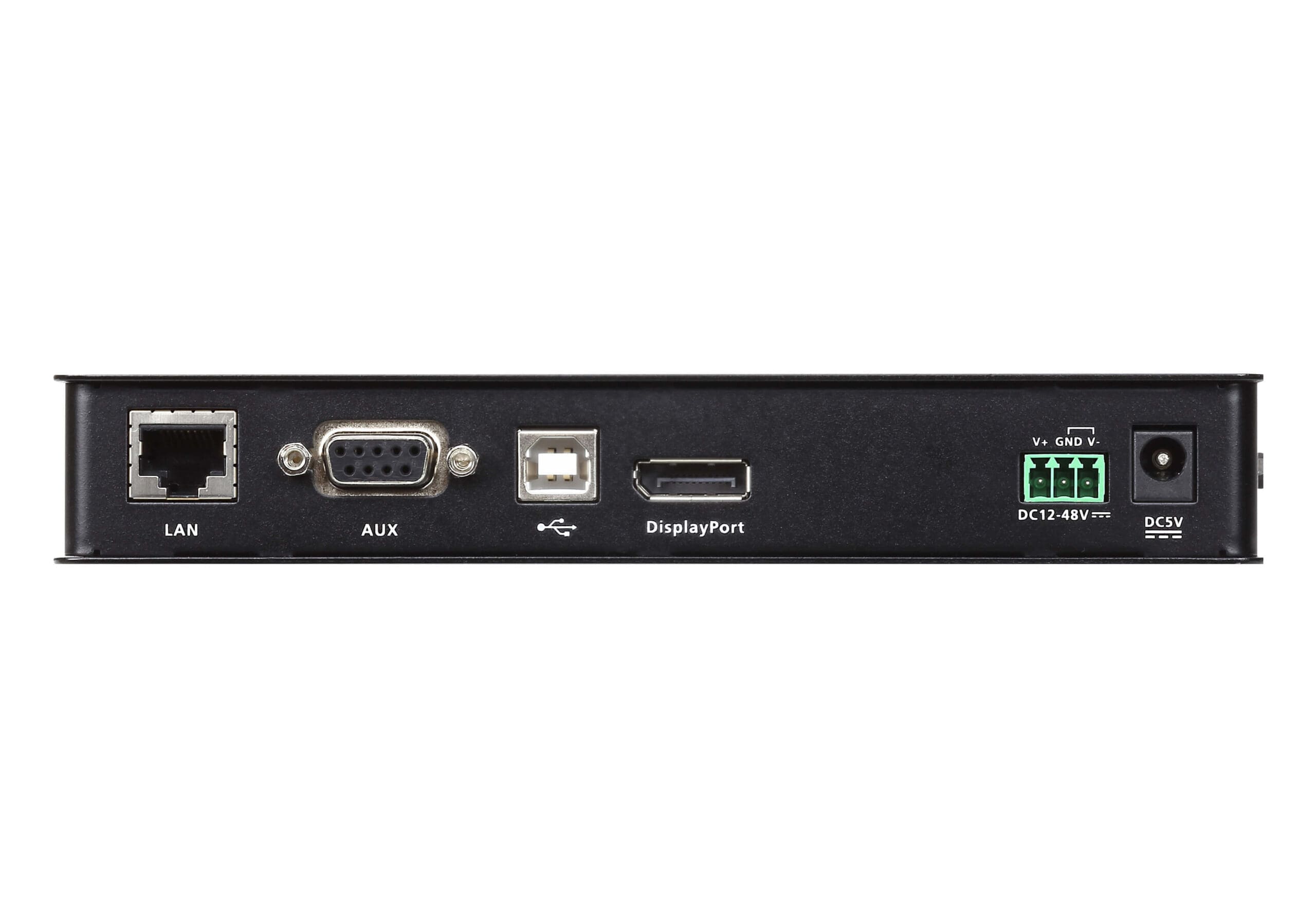

The KE9900ST supports DisplayPort video input from the computer while the paired KE Series receiver supports DisplayPort, DVI or HDMI monitor output, providing video resolutions up to 1920 x 1200 and flawless and lossless video compression quality with minimal latency. The extender also supports RS-232 serial commands. In addition to a DC power jack, the KE9900ST transmitter includes an extra DC terminal block for convenient installation.

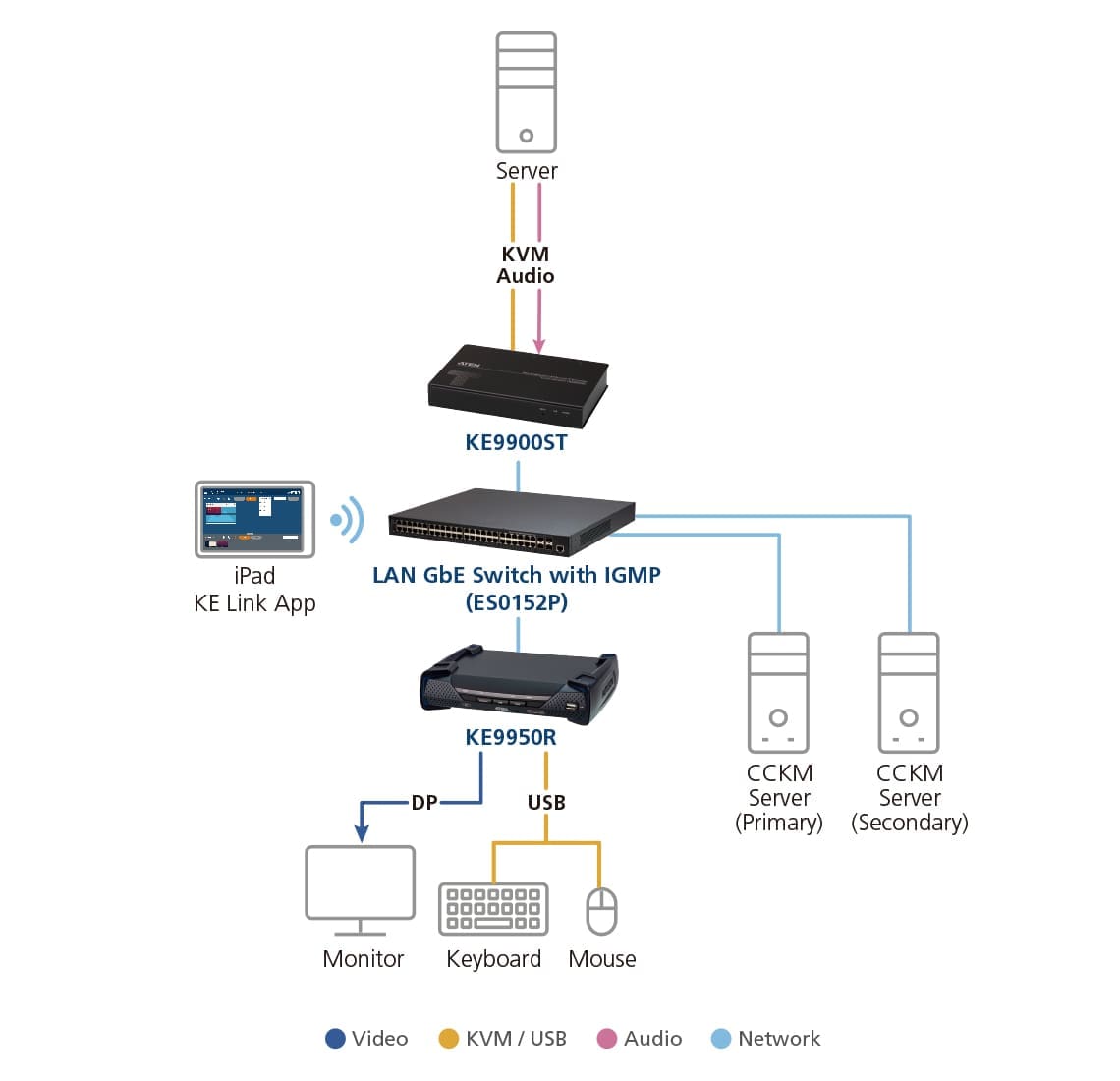

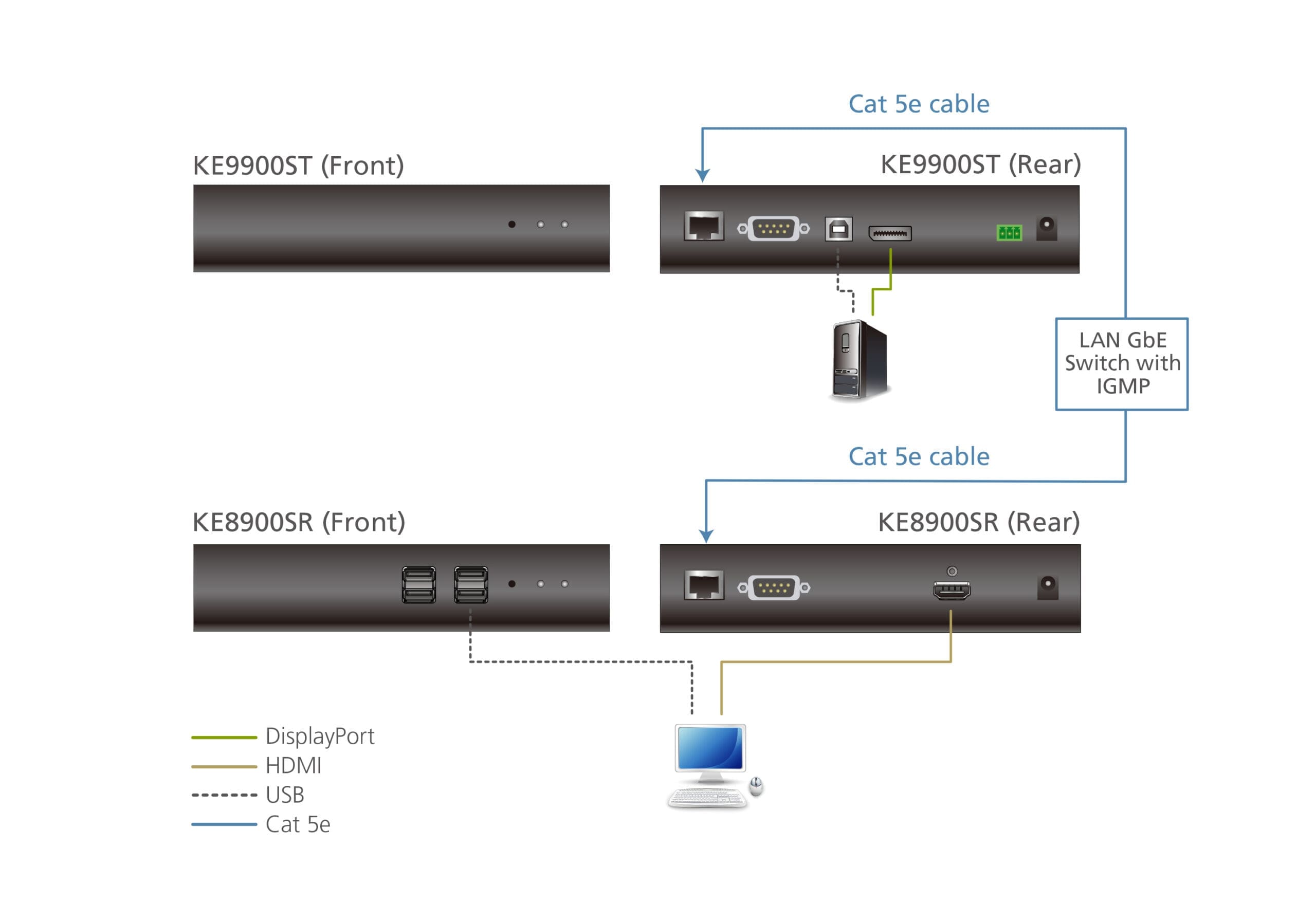

The KE9900ST can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack mount design. Moreover, the KE9900ST can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KVM over IP Matrix Manager (CCKM), providing more flexible applications in different working environments.
The KE9900ST can be configured through the CCKM or RS-232/Telnet text menu. The KVM over IP extender also offers enhanced security features such as supporting AES encryption for secured Video / Keyboard / Mouse / USB data transmissions and RADIUS / LDAP / AD or remote user authentication that provides an added layer of connection security.
When integrated with the CCKM and paired with the KE Series receiver, the KVM over IP extender supports more advanced features such as boundless switching, fast switching, video wall, multi display, profile scheduling, auto detection of all KE Series extenders on the same subnet for the sake of fast installation or configuration, as well as username / password authentication and authorization. Please refer to the CCKM webpage for more details.
Whether you’re configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.
*Please visit www.aten.com for a comprehensive list of the KVM over IP extenders.
| Feature | Feature Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Cable types supported | Cat5e |
| Rack mounting | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| Colour depth | 24 bit |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Transmitter video port type | DisplayPort |
| Number of displays supported | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Transmitter width | 18.2 cm |
| Transmitter depth | 11.8 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 650 g |
| Weight | 1.04 kg |
| AC adapter included | Yes |
| Cables included | DisplayPort, USB |
| RS-232 ports | 1 |
Additional information
| Type | Transmitter |
|---|---|
| Cable types supported | Cat5e |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour | Black |
| LED indicators | Yes |
| Storage temperature (T-T) | -20 – 60 °C |
| Transmitter width | 18.2 cm |
| Transmitter height | 2.87 cm |
| Weight | 1.04 kg |
| Cables included | DisplayPort, USB |
| Connectivity technology | Wired |
| Rack mounting | Yes |
| Colour depth | 24 bit |
| Material | Metal |
| Transmitter video port type | DisplayPort |
| Operating temperature (T-T) | 0 – 50 °C |
| Transmitter depth | 11.8 cm |
| Transmitter weight | 650 g |
| AC adapter included | Yes |
| RS-232 ports | 1 |
