ATEN USB HDMI HDBaseT2.0 KVM Extender

Part No:

CE820

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

USB HDMI HDBaseT2.0 KVM Extender

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: CE820 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

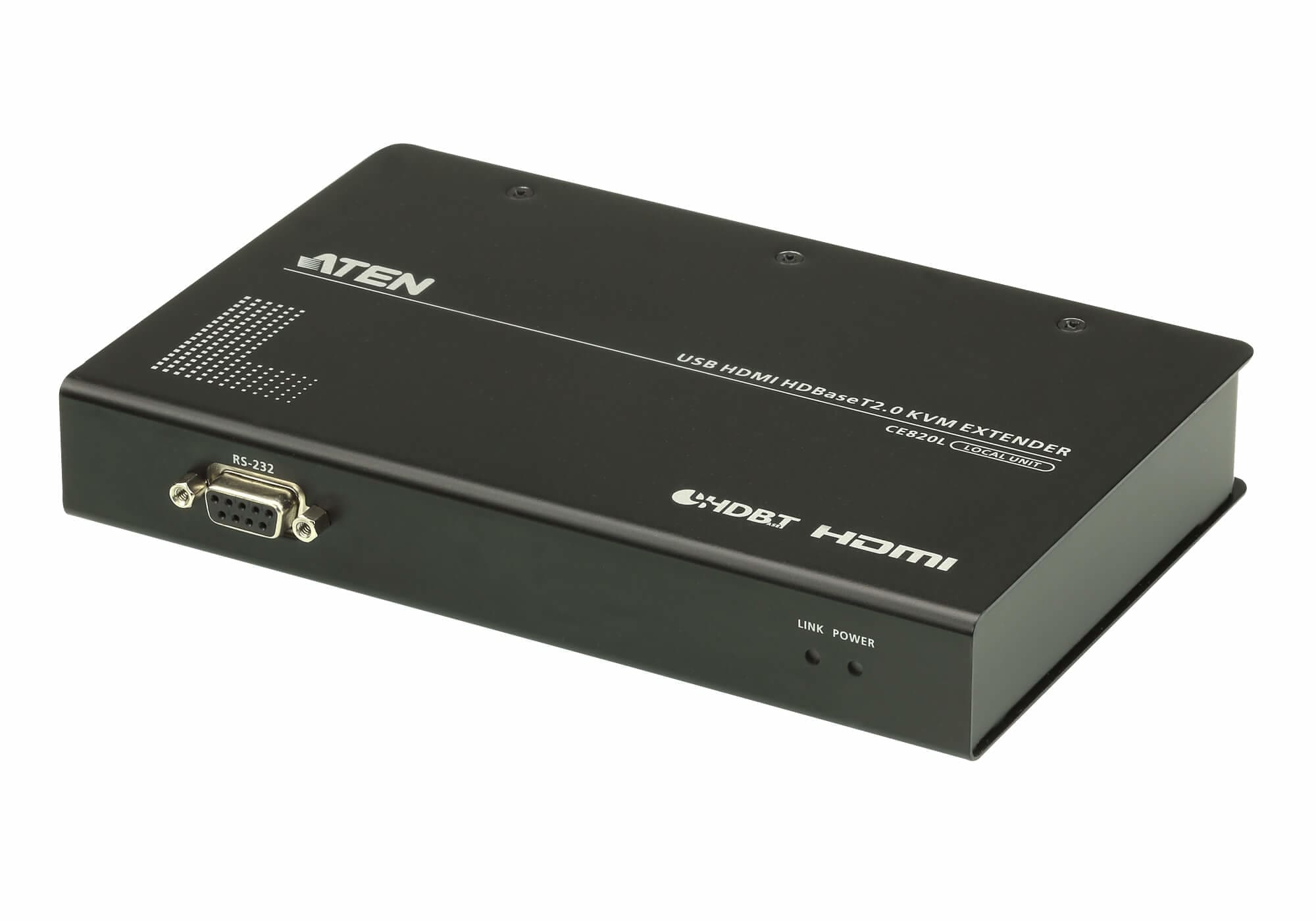

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions

Feature Feature Value
Type Transmitter & receiver
Connectivity technology Wired
Maximum transfer distance 150 m
Cable types supported Cat5e, Cat6, Cat6a
Rack mounting Yes
Maximum digital resolution 4096 x 2160 pixels
Product colour Black
Material Metal
USB 2.0 ports quantity 4
LED indicators Link, Power, Video
Transmitter video port type HDMI
Transmitter local video port Yes
Transmitter local video port type HDMI
Transmitter local keyboard/mouse port type USB
RJ-45 ports quantity (transmitter) 1
Receiver local video port type HDMI
Receiver local keyboard/mouse port type USB
RJ-45 ports quantity (receiver) 1
AC adapter output voltage 5 V
Power consumption (transmitter) (max) 2.87 W
Power consumption (receiver) (max) 5.37 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Transmitter width 18.2 cm
Transmitter depth 12.2 cm
Transmitter height 2.87 cm
Transmitter weight 630 g
Receiver width 18.2 cm
Receiver depth 12.2 cm
Receiver height 2.87 cm
Receiver weight 650 g
Package width 98 mm
Package depth 325 mm
Package height 210 mm
Package weight 2.16 kg
Weight 1.96 kg
PC Audio in Yes
PC Audio out Yes
Master (outer) case net weight 9.8 kg
Harmonized System (HS) code 84733080
Master (outer) case width 342 mm
Master (outer) case length 512 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 11.7 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

Transmitter & receiver
Maximum transfer distance

150 m
Rack mounting

Yes
Product colour

Black
USB 2.0 ports quantity

4
Transmitter video port type

HDMI
AC adapter output voltage

5 V
Storage temperature (T-T)

-20 – 60 °C
Transmitter width

18.2 cm
Transmitter height

2.87 cm
Receiver width

18.2 cm
Receiver height

2.87 cm
Package width

98 mm
Package height

210 mm
Weight

1.96 kg
PC Audio out

Yes
Harmonized System (HS) code

84733080
Master (outer) case length

512 mm
Connectivity technology

Wired
Cable types supported

Cat5e, Cat6, Cat6a
Maximum digital resolution

4096 x 2160 pixels
Material

Metal
LED indicators

Link, Power, Video
Operating temperature (T-T)

0 – 40 °C
Transmitter depth

12.2 cm
Transmitter weight

630 g
Receiver depth

12.2 cm
Receiver weight

650 g
Package depth

325 mm
Package weight

2.16 kg
PC Audio in

Yes
Master (outer) case width

342 mm
Master (outer) case height

232 mm

Brand

Aten
