ATEN USB VGA KVM Extender (150m)
Lock Added: N/A
This item is currently unavailable for next day delivery, however you may still order this item as a back-order?
USB KVM Extender up to 150m(CAT5) with Auto Signal Compensation ( ASC )
Related products
-
ATEN MINI USB VGA KVM Extender (100m)
Part No:CE100exc VAT£124.53£149.44inc VATIn stock
11 available
-
-
ATEN CE100-AT-E KVM extender Transmitter & receive
Part No:CE100-AT-Eexc VAT£117.98£141.58inc VATIn stock
6 available
-
Description

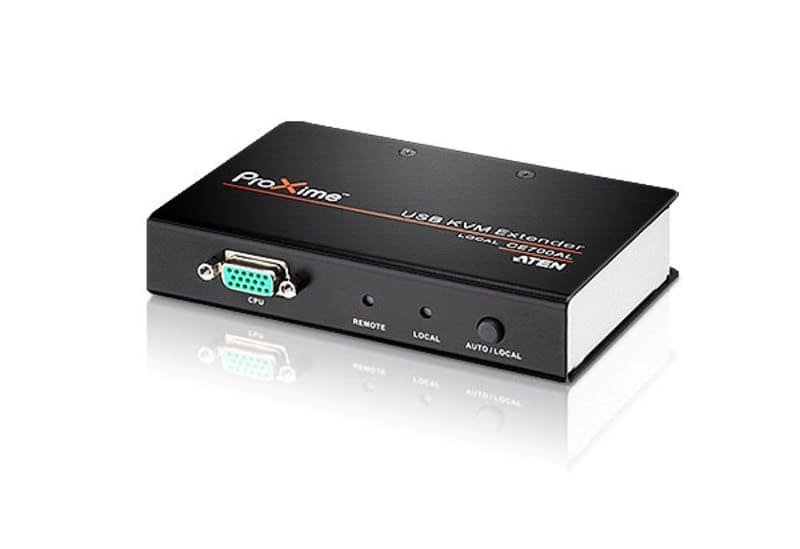

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
1x CE700AL USB KVM Extender (Local Unit)
1x CE700AR USB KVM Extender (Remote Unit)
2x 0AD6-1605-09EG Power Adapters
1x USB KVM Cable (1.8m)
1x Mounting Kit
1x User Instructions
| Feature | Feature Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5e |
| Rack mounting | Yes |
| Supported resolutions | 1920 x 1200, 1600 x 1200, 1280 x 1024 |
| Product colour | Black, Grey |
| Material | Metal |
| LED indicators | Link, Power |
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| AC adapter output voltage | 5.3 V |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Storage relative humidity (H-H) | 0 – 80% |
| Transmitter width | 12.7 cm |
| Transmitter depth | 8.65 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 330 g |
| Receiver width | 12.7 cm |
| Receiver depth | 8.14 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 320 g |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.41 kg |
| Weight | 1.14 kg |
| Manual | Yes |
| Quick installation guide | Yes |
| Master (outer) case net weight | 5.67 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.86 kg |
| Products per master (outer) case | 5 pc(s) |
