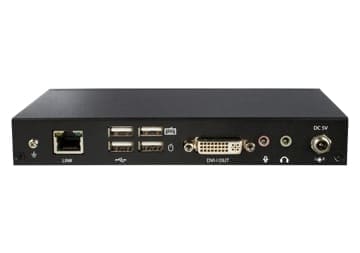

Raritan C5R-DVI-HD-RX KVM extender Receiver

Part No:

C5R-DVI-HD-RX

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£398.80
£478.56
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Be quick, last one left in stock!
1 in stock.

Cat5/Cat6e KVM receiver, support USB keyboard, mouse, USB peripherals, DVI-D, audio, serial and EDID emulation

1 in stock (can be backordered)

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: C5R-DVI-HD-RX Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Raritan

Related products

Description

over Cat5 provides 1080p HD video quality while enabling remote access to DVI and VGA ports on PCs, servers or KVM switches. The remote user console (USB keyboard, USB mouse, video and audio control) can be located from 100 meter/330 feet to 1,000 meter/3,300 feet away from the remote device (via Ethernet switch daisy-chaining); enabling storage in separate, secure, non-harsh environments. The solution also provides support for speakers and microphones.

Minimize your risk, store your PCs, servers or KVM switches in secure, non-harsh environments, while still having remote access and control. Support for a wide range of configurations and Raritan KVM switches.

Superior Video Resolution
Up to 1920×1200 high definition video resolution and video sharing to multiple receivers via Ethernet switches.

Local and Remote Console Access
Dual console support enables local and remote control up to 330 feet via a single Cat5 cable (3,300 feet via daisy-chained Ethernet switches) away from the remote device.

Broadcasting Connections
One transmitter can be connected to multiple receivers so that more than one remote user can view the computer or audio/video device connected to the transmitter. This is for broadcasting applications such as demo room or show room.

Multiple Connections
The remote user console supports USB keyboard, USB mouse, USB peripherals, DVI/VGA video, audio speaker, microphone, EDID emulation, and a serial device.

Feature Feature Value
Type Receiver
Connectivity technology Wired
Maximum transfer distance 1000 m
Cable types supported Cat5, Cat5e, Cat6
Product colour Black
LED indicators Yes
Receiver local video port type DVI-I
Receiver local keyboard/mouse port type USB
RS-232 ports 1
AC input voltage 110 – 240 V
AC input frequency 50 – 60 Hz
Input current 0.6 A
AC adapter output voltage 5 V
AC adapter output current 3 A
Power consumption (receiver) (max) 3.35 W
Receiver width 18 cm
Receiver depth 9 cm
Receiver height 2.8 cm
Receiver weight 379 g
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Harmonized System (HS) code 84733080

Additional information

Type

Receiver
Maximum transfer distance

1000 m
Product colour

Black
RS-232 ports

1
AC input frequency

50/60 Hz
AC adapter output voltage

5 V
Receiver depth

9 cm
Receiver weight

379 g
Storage temperature (T-T)

-20 – 60 °C
Connectivity technology

Wired
Cable types supported

Cat5, Cat5e, Cat6
LED indicators

Yes
AC input voltage

110 – 240 V
Input current

0.6 A
AC adapter output current

3 A
Receiver width

18 cm
Receiver height

2.8 cm
Operating temperature (T-T)

0 – 50 °C
Harmonized System (HS) code

84733080
