Description

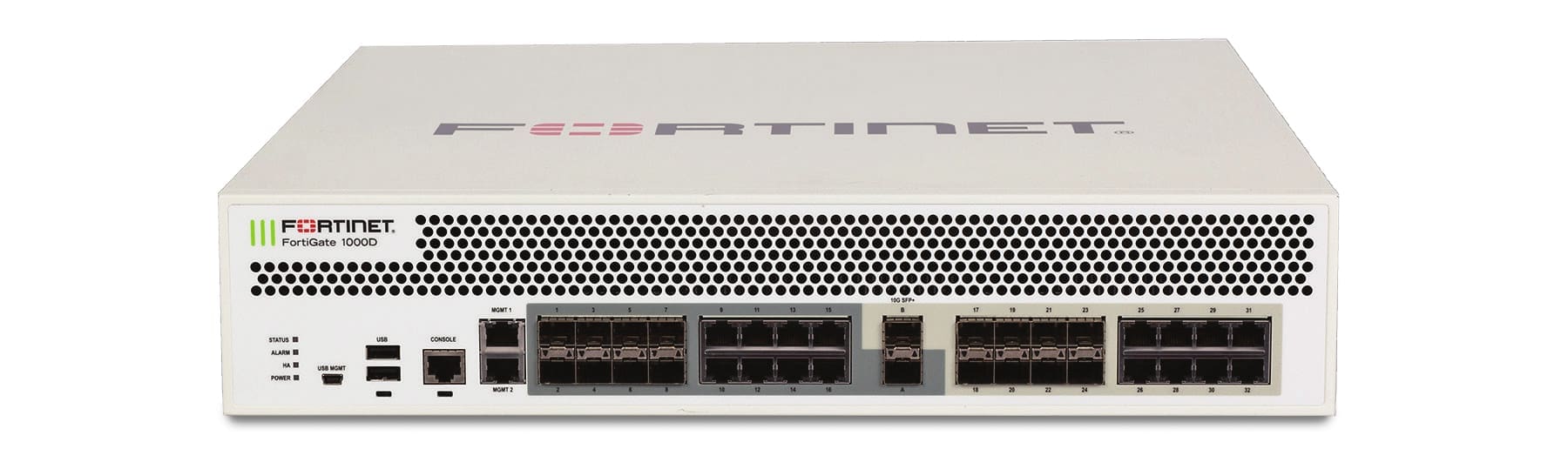

FortiGate High-Performance Next-Generation Firewalls
The FortiGate high end next-generation firewalls protect your network and data center against advanced threats with the industry’s best threat protection and price performance. FortiGate high end series features purpose-built security processor innovation to deliver uncompromising security and performance with superior SSL inspection and NGFW performance for the edge, data center and internal segments.
FortiGate High-End Next-Generation Firewalls include:
– Industry-leading security effectiveness with advanced IPS and SSL capabilities
– Top-rated protection tested by NSS Labs, Virus Bulletin, and AV Comparatives
– Deep visibility and granular control of applications, devices, and users
– Flexible high-speed network interfaces for future-proof connectivity
– Simplified, easy-to-manage, layered security services
– Actionable reports to enforce policies, understand targeted threats, and meet compliance
| Feature |
Feature Value |
| Firewall throughput |
52000 Mbit/s |
| VPN throughput |
25000 Mbit/s |
| IPS/IDS throughput |
9000 Mbit/s |
| SSL performance |
4000 transactions/sec |
| HTTP performance |
14000 transactions/sec |
| Built-in processor |
Yes |
| Heat dissipation |
753.4 BTU/h |
| Concurrent users |
10000 user(s) |
| Noise level |
53.3 dB |
| VPN tunnels quantity |
100000 |
| Number of users |
10000 user(s) |
| Security algorithms |
SHA-256 |
| Firewall security |
UDP |
| LED indicators |
Yes |
| Management platform |
FortiOS |
| Web-based management |
Yes |
| On/off switch |
Yes |
| Connectivity technology |
Wired |
| Gigabit Ethernet (copper) ports quantity |
34 |
| USB 2.0 ports quantity |
2 |
| Serial ports quantity |
1 |
| WAN connection |
Ethernet (RJ-45) |
| Ethernet DMZ ports quantity |
2 |
| SFP+ module slots quantity |
2 |
| Total storage capacity |
256 GB |
| Rack mounting |
Yes |
| Form factor |
2U |
| AC input voltage |
100-240 V |
| AC input frequency |
50 – 60 Hz |
| Input current |
5 A |
| Power consumption (typical) |
153 W |
| Peak power |
220.8 W |
| Number of power supply units |
1 |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-35 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating altitude |
0 – 2250 m |
| Width |
437 mm |
| Depth |
456 mm |
| Height |
88.5 mm |
| Weight |
11.2 kg |
