Description

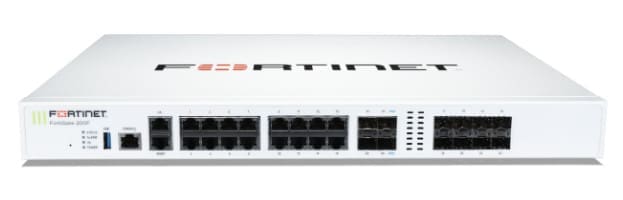

The FortiGate 200F series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industry- leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
| Feature |
Feature Value |
| Firewall throughput |
27000 Mbit/s |
| VPN throughput |
2000 Mbit/s |
| IPS/IDS throughput |
5000 Mbit/s |
| Maximum firewall connections |
3000000 |
| Maximum firewall connections per second |
280000 |
| Firewall latency |
4.78 µs |
| Default number of virtual firewalls |
10 |
| Maximum number of virtual firewalls |
10 |
| Built-in processor |
No |
| Wi-Fi |
No |
| Security algorithms |
256-bit AES, SHA-256 |
| Firewall security |
Y |
| LED indicators |
Yes |
| Management platform |
FortiOS |
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
16 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Console port |
RJ-45 |
| Number of console ports |
1 |
| SFP+ module slots quantity |
4 |
| Installed SFP+ modules quantity |
4 |
| Rack mounting |
Yes |
| Form factor |
1U |
| AC input voltage |
100-240 V |
| AC input frequency |
50 – 60 Hz |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-35 – 70 °C |
| Operating relative humidity (H-H) |
20 – 90% |
| Width |
432 mm |
| Depth |
342 mm |
| Height |
44 mm |
