Description

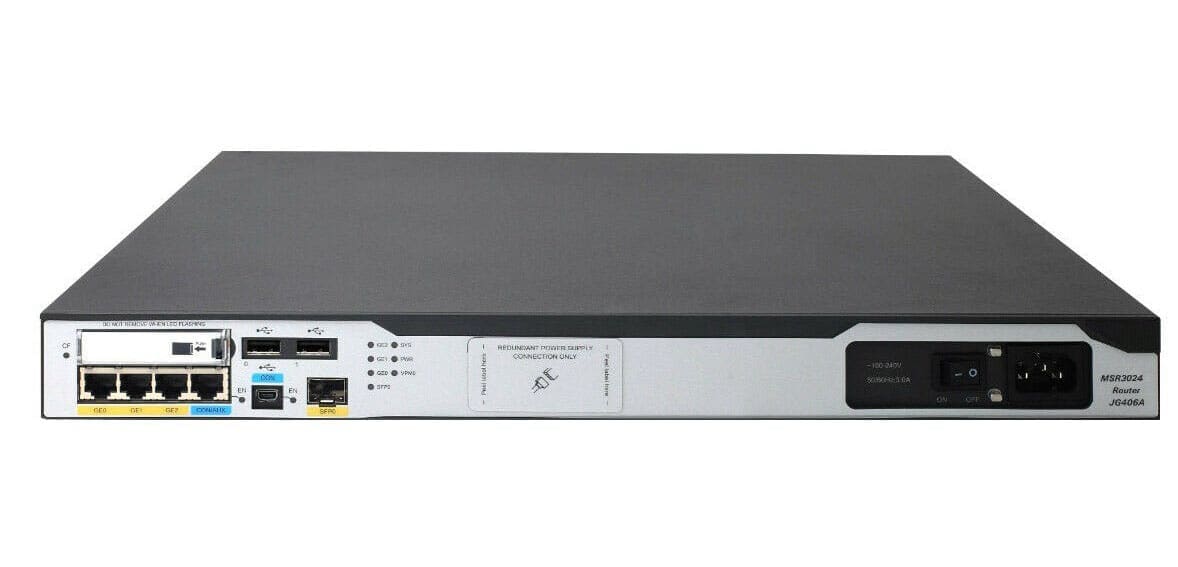

The HPE MSR3000 Router Series feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services.
With the Open Application Platform module, the MSR3000 Router Series offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches.
The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.
Features
Reduces Complexity and Simplifies Your Network
– The HPE MSR3000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.
– Makes administration easier with HPE Intelligent Management Center (IMC) Software.
– Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.
Enhances Time to Service and Branch Performance
– The HPE MSR3000 Router Series offers high performance routing with up to 13 Mpps forwarding and 14.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
– Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
– Satisfies medium to large branches with advanced hardware architecture and high port density.
Increases Your Return on Investment
– The HPE MSR3000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs.
– Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
– Deploy advanced features with no additional licensing.
Boosts Agility and Resiliency
– The HPE MSR3000 Router Series provides Open Application Platform module that supports HPE Alliance One applications such as WAN acceleration and Microsoft Skype for Business (Lync).
– Delivers an open standards approach to your network infrastructure.
– With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.
| Feature |
Feature Value |
|---|
| Ethernet WAN |
Yes |
| 3G/4G USB modem compatibility |
Yes |
| SFP WAN |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3 |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| VLAN support |
Yes |
| Multicast support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 3G standards |
HSPA, WCDMA |
| 4G standard |
LTE |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| SFP module slots quantity |
2 |
| Smart Interface Card (SIC) slots quantity |
4 |
| Routing protocols |
BGP4, OSPF, RIP-2, RIPng, VRRP |
| Management protocols |
SNMPv1, SNMPv2, SNMPv3 |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Security algorithms |
128-bit AES, 192-bit AES, 256-bit AES |
| Authentication method |
TACACS+, RADIUS |
| Access Control List (ACL) |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
1200 MHz |
| Flash memory |
512 MB |
| Internal memory |
2048 MB |
| Internal memory type |
DDR3 |
| Heat dissipation |
127 BTU/h |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Power consumption (typical) |
100 W |
| Power source type |
AC |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50/60 Hz |
| Operating temperature (T-T) |
0 – 45 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating altitude |
0 – 5000 m |
| Width |
439 mm |
| Depth |
361 mm |
| Height |
43 mm |
| Weight |
4.5 kg |
