Description

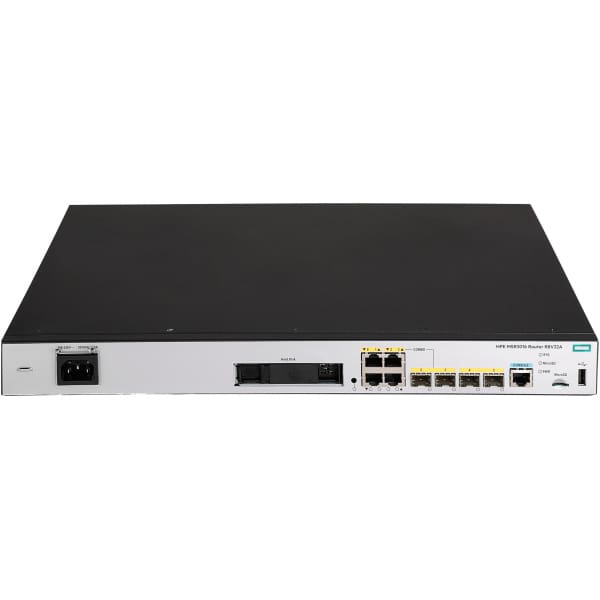

The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.
What is new supporting point:
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
Additional features such as ADVPN and hierarchical QoS.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
High-density voice modules and channelized POS access to cover.
| Feature |
Feature Value |
| Ethernet WAN |
Yes |
| 3G/4G USB modem compatibility |
Yes |
| SFP WAN |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3 |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| VLAN support |
Yes |
| Multicast support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 3G standards |
HSPA, WCDMA |
| 4G standard |
LTE |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| SFP module slots quantity |
2 |
| Smart Interface Card (SIC) slots quantity |
4 |
| Routing protocols |
BGP4, OSPF, RIP-2, RIPng, VRRP |
| Management protocols |
SNMPv1, SNMPv2, SNMPv3 |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Security algorithms |
128-bit AES, 192-bit AES, 256-bit AES |
| Authentication method |
TACACS+, RADIUS |
| Access Control List (ACL) |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
1200 MHz |
| Flash memory |
512 MB |
| Internal memory |
2048 MB |
| Internal memory type |
DDR3 |
| Heat dissipation |
127 BTU/h |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Power consumption (typical) |
100 W |
| Power source type |
AC |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50/60 Hz |
| Operating temperature (T-T) |
0 – 45 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating altitude |
0 – 5000 m |
| Width |
439 mm |
| Depth |
361 mm |
| Height |
43 mm |
| Weight |
4.5 kg |
