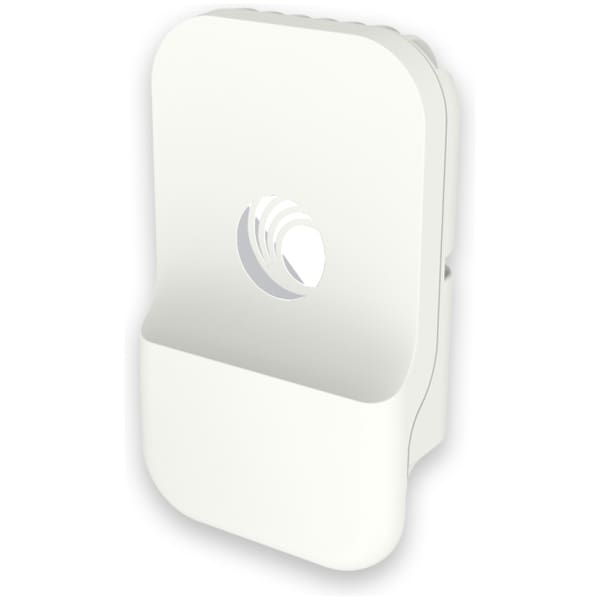

Cambium Networks 60GHz cnWave V1000 network antenna 22.5 dBi

Part No:
C600500C003A
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

60GHz cnWave V1000 Client Node with EU cord

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: C600500C003A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Cambium Networks

Related products

Description

60 GHz cnWave V1000
The V1000 is optimized for easy installation and rapid deployment in residential and small business applications. The V1000 millimeter wave module can be deployed as a point-to-point (PTP) link or in a point-to-multipoint (PTMP) distribution network to provide multi-gigabit wireless connectivity.

Multi-Gigabit Fixed Wireless
Cambium Networks’ millimeter wave 60 GHz cnWave solution provides easy, fast and cost-effective wireless multi-gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower total cost of ownership (TCO) than fiber infrastructure. Service providers and enterprises now have access to multi-gigabit wireless for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell.

Configurable for point-to-point (PTP) links or point-to-multipoint (PTMP) wide-area networks. These millimeter wave solutions can be rapidly deployed at street level.

Certified for Facebook Terragraph technology, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

The millimeter wave V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

Cloud and On-Premise Management
60 GHz cnWave operates with Cambium Networks’ cnMaestro™ management system. cnMaestro is a cloud-based or on-premises software platform for secure, end-to-end network control.

cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.

Feature Feature Value
Antenna gain level (max) 22.5 dBi
Frequency band 57 – 66 GHz
Networking standards IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p
Cabling technology 10/100/1000Base-T(X)
Modulation 16-QAM, BPSK
Horizontal beam width 12°
Vertical beam width 12°
Product colour White
International Protection (IP) code IP66, IP67
Survival wind speed 200 km/h
Mounting Wall/Pole
Purpose Outdoor
Power source type PoE
Power consumption (max) 10 W
Operating temperature (T-T) -40 – 60 °C
Width 85 mm
Depth 40 mm
Height 140 mm
Weight 250 g
Quantity per pack 1 pc(s)

Additional information

Antenna gain level (max)

22.5 dBi
Networking standards

IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p
Modulation

16-QAM, BPSK
Vertical beam width

12°
Mounting

Wall/Pole
Power source type

PoE
Operating temperature (T-T)

-40 – 60 °C
Depth

40 mm
Weight

250 g
Frequency band

57 – 66 GHz
Cabling technology

10/100/1000Base-T(X)
Horizontal beam width

12°
Product colour

White
Survival wind speed

200 km/h
Purpose

Outdoor
Power consumption (max)

10 W
Width

85 mm
Height

140 mm
Quantity per pack

1 pc(s)

Brand

Cambium Networks
