Ventev M040030D33620JB6 network antenna Directional antenna RP-TNC 6 dBi

Part No:
M040030D33620JB6
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

In Stock - Available Now

Ventev M040030D33620JB6 network antenna Directional antenna RP-TNC 6 dBi

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: M040030D33620JB6 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Ventev Logo

Related products

Description

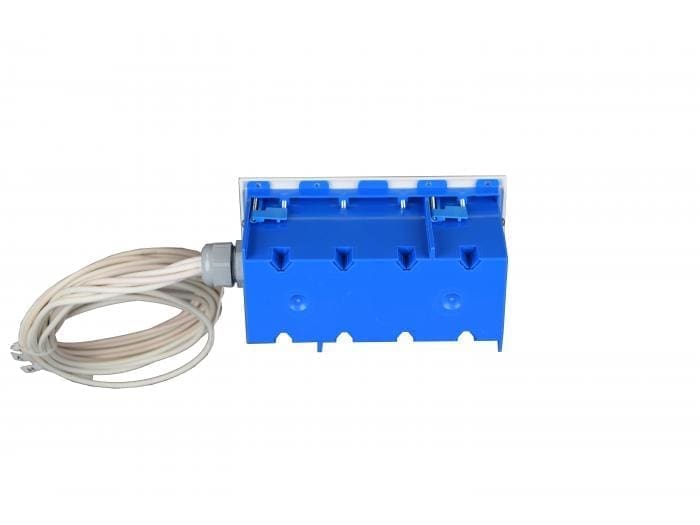

Ventev’s TerraWave 2.4/5 GHz 5/6 dBi Directional Wi-Fi Junction Box Antenna with 6 RPSMA plugs is concealed within a standard four-gang electrical box, and is designed to operate with any manufacturer’s 6-lead 802.11ac Waves I & II WLAN access points. The antenna’s cover plate looks like a standard junction box cover, providing building managers, IT network operators, and building architects with an aesthetically appealing Wi-Fi antenna that will blend into existing room décor for “out of sight” coverage and capacity. The antenna is designed to be installed within a dry wall cut-out or drop ceiling tile where the 6’ leads can connect to a nearby access point. The directional antenna provides 0– 45 degree articulation for excellent coverage and capacity in one or more rooms. Every TerraWave antenna is RoHS compliant, and is covered by Ventev’s two-year TerraNet warranty program. For more information: 800-851-4965 or sales@ventev.com or visit www.ventev.com/infra.

Feature Feature Value
Antenna gain level (max) 6 dBi
Frequency band 2.4 – 5 GHz
Networking standards IEEE 802.11ac
Gain 5 / 6 dBi
Impedance 2 Ω
Horizontal beam width 75°
Vertical beam width 75°
Antenna type Directional antenna
Antenna connector type RP-TNC
Power handling 20 W
Mounting Wall
Purpose Indoor
Product colour White
Compliance certificates RoHS
Weight 680 g
Quantity per pack 1 pc(s)
