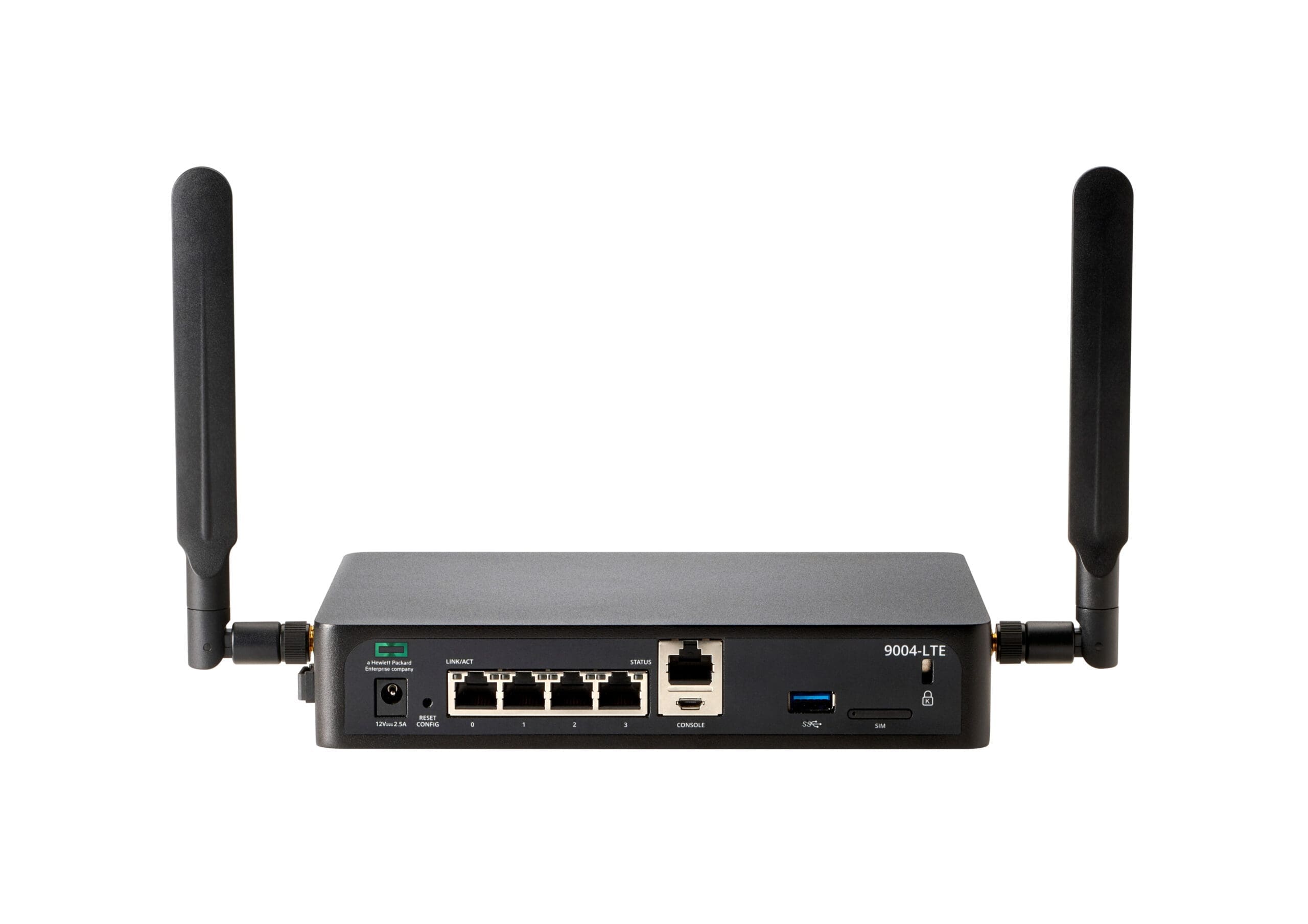

HPE Aruba Networking 9004 (EG) 4-Port 10/100/1000BASE-T LTE 2K Clients – 32 APs Branch Gateway

Part No:

R3V87A

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£1,346.85
£1,616.22
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

ARUBA 9004 (EG) LTE BRANCH GATEWAY

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: R3V87A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
HPE

Related products

Description

HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.

What is new supporting point:
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.

Feature Feature Value
Product colour Black
Mounting type Desktop/Rack mounting
LED indicators LAN, Status, System, WAN
Antenna type External
Antenna connector type SMA
Antennas quantity 2
GPS (satellite) Yes
Control display unit No
DHCP client Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
4G LTE category 12
Mobile network generation 4G
Data network LTE
Downlink/uplink speed 600/150 Mbit/s
Number of concurrent sessions (max) 2048
Firewall throughput 4000 Mbit/s
3DES/AES throughput 4 Gbit/s
Access Control List (ACL) Yes
VLAN support Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Console port micro USB, RJ-45
Number of console ports 2
Ethernet LAN (RJ-45) ports 4
Power consumption (max) 25 W
Input voltage 12v DC, 2.5A AC-to-DC power adapter
Input frequency 47 – 63 Hz
Output voltage 12 V
Output current 2.5 A
DC input voltage 12 V
Width 38.2 mm
Depth 199 mm
Height 153 mm
Weight 1.24 kg
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 90%
Storage relative humidity (H-H) 10 – 95%
Certification None

Additional information

Product colour

Black
LED indicators

LAN, Status, System, WAN
Antenna connector type

SMA
GPS (satellite)

Yes
DHCP client

Yes
4G LTE category

12
Data network

LTE
3DES/AES throughput

4 Gbit/s
VLAN support

Yes
Console port

micro USB, RJ-45
Ethernet LAN (RJ-45) ports

4
Input voltage

12v DC, 2.5A AC-to-DC power adapter
Output voltage

12 V
DC input voltage

12 V
Depth

199 mm
Weight

1.24 kg
Storage temperature (T-T)

-40 – 70 °C
Mounting type

Desktop/Rack mounting
Antenna type

External
Antennas quantity

2
Control display unit

No
Ethernet LAN data rates

10,100,1000 Mbit/s
Mobile network generation

4G
Downlink/uplink speed

600/150 Mbit/s
Firewall throughput

4000 Mbit/s
Access Control List (ACL)

Yes
Number of console ports

2
Power consumption (max)

25 W
Input frequency

47 – 63 Hz
Output current

2.5 A
Width

38.2 mm
Height

153 mm
Operating temperature (T-T)

0 – 40 °C
Certification

None

Brand

HPE
