Description

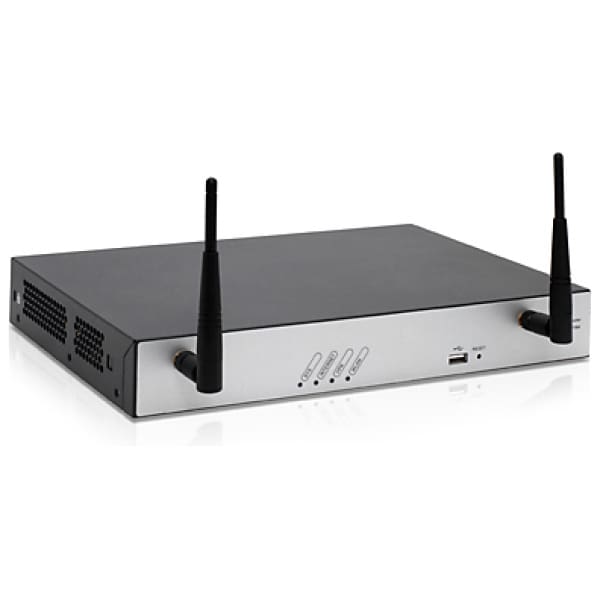

The HP MSR93x Router Series delivers a high-performance small-branch router providing integrated routing, switching, security, SIP, 802.11n WLAN connectivity, and 4G LTE/3G in a single unit. With its Converged Infrastructure, it enables faster time to service and enhanced performance while simplifying your network through a single management screen and zero-touch deployment.
The MSR93x increases flexibility and agility, delivering extensive connectivity capabilities in a compact, fixed form factor. The MSR93x is based on open standards for seamless integration within small-branch deployment.
Features
Enhanced Time to Service and Branch Performance
The HP MSR93x Router Series offers high performance routing with 300 kpps forwarding.
Comprehensive feature set enables branch services that fit your needs, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN.
Integrated security eases the transition to the cloud.
Reduces Complexity and Simplifies Your Network
The HP MSR93x Router Series provides a Converged Infrastructure (CI) with integrated routing/switching/security/SIP.
Reduce total cost of ownership (TCO) through open standards, power and space savings, and energy-efficient hardware.
A single screen with HP Intelligent Management Center (IMC) provides an easy-to-use interface for your administrator.
Zero-touch deployment makes router and VPN set up a breeze.
Common OS across routers delivers increased flexibility across all environments.
Increased Flexibility and Agility Across Your Network
The HP MSR93x Router Series delivers a wide range of connectivity options, including Gigabit Ethernet, Serial, ADSL2+, G.SHDSL, and wireless.
Extensive range of models and accessories enables the right design for your particular requirements.
Based on open standards for ease of network integration.
Strengthen Branch Resiliency with Enterprise-class Features
The HP MSR93x Router Series supports primary and failover 4GE LTE and 3G WAN connectivity enabling service survivability.
Enhanced 802.11n WLAN option provides high throughput.
| Feature |
Feature Value |
| Ethernet WAN |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| ADSL2+ |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Security algorithms |
128-bit AES, 192-bit AES, 256-bit AES, 3DES, 802.1x RADIUS, DES |
| Firewall |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| DHCP client |
Yes |
| DHCP server |
Yes |
| AC adapter included |
Yes |
| Built-in processor |
Yes |
| Processor architecture |
RISC |
| Processor frequency |
533 MHz |
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Heat dissipation |
20 BTU/h |
| AC input voltage |
100 – 240 V |
| Power consumption (typical) |
24 W |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
5 – 90% |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating altitude |
0 – 2000 m |
| Width |
300 mm |
| Depth |
200 mm |
| Height |
44.2 mm |
| Weight |
1.8 kg |
| Throughput |
300 Kpps |
| xDSL connection |
Yes |
