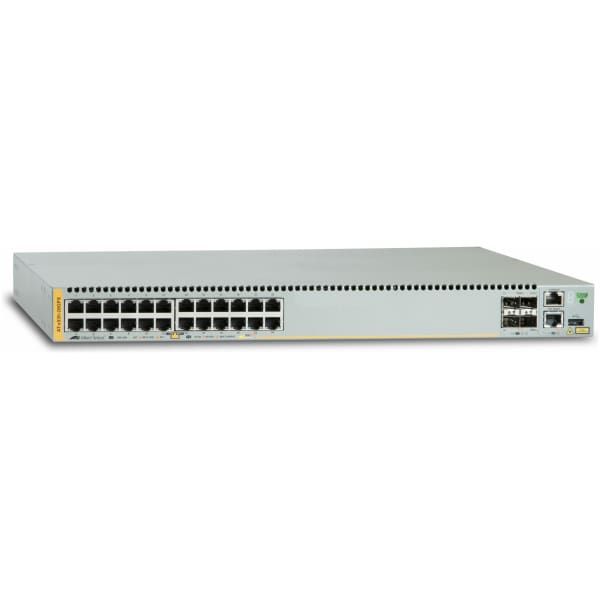

Allied Telesis AT-x930-28GPX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Part No:
AT-X930-28GPX
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£3,529.20
£4,235.04
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

Allied Telesis AT x930-28GPX – Switch – L3 – Managed – 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ – desktop, rack-mountable

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: AT-X930-28GPX Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Allied Telesis

Related products

Description

The Allied Telesis x930-28GPX features 24 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient solution. Long-distance stacking of up to 8 units supports distributed environments, and Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devices.

Feature Feature Value
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Traffic classification Yes
ARP inspection Yes
System event log Yes
MIB support Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 24
SFP+ module slots quantity 4
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
Copper ethernet cabling technology 100BASE-TX, 1000BASE-TX
Port mirroring Yes
Full duplex Yes
Routing entries 2000
Link aggregation Yes
Spanning tree protocol Yes
VLAN support Yes
Virtual LAN features Private VLAN
MAC address table 64000 entries
Switching capacity 2.88 Gbit/s
Throughput 214.3 Mpps
Latency (1 Gbps) 3.6 µs
Latency (10 Gbps) 2.6 µs
DHCP features DHCP server, DHCP client
IGMP snooping Yes
Security algorithms 802.1x RADIUS
Multicast support Yes
Multicast MAC address table 2000 entries
Rack mounting Yes
Stackable Yes
Product colour Grey
LED indicators Yes
Safety UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL
Expansion module support Yes
Noise level 56 dB
Firmware upgradeable Yes
AC input voltage 90 – 260 V
AC input frequency 47/63 Hz
Power consumption (typical) 84 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 24
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -25 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3048 m
Heat dissipation 301 BTU/h
Width 440 mm
Depth 420 mm
Height 44 mm
Weight 5.1 kg
Harmonized System (HS) code 85176990

Additional information

Switch type

Managed
Traffic classification

Yes
System event log

Yes
Networking standards
Full duplex

Yes
Link aggregation

Yes
VLAN support

Yes
MAC address table

64000 entries
Throughput

214.3 Mpps
Latency (10 Gbps)

2.6 µs
IGMP snooping

Yes
Multicast support

Yes
Rack mounting

Yes
Product colour

Grey
Safety

UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL
Noise level

56 dB
AC input voltage

90 – 260 V
Power consumption (typical)

84 W
Storage temperature (T-T)

-25 – 70 °C
Heat dissipation

301 BTU/h
Depth

420 mm
Weight

5.1 kg
Switch layer

L3
Web-based management

Yes
ARP inspection

Yes
MIB support

Y
SFP module slots quantity

4
10G support

Yes
Port mirroring

Yes
Routing entries

2000
Spanning tree protocol

Yes
Virtual LAN features

Private VLAN
Switching capacity

2.88 Gbit/s
Latency (1 Gbps)

3.6 µs
DHCP features

DHCP server, DHCP client
Security algorithms

802.1x RADIUS
Multicast MAC address table

2000 entries
Stackable

Yes
LED indicators

Yes
Expansion module support

Yes
Firmware upgradeable

Yes
AC input frequency

47 – 63 Hz
Power over Ethernet (PoE)

Yes
Operating temperature (T-T)

0 – 50 °C
Operating altitude

0 – 3048 m
Width

440 mm
Height

44 mm
Harmonized System (HS) code

85176990

Brand

Allied Telesis
