Description
Future Proof multi-Gigabit Ethernet interfaces
16 2.5GbE Ethernet ports improve your core network speed while using existing CAT 5E or later cable infrastructure. Ideal for Wi-Fi 6 access point connections such as the VigorAP 1060C.
Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features. Static Routes, VLAN Routing and Multi-subnet DHCP server connect separate networks through the VigorSwitch.
High Speed 10 Gigabit SFP+ Uplinks
4 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.
Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.
ONVIF IP Camera Surveillance Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.

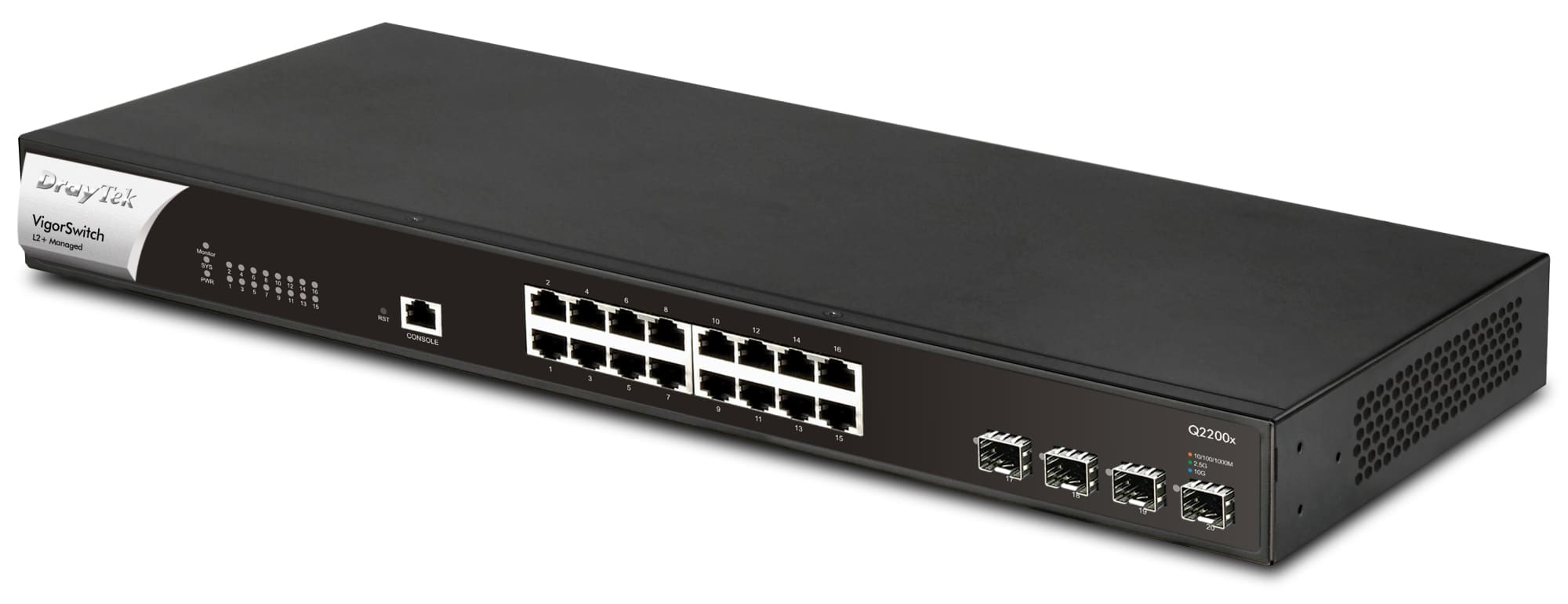

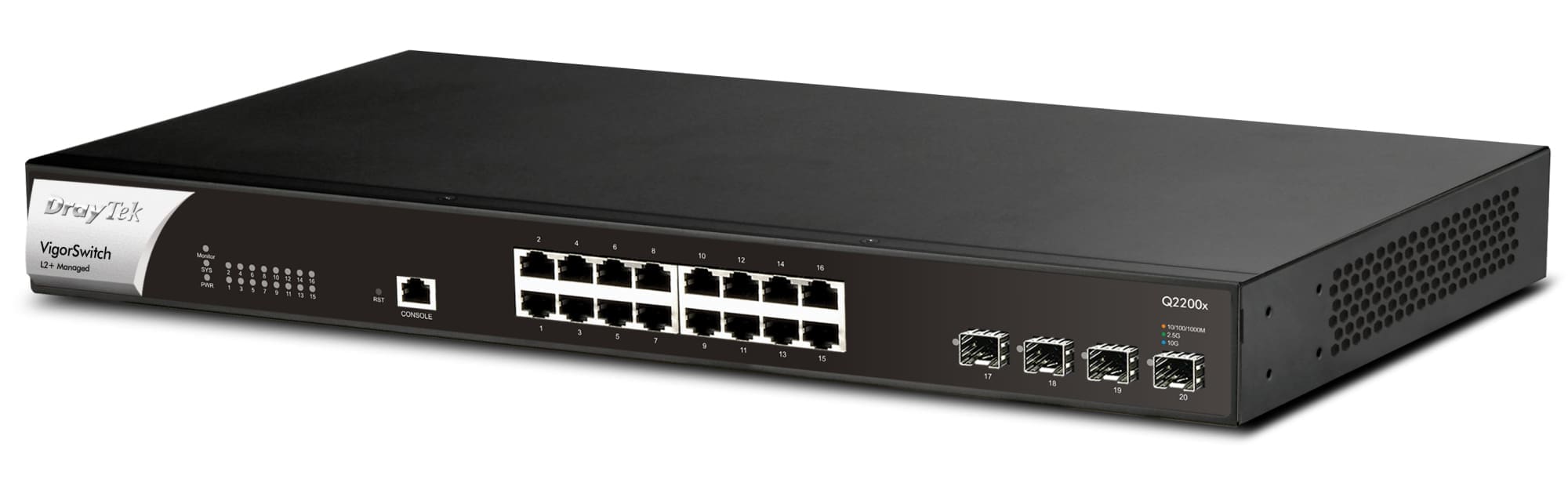

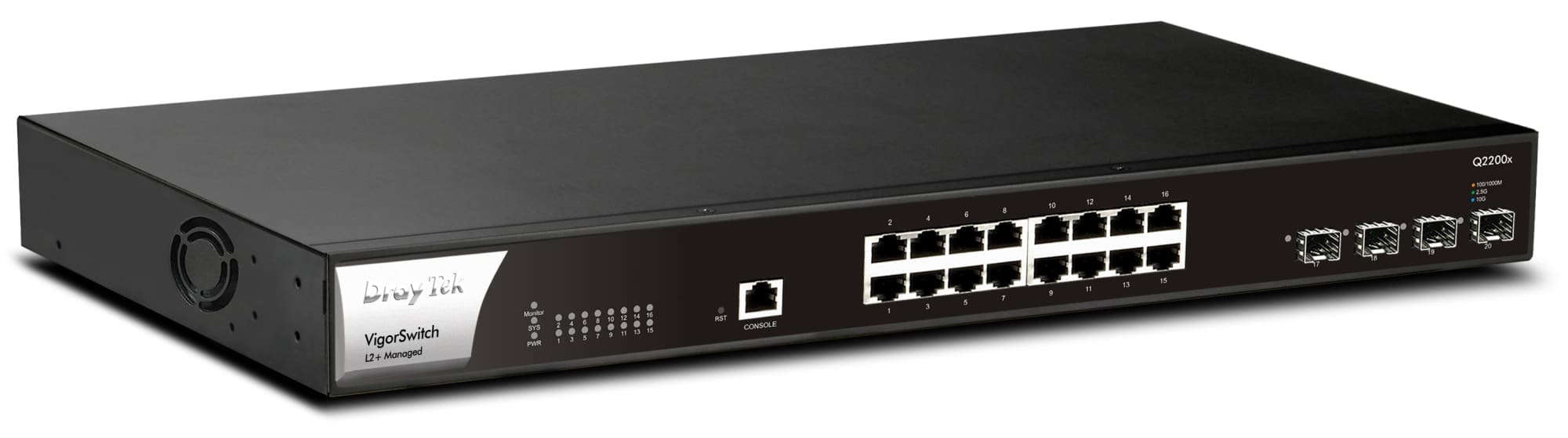

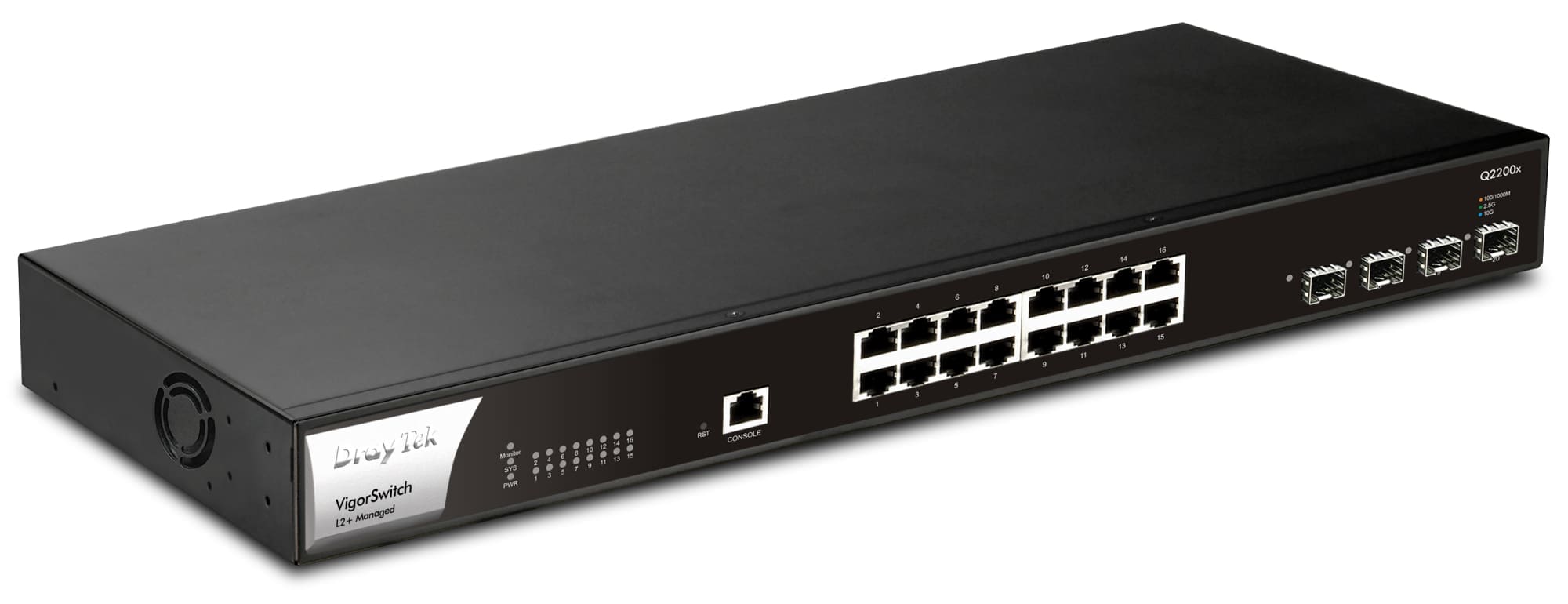

VigorSwitch Q2200x
16 Port 2.5 GbE and 4 Port 10Gbps SFP+ Switch
VigorSwitch Q2200x is a 2.5 Gigabit L2+ Managed switch with 16 2.5GbE ports, and 4 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as high speed access points, high bandwidth video or network attached storage.
Supported layer 3 features such as a DHCP Server and, VLAN Routing help with network stability and efficiency. The VigorSwitch Q2200x can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform, or, a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
| Feature |
Feature Value |
| Switch type |
Managed |
| Switch layer |
L2+ |
| Quality of Service (QoS) support |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| System event log |
Yes |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
4 |
| 2.5G Ethernet (copper) ports quantity |
16 |
| Console port |
RJ-45 |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Routing entries |
6000 |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Management VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs |
256 |
| MAC address table |
16000 entries |
| Switching capacity |
160 Gbit/s |
| Forwarding rate |
119.04 Mpps |
| Static route |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
12000 |
| Packet buffer memory |
12 MB |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type |
AAA, RADIUS, TACACS+ |
| Multicast support |
Yes |
| Number of multicast groups filtered |
256 |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| Reset button |
Yes |
| LED indicators |
Yes |
| Firmware upgradeable |
Yes |
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 – 240 V |
| Power consumption (max) |
45 W |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Width |
440 mm |
| Depth |
205 mm |
| Height |
44 mm |
| Weight |
2.8 kg |
| Cables included |
AC |
| Quick start guide |
Yes |
