Description
Security, Performance, and Manageability

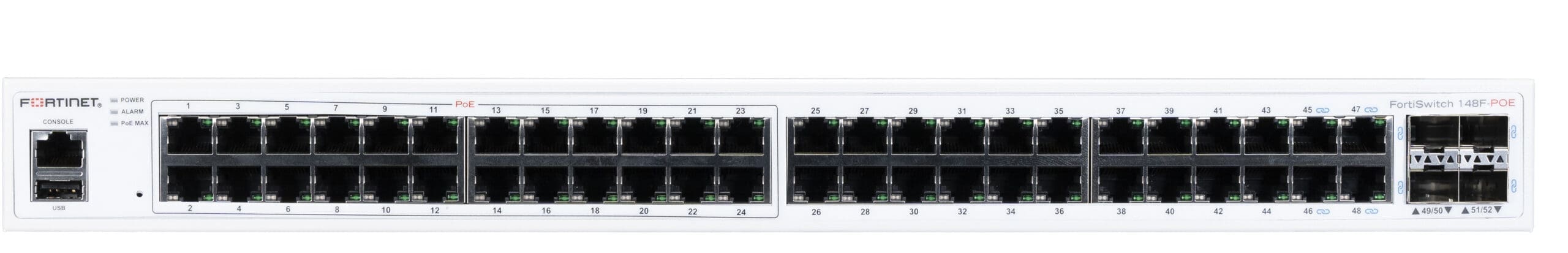

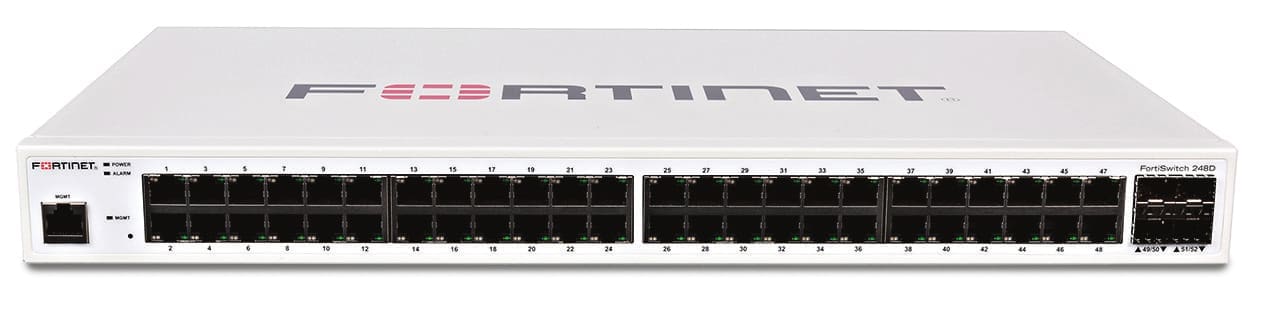

The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar
FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center
aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric.
This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.
| Feature |
Feature Value |
| Switch layer |
L2 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
48 |
| SFP+ module slots quantity |
4 |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| 10G support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| MAC address table |
32000 entries |
| Switching capacity |
176 Gbit/s |
| Throughput |
260 Mpps |
| Packet buffer memory |
2 MB |
| Access Control List (ACL) |
Yes |
| Access Control List (ACL) rules |
768 |
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
White |
| Certification |
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
| Memory type |
DDR3-SDRAM |
| Internal memory |
512 MB |
| Flash memory |
64 MB |
| Mean time between failures (MTBF) |
87660 h |
| Redundant power supply (RPS) support |
No |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (typical) |
474.8 W |
| Power consumption (max) |
476.3 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
370 W |
| Operating temperature (T-T) |
0 – 45 °C |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Heat dissipation |
195.73 BTU/h |
| Width |
440 mm |
| Depth |
310 mm |
| Height |
44 mm |
| Weight |
4.68 kg |
| Harmonized System (HS) code |
85176990 |
